Main Technical Parameters Table

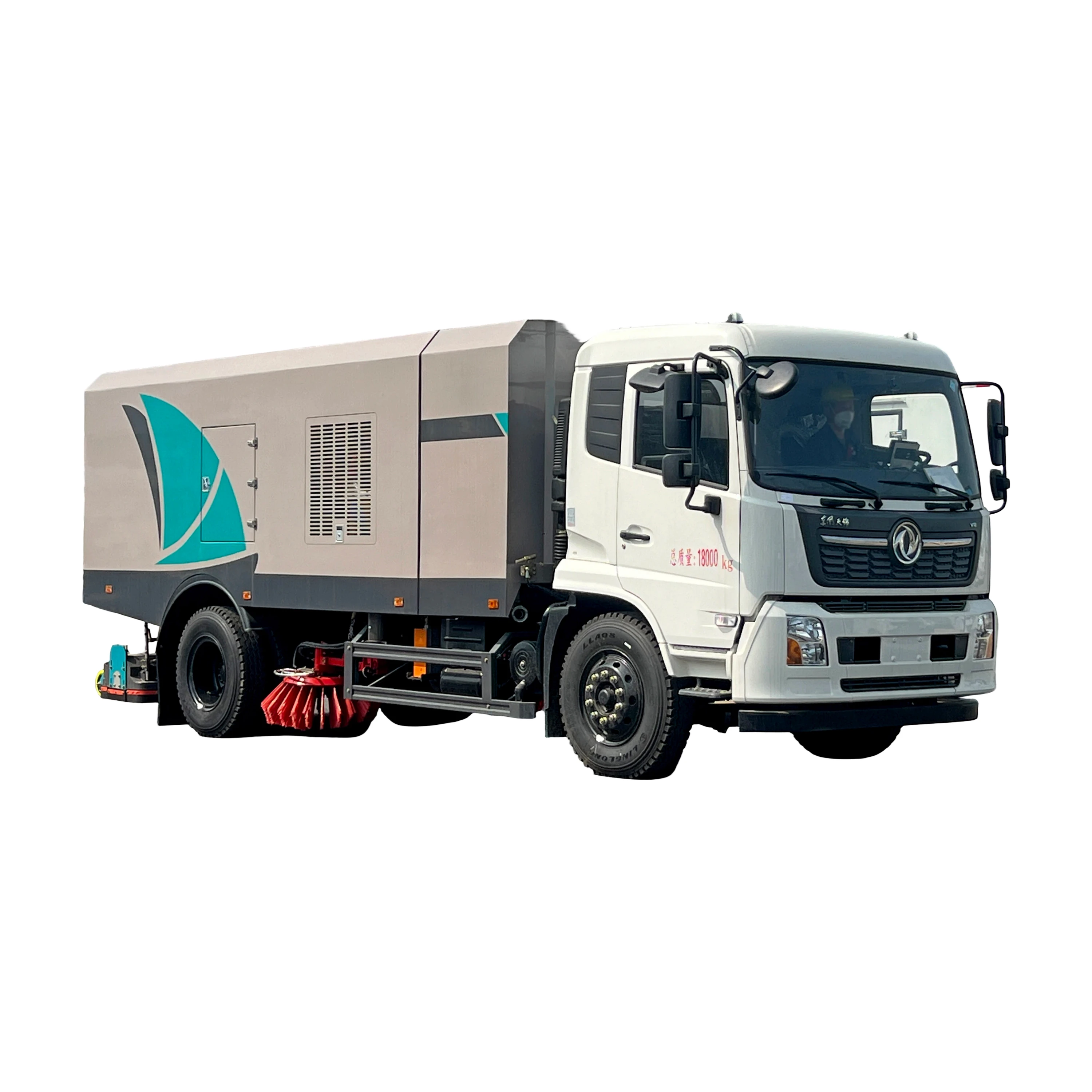

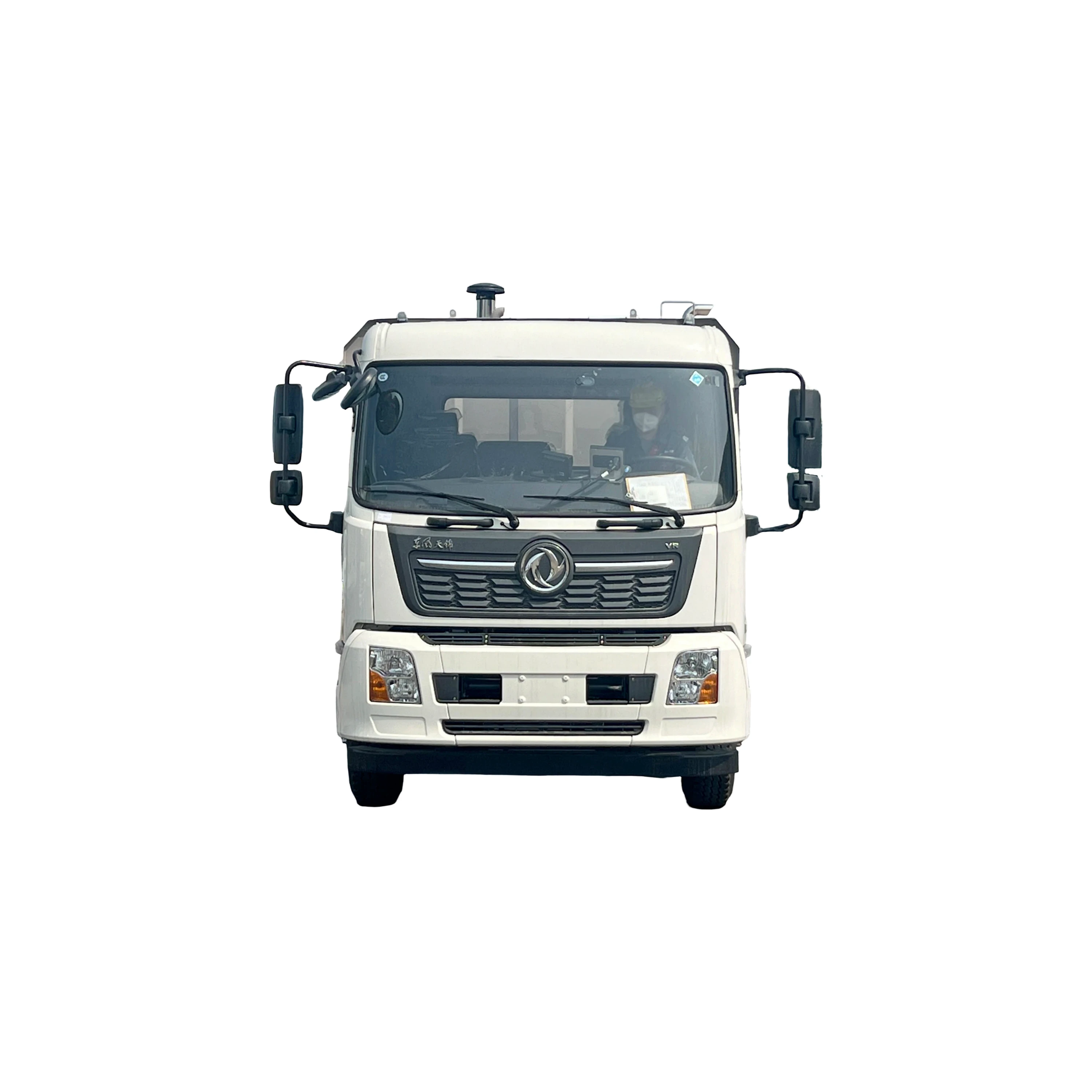

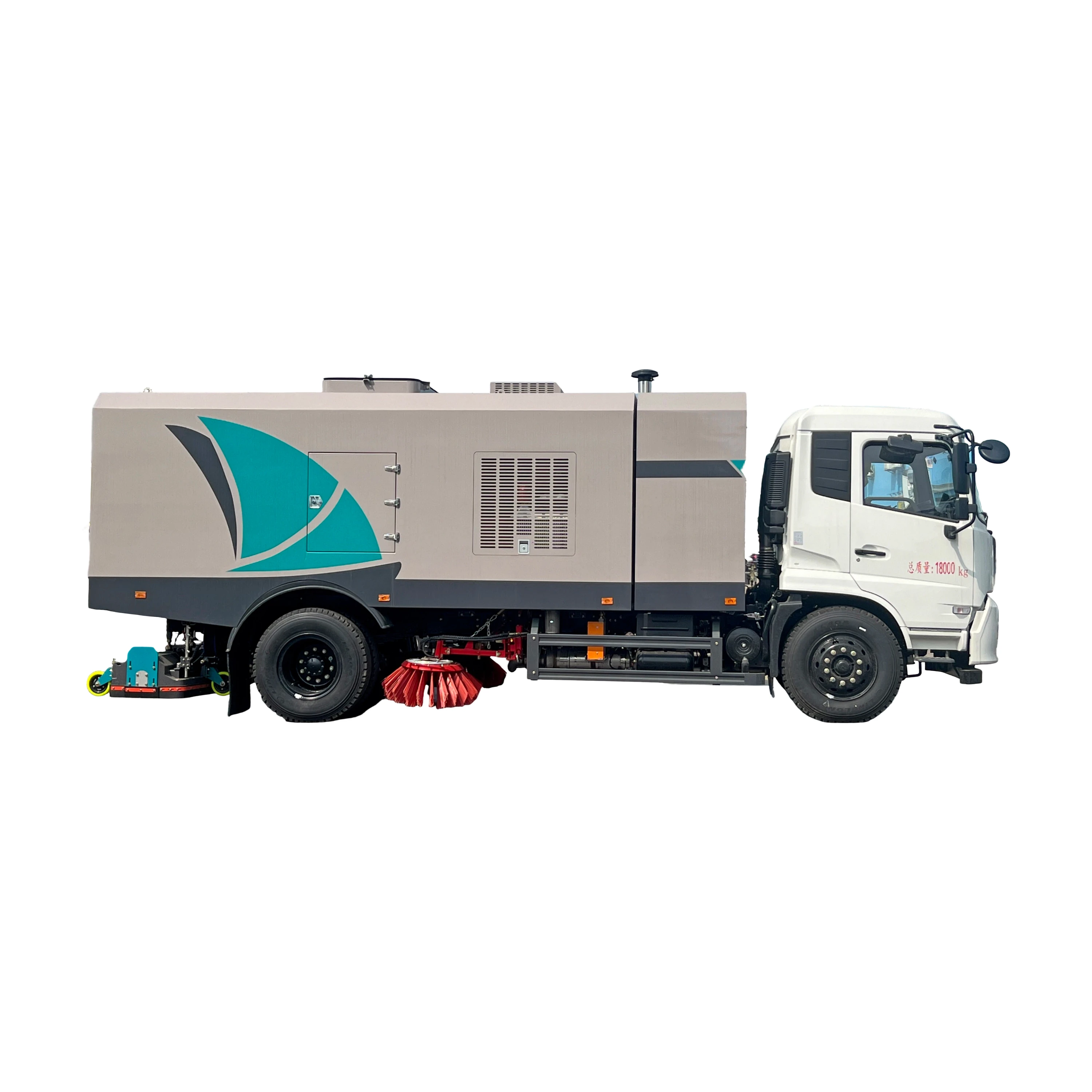

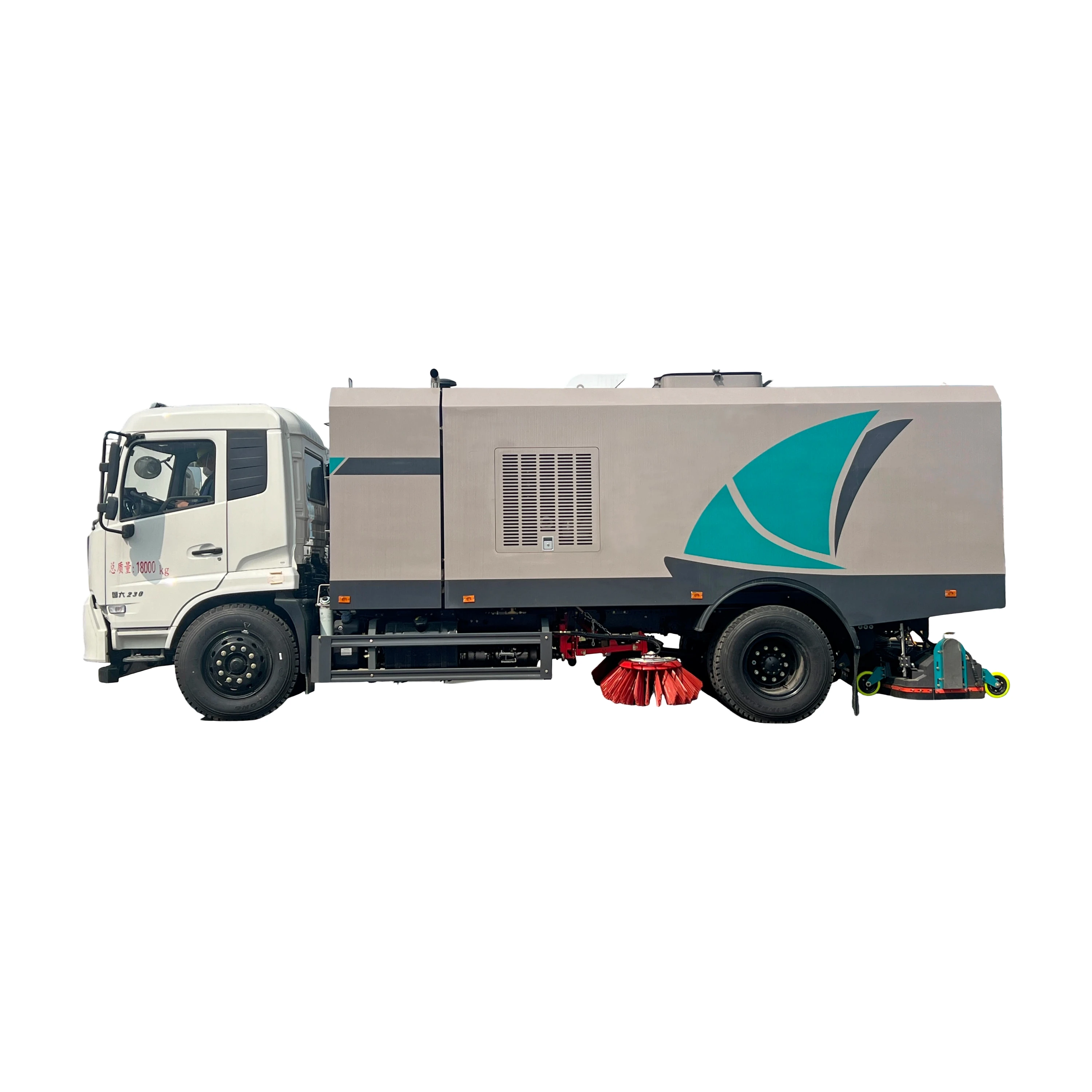

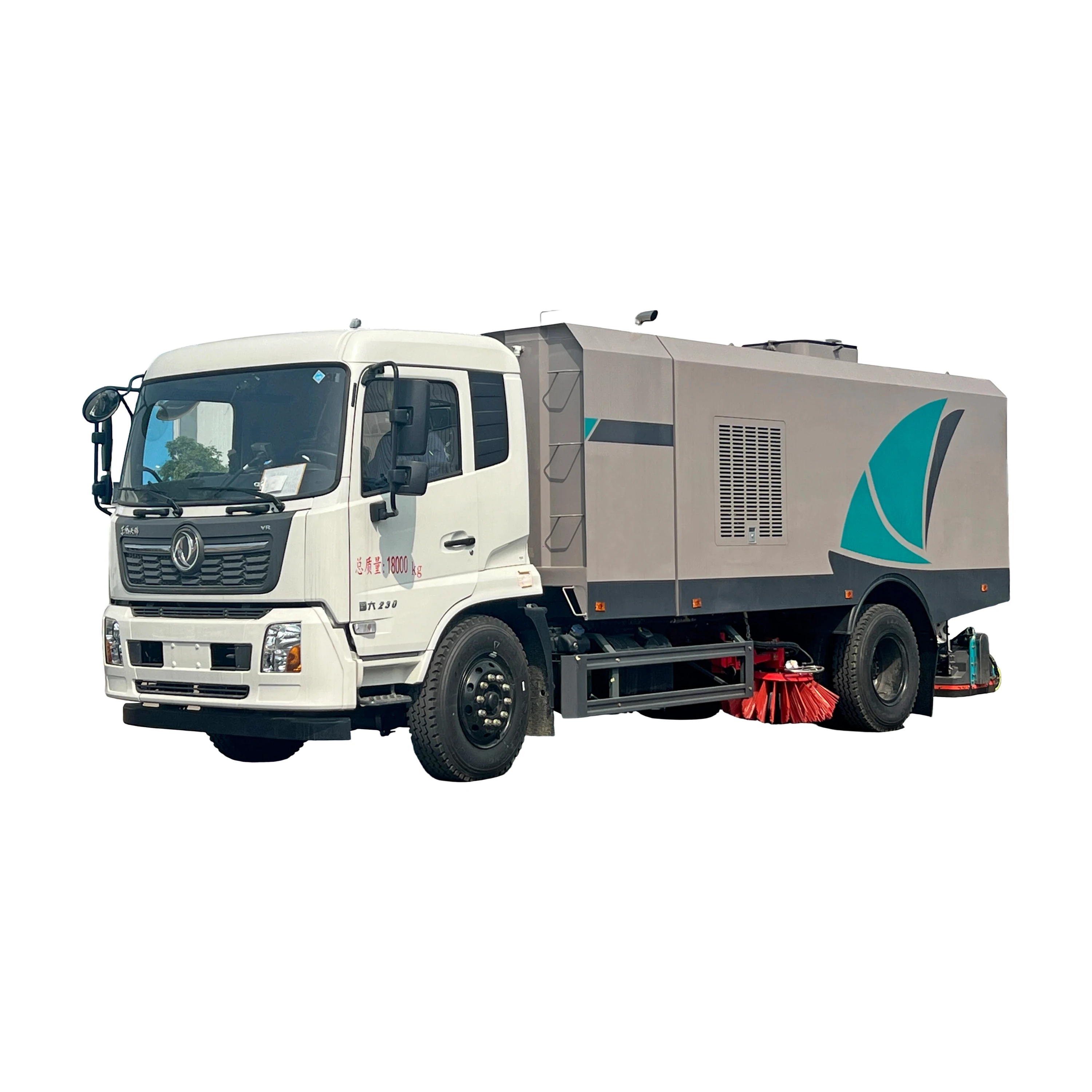

Full Vehicle Model

CL5180TXC6GX

Preparation Mass (kg)

10750、10350、11200

wheel base （mm）

4700

Rated load capacity (kg)

7120、7055、7520、7455、6670、6605

engine type

D6.7NS6B230 (Dongfeng Cummins)

Water Tank Capacity (m³)

2

effluent standard

National VI standard, diesel engine

Garbage Bin Capacity (m³)

8

Engine Power (Ps)

230

Maximum Cleaning Width (m)

2.8

Secondary Engine Horsepower (Ps)

Kangji 140,170 (optional)

Scanning Speed (km/h)

5-20

External Dimensions (Length × Width × Height) (mm)

8350×2550×3200

Cleaning Speed (km/h)

15-20

Front Suspension / Rear Suspension (mm)

1400/2550、1430/2520

Maximum Cleaning Capacity (m²/h)

19800-88000

Maximum Total Mass (kg)

18000

Work Mode

Available in dry and wet dual modes, equipped with a pipeline anti-freezing system, suitable for both northern and southern regions.

Operation Principle

Negative-pressure direct suction combined with an automatic pulse-vibration dust removal system for effective dust suppression and haze control at the source.

Transmission Configuration

Constant-speed suction sweeping control ensures smooth operation

Cleaning Effect

The cleanliness level can exceed 99%, with no secondary dust generation.

Spray System

The electric diaphragm pump drives the tail spray rod, automatically reducing dust after operation.

Case Structure

Square tank body constructed from high-quality steel with a thickened bottom plate and fully seamless welding, ensuring leak-proof performance, wear resistance, and corrosion resistance.

control monitor unit

Rear view camera on the vehicle body; large screen in the cab displays real-time operational status.

Nozzle Configuration

New rear suction nozzle with built-in rolling brush, suction port width: 2500 mm

emergency device

Manual emergency pump; allows the cabinet to be lifted in case of hydraulic system failure.

Scan / Scan and Clear

Brushes are installed on both sides to expand the cleaning range, enabling thorough cleaning of road edges and vertical surfaces.

power performance

High-power diesel engines with a power reserve exceeding 40% and excellent heat dissipation performance.

Core Fan

High-power wear-resistant, maintenance-free centrifugal fan with low noise, high air volume, and long service life

extensibility

The additional vacuum cleaning device can be freely assembled to suit various operating scenarios.

filter cartridge

Imported customized coated filter elements arranged in vertical columns, resistant to clogging and free from secondary dust generation.

Human equivalent

The workload of a single unit is equivalent to that of more than 40 cleaning workers.

hydraulic pressure system

The Hypris electromagnetic valve assembly enables stepless adjustment of operating speed and cabinet opening/closing speed.

Maintenance Requirements

The main and auxiliary engines share a common fuel tank; the fuel filter should be inspected and replaced regularly.

Electrical Control System

Integrated PLC-based electro-hydraulic centralized control with fault identification and alarm functions, supporting function pre-selection and fully automatic operation.

After-sales Service Policy

Free repairs for non-human-induced faults within one year, nationwide warranty coverage, lifetime maintenance, and 24/7 fault response.
