Main Technical Parameters Table

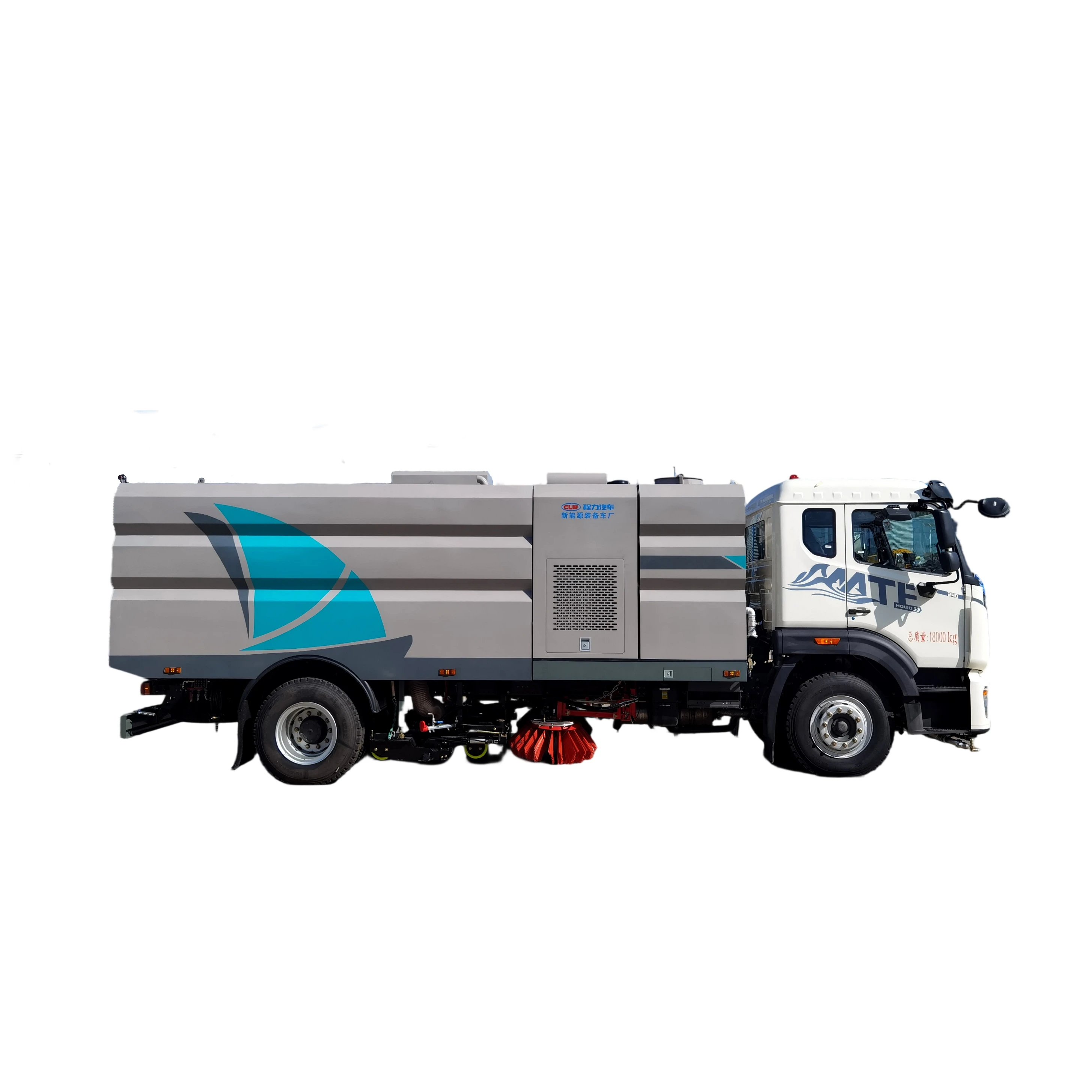

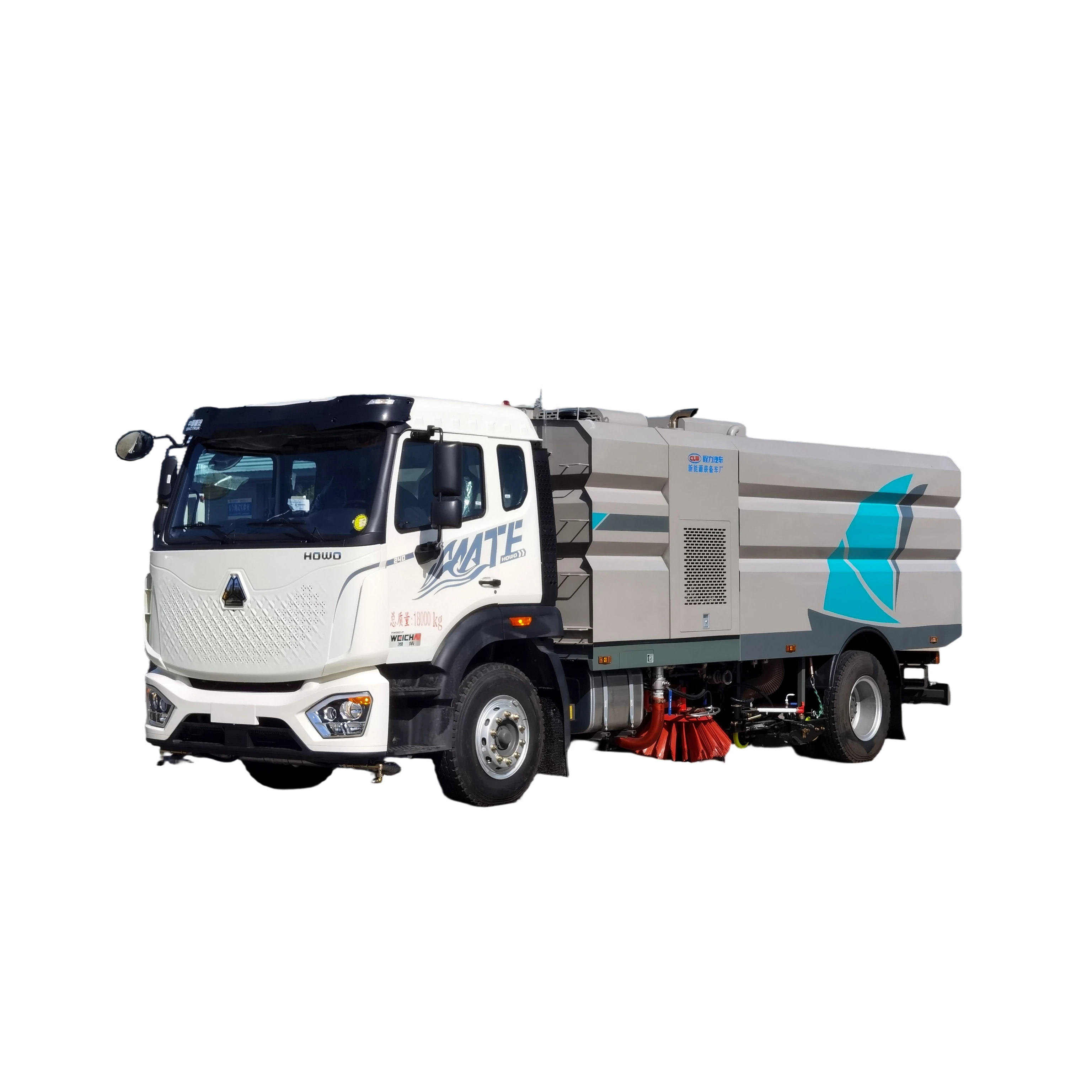

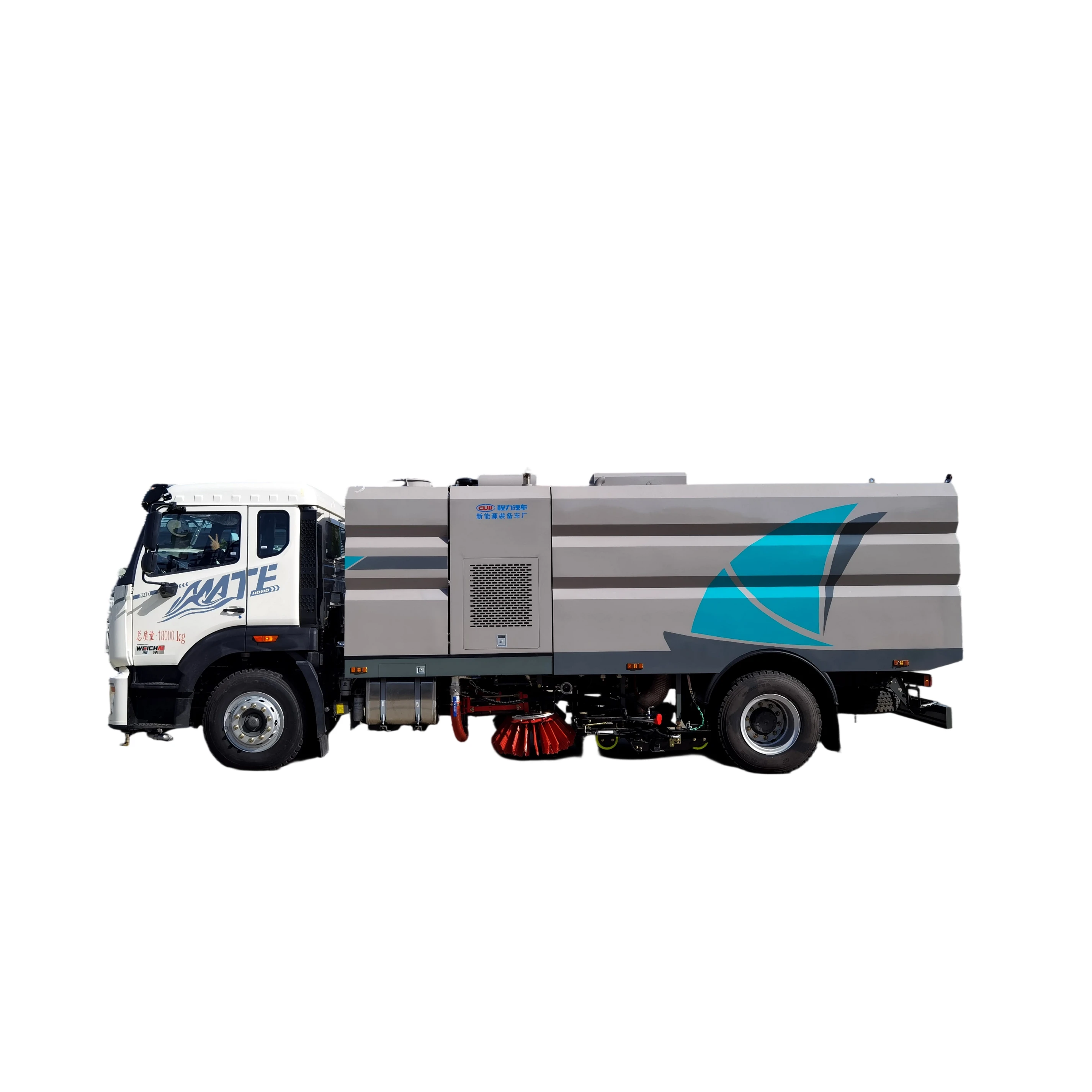

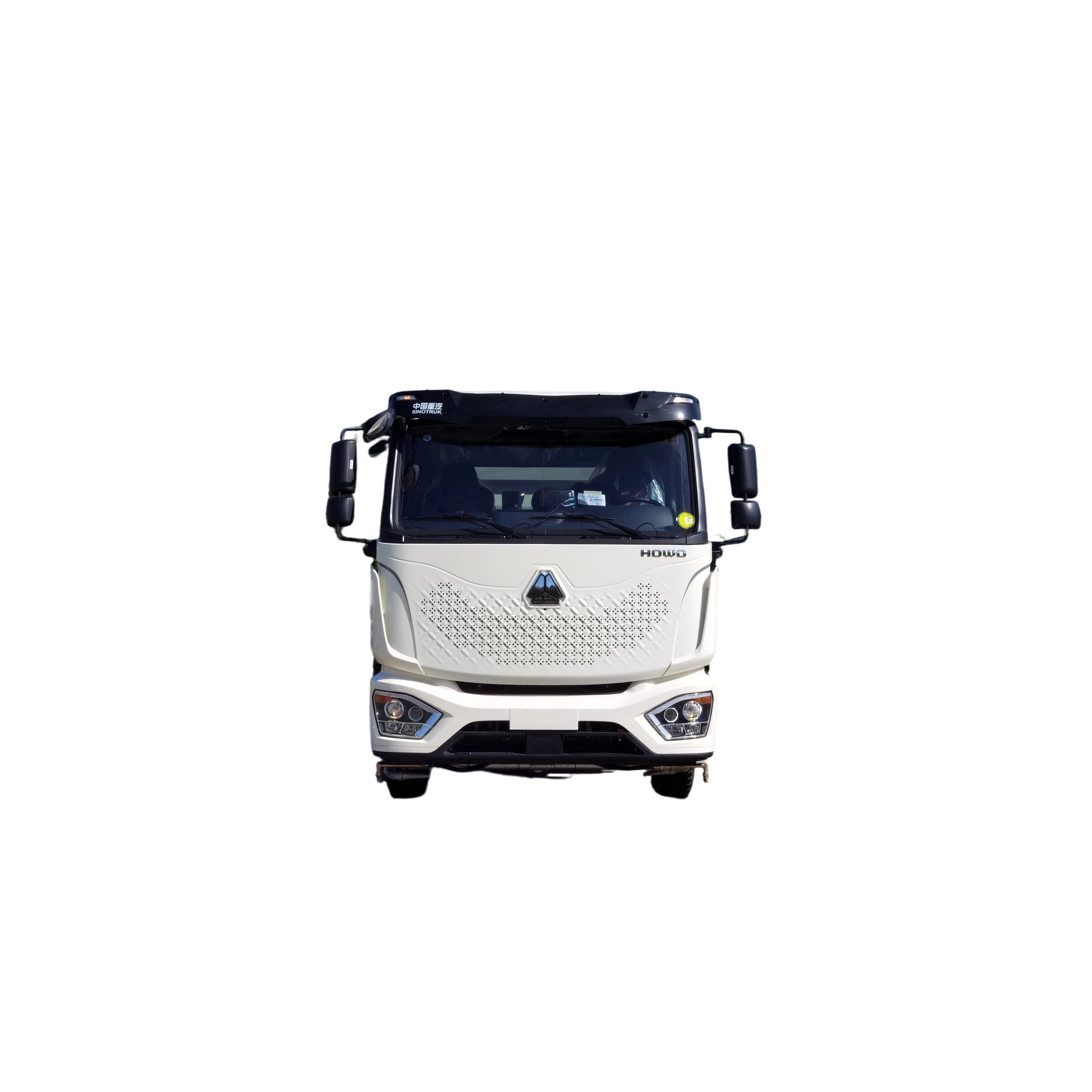

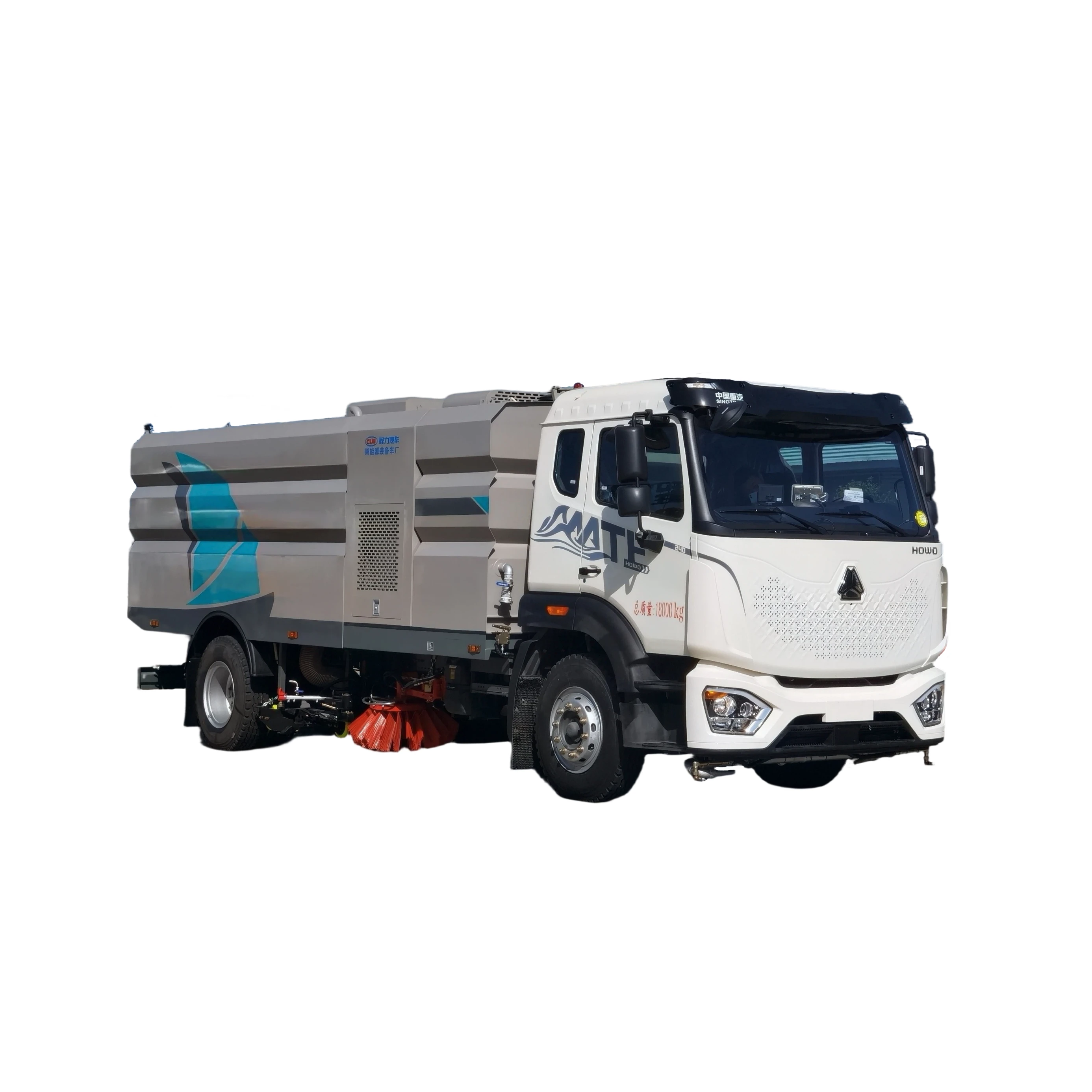

Full Vehicle Model

CL5181TXSZ6GX

hydraulic component

Gear pump, cycloidal motor, hydraulic cylinder, solenoid valve, integrated block, high-pressure pump

Chassis Model

ZZ1187K511JF1

Cycloid Motor

Lithon Motor / Livomotor

gross mass （kg）

18000

geared oil pump

Shiyan Changshun

Preparation Mass (kg)

12000、11550、11100

hydraulic jack

Hypris

Rated load capacity (kg)

5870、5805、6320、6255、6770、6705

Hydraulic cylinder seal

Taiwan Dingji

wheel base （mm）

5100

Hydraulic Oil Pipeline

Da Hang

Clear Tank Volume (m³)

9

Electromagnetic Valve Assembly

Hypris

Garbage Bin Capacity (m³)

7 (stainless steel)

Earthquake-resistant pressure gauge

Chengdu Tianwei

Scanning Width (mm)

3000-3500

Return Oil Filter

Shanghai Sofima

Tire Type

10.00R20 18PR

System Overpressure (MPa)

10-12

effluent standard

GB17691-2018 National Standard Grade VI

Hydraulic Oil Tank Volume (L)

≥60

External Dimensions (Length × Width × Height) (mm)

8925×2530×3150

Chassis Circuit Voltage (V)

24

main engine

Weichai

Working Device Voltage (V)

12

Main Engine Horsepower (Ps)

240

Electrical Control Configuration

Auxiliary engine tachometer, water temperature gauge, oil temperature alarm, operation switch

Main Engine Displacement (ml)

4580

control switch

Shanghai Schneider

Secondary Engine Model

Dongfeng Cummins

PLC

Bai Qiaofu

Auxiliary Engine Power (kW)

125

circuit breaker

Haiger

Auxiliary Engine Power (Ps)

170

Battery Specifications

12 V – 140 Ah (2 units connected in parallel)

Secondary Engine Displacement (ml)

5900

Fan Type

Grade 9.0 Maintenance-Free Centrifugal Fan

Scavenging Speed (km/h)

3-15

Fan Transmission

Auxiliary engine + clutch + 4 high-temperature resistant A-belts

Cleaning Operation Speed (km/h)

15-20

Fan Belt

Zhejiang Three-Dimensional

Maximum Cleaning Capacity (m²/h)

50000

Fan rated speed (r/min)

2000

Material density (g/cm³)

2

automatic clutch

Centrifugal type; made of imported materials

Mass of single material sample (kg)

1.5

Fan Airflow (m³/h)

12000~23000

Maximum suction particle size (mm)

≥100

Scan Structure

The sides of the frame are adjustable in height and extend outward for vertical sweeping, driven by hydraulic motors with adjustable rotational speed.

Garbage bin dumping angle (°)

≥30

Scan Disk Accessories

Disk cleaning bracket, disk cleaner, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor

Scanning Efficiency

≥96%

Scanning expansion diameter (mm)

φ800-900

Work Noise (dB)

<88, compliant with GB7258

Scanning motor speed (r/min)

140

Driven Type

4×2 rear-wheel drive

Scanning Count

2

Suspension Type

plate spring

Scanning Disk Inclination

Anterior tilt: 5°–15°; lateral tilt: 5°–10°

Number of steel plate spring springs

–/–, 2/–, 2/4, 3/–, 3/4, 3/5, 3/9 + 6, 4/–, 4/5, 4/9 + 6, 9/9 + 6, etc.

Nozzle Structure

Double suction port with wide nozzle, equipped with 8 built-in high-pressure nozzles and hydraulic/spring-loaded floating suspension system

Braking Type

Double-circuit pneumatic brake, drum type

Straw diameter (mm)

φ180

Braking distance at full load at 30 km/h (m)

≤10

Straw Brands

NORRES

Maximum Speed (km/h)

102、89

Walking wheel bearing

SKF (Skifer)

Minimum turning radius (m)

8

Walking Wheel Outer Ring

Stellana

maximum gradability

≥30%

Nozzle rigidity clearance from ground (mm)

5～8

clutch

Single-plate dry diaphragm spring clutch, hydraulically operated

Nozzle and straw wind speed (m/s)

50～65

transmission

Huawo 8-speed transmission (with synchronizer)

Nozzle negative pressure (mmH₂O)

380

Fuel consumption per 100 kilometers (L)

≤14

warning device

Reverse Vehicle Voice Alarm System

Daily Operation Fuel Consumption (L)

≤8

Secondary Operating System

Electrical control box at the rear, controlling the lifting of the main compartment and the opening/closing of the rear door

Fuel consumption per 10,000 square meters of working area (L)

≤3

emergency system

Manual Pump Emergency Lifting System

Dust suppression and water spraying method

Low-pressure mist

Box Material

Stainless steel waste bin; water tank made of carbon steel plate with electrophoretic coating (stainless steel optional); 3 mm side panels and 4 mm bottom panel.

High-pressure Water Pump Brands

GTM (Imported High-Pressure Pump)

Job Characteristics

The physical cleaning process causes no secondary pollution, with a cleaning efficiency of ≥98%, and is suitable for removing various types of debris.

High-voltage system components

High-pressure pump, water filter, piping system, stainless steel spray frame, high-pressure nozzle

Function Configuration

Fixed-point washing of the front, low-pressure backwashing, curb cleaning, rear spraying, 15-meter high-pressure drum, and self-cleaning of the housing.

Dust removal and control area

Left, Right, and Front Scanning

Auxiliary Engine Idling (r/min)

750~790

Vacuum dust collection location

Inside the suction port of the suction cup

Maximum RPM of the auxiliary engine (r/min)

2400

Control Type

Electronic Control, One-Click Operation

Maintenance Requirements

The main and auxiliary engines share a common fuel tank, with the fuel filter element being replaced periodically.

Hydraulic System Type

Open, electrically powered centralized control system

After-sales Service Policy

Comprehensive maintenance service available at over 300 service centers nationwide; free repairs for non-human-induced faults within one year.
