Main Technical Parameters Table

Product Brand

Chengli Brand

Fuel Types

diesel oil

Announcement Batch

354

effluent standard

GB17691-2018 National Standard Grade VI

product name

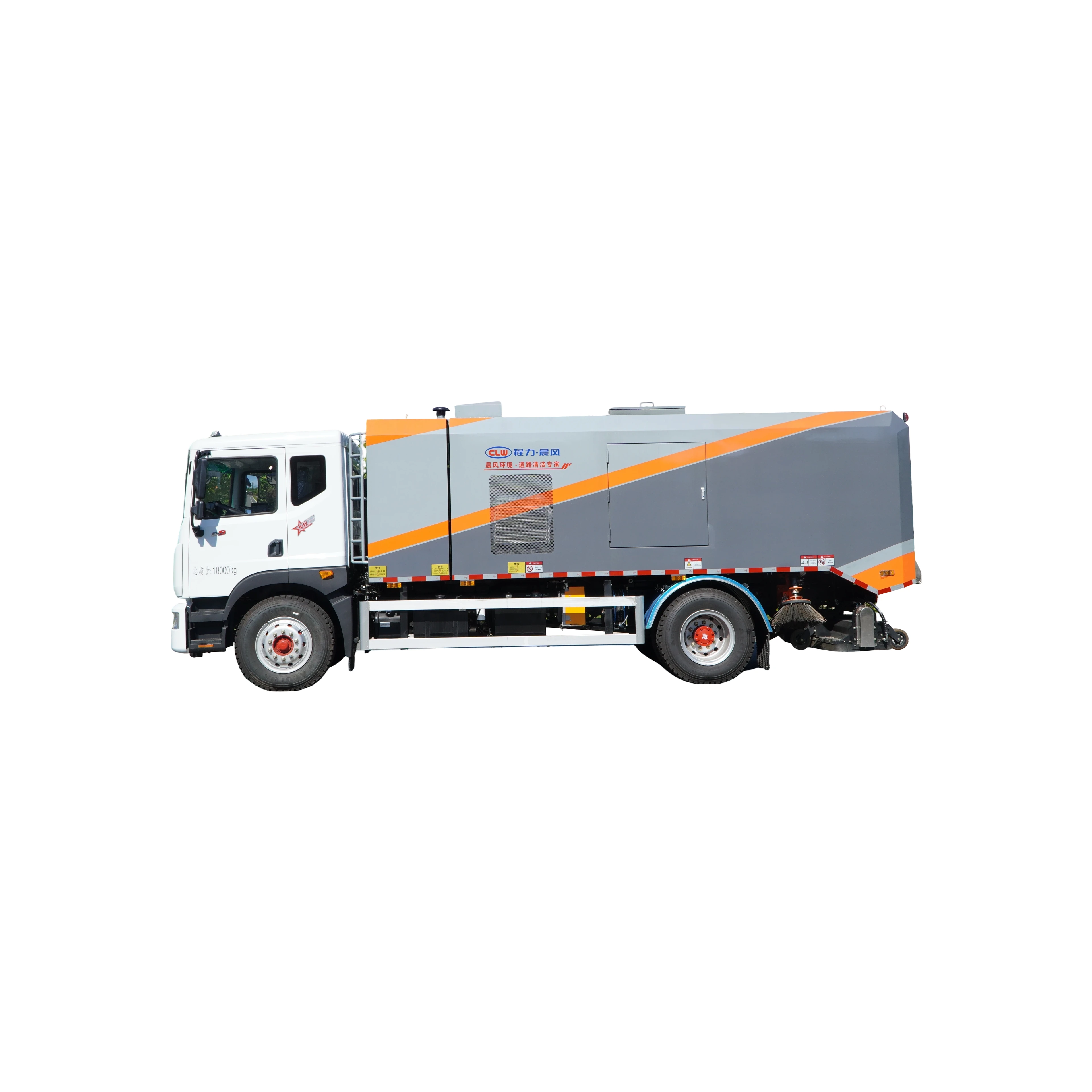

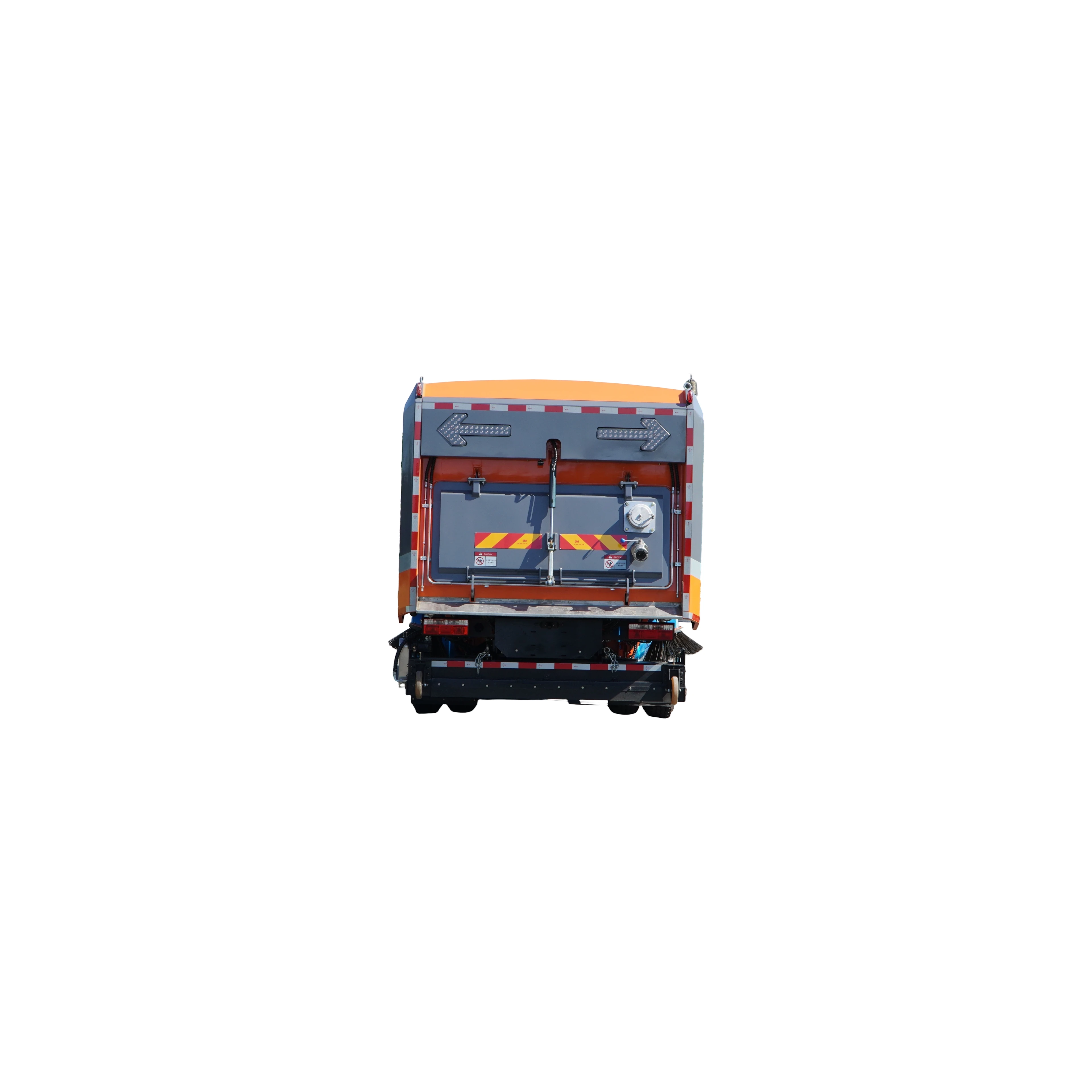

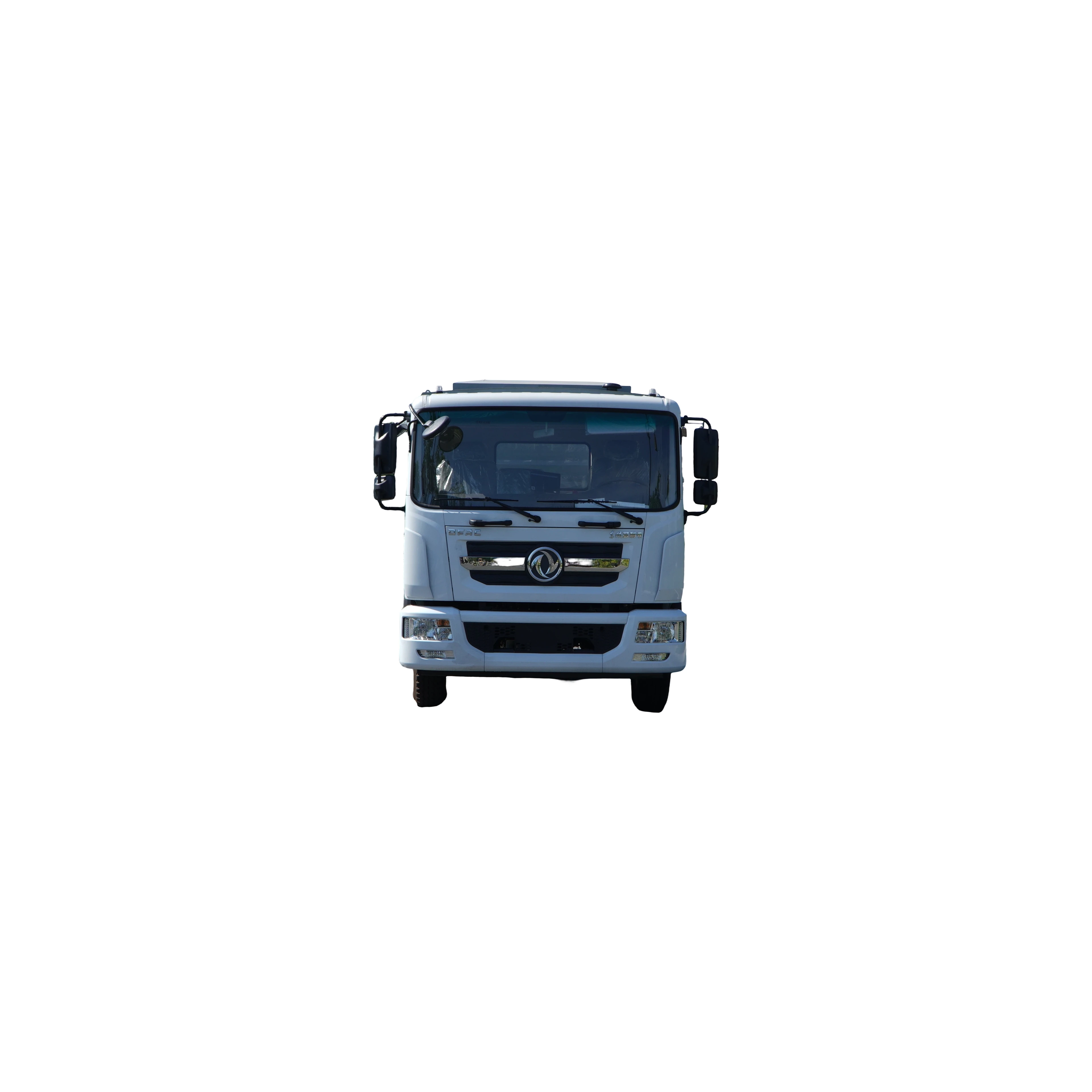

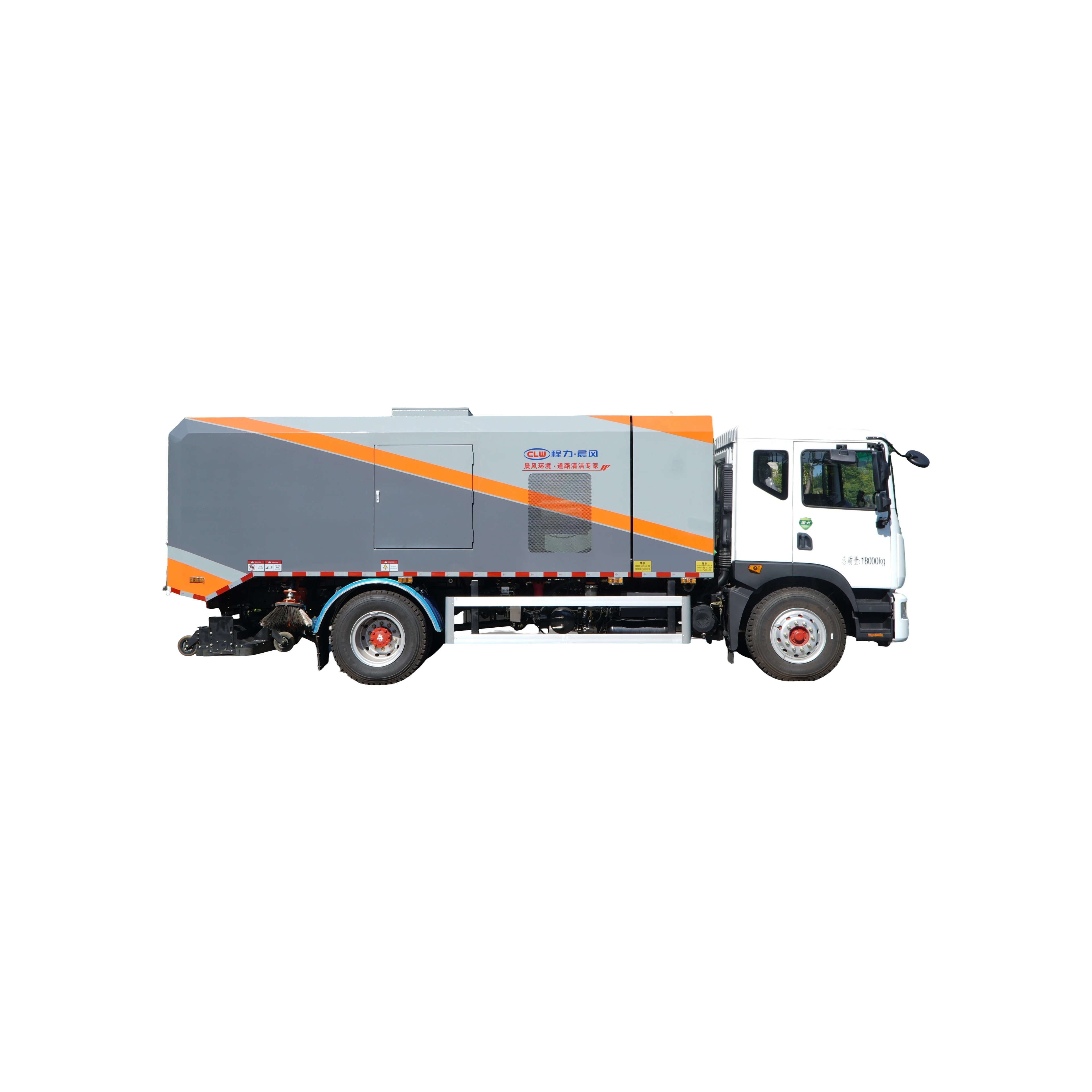

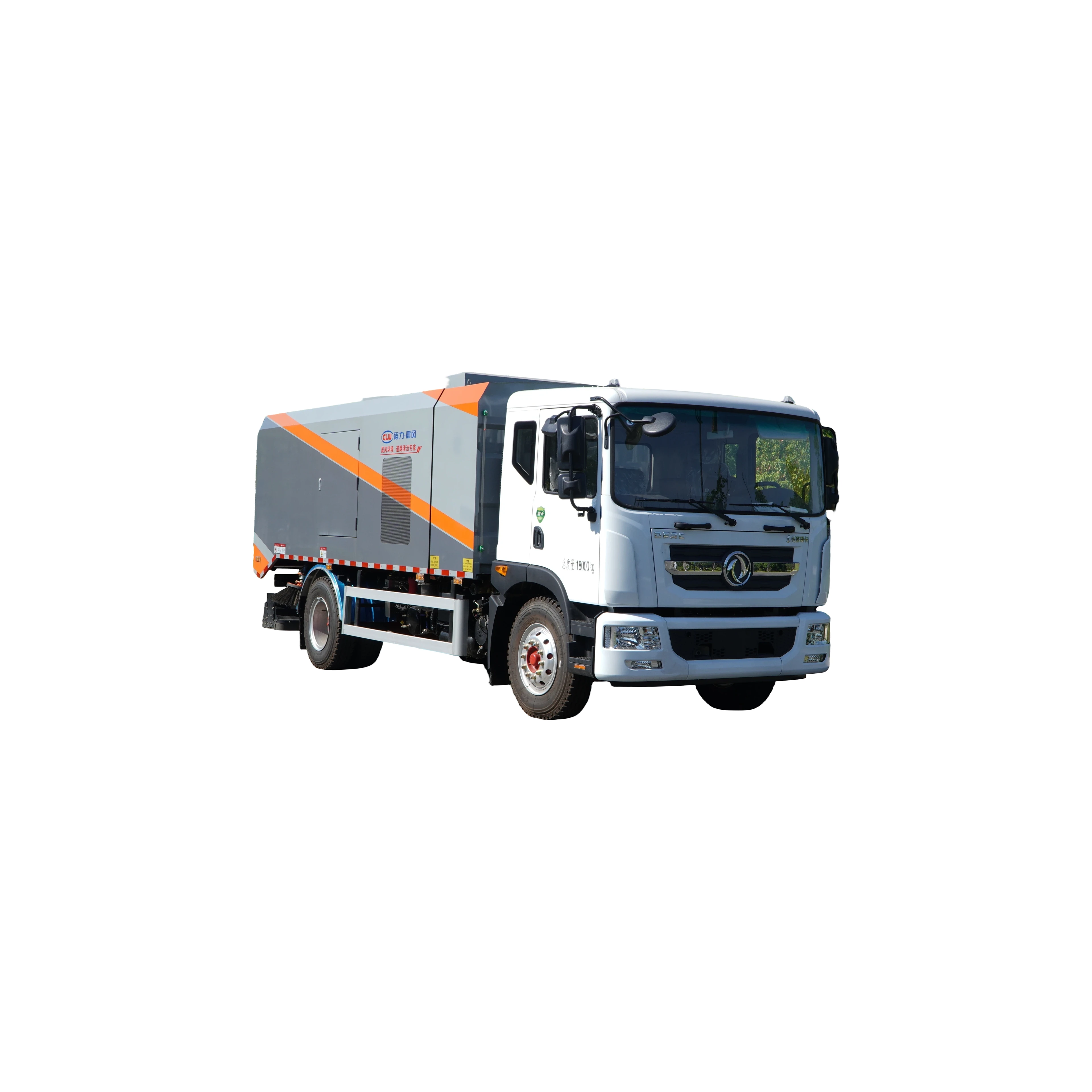

CL5120TXC6GX model vacuum truck

engine type

YCY30165-60、D25TCIF1

Product Number

ARASV74B039

Engine manufacturing company

Guangxi Yuchai Machinery Co., Ltd.   Kunming Yunnei Power Co., Ltd.

gross mass （kg）

11995

Engine Displacement (ml)

2970、2499

Rated load capacity (kg)

5300、5365

Engine Power (kW)

121、110

curb weight （kg）

6500

ABS Model/Manufacturer

ABS/ASR-12V-4S/4M; Xiangyang Dongfeng Longcheng Machinery Co., Ltd.

Maximum number of passengers in the cab (people)

3、2

Security Configuration

The side protection features aluminum alloy bolted connections, while the rear protection is replaced by a dedicated device; the ground clearance height is 200 mm.

Angle of approach/angle of departure (°)

December 21

Assignment Format

Negative-pressure pure suction, unidirectional air intake, no reverse airflow; zero PM2.5 emissions

Front/Side Suspension (mm)

1180/2180

Nozzle Type

Rear-mounted wide-nozzle with rolling sweep function, featuring hydraulic lifting and floating structure

wheel base （mm）

3800

Inlet width (mm)

2000

number of axles

2

Garbage Bin Capacity (m³)

6

Axial Load (kg)

4350/7645

Water Tank Capacity (m³)

1.5

Maximum Speed (km/h)

103

Auxiliary Engine

Jiangling Isuzu 64KW turbocharged model

outline dimension （mm）

7160×2200、2260×2750、2760

fan

High-power, maintenance-free centrifugal fan with a rating of 7.1

Chassis Model

EQ1125SJ8CDC

Filter cartridge Configuration

10 polymer-made circular filter cartridges, equipped with an automatic air-pulse cleaning device

Chassis Brand/Manufacturer

Dongfeng Brand, Dongfeng Motor Co., Ltd.

hydraulic pressure system

German standard sealed pipeline, Hypris hydraulic solenoid valve

Number of Tires

6

electric elements

Schneider Electric switches; integrated control system in the PLC cab

tyre size

245/70R19.5、8.25R20

Transmission Component

Maintenance-free automatic clutch

front gauge （mm）

1745、1802、1820、1842、1765、1890

emergency device

Manual Pump Emergency Lifting System

Rear wheelbase (mm)

1630、1650、1800、1720

surface preparation

Non-stainless steel components require rust prevention treatment.

Number of steel plate spring springs

8/10+7、12/12+9

Applicable Site

Asphalt/cement pavements on urban roads, elevated bridges, squares, airports, docks, and industrial sites
