Main Technical Parameters Table

Full Vehicle Model

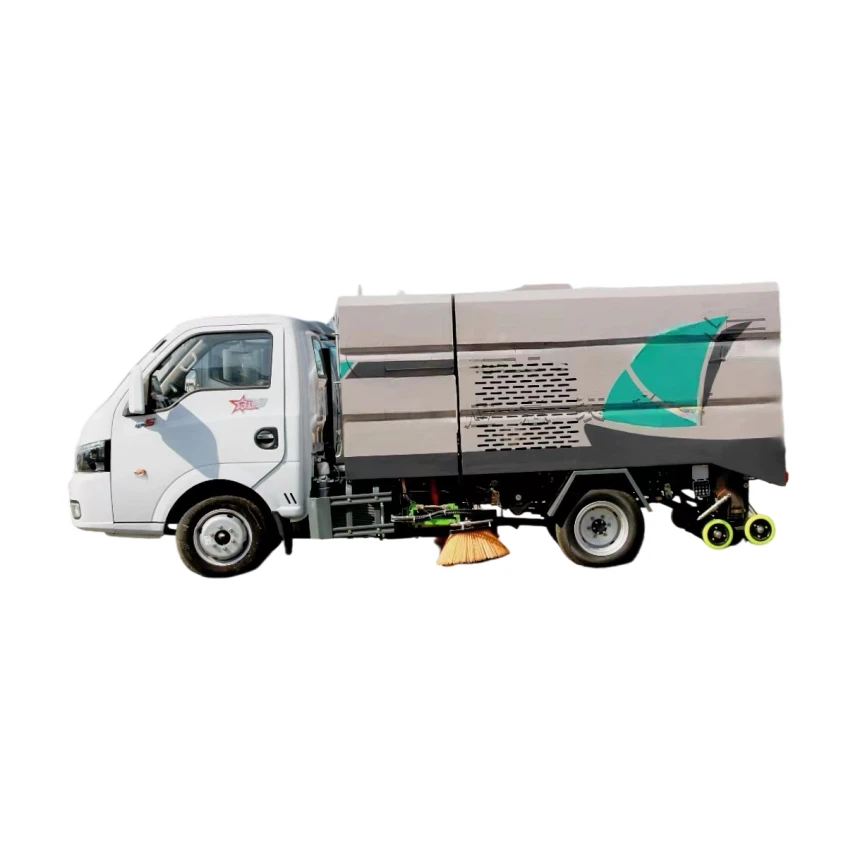

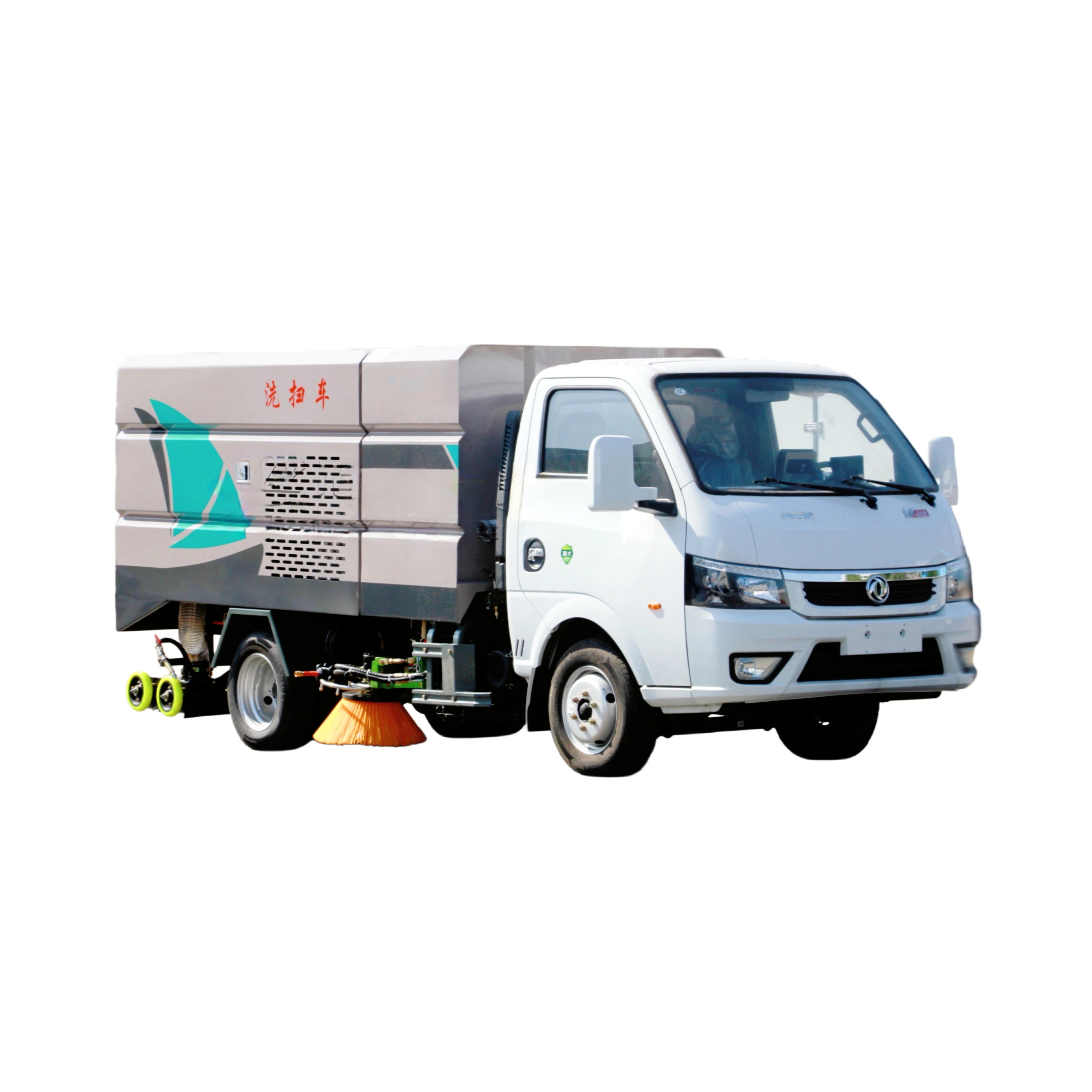

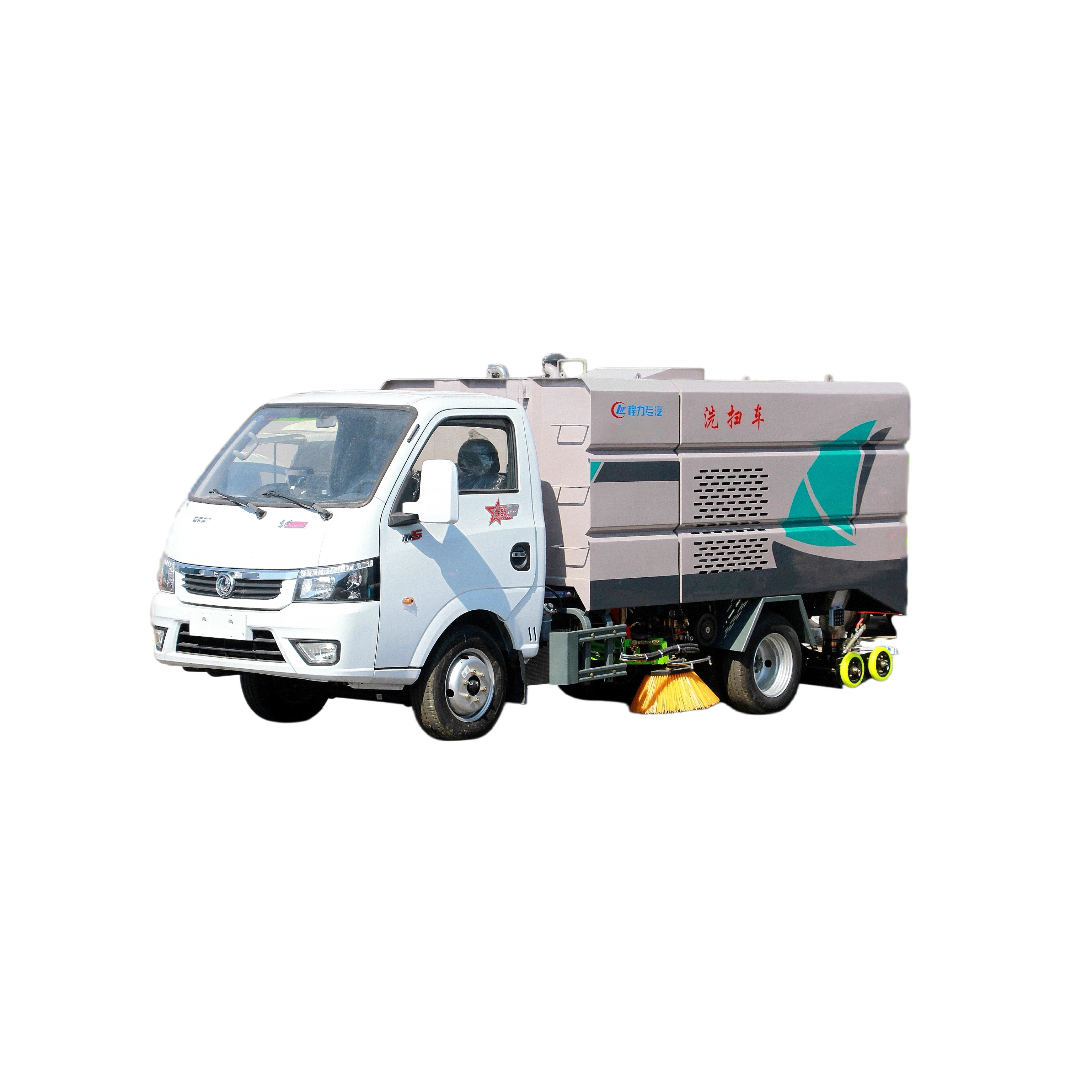

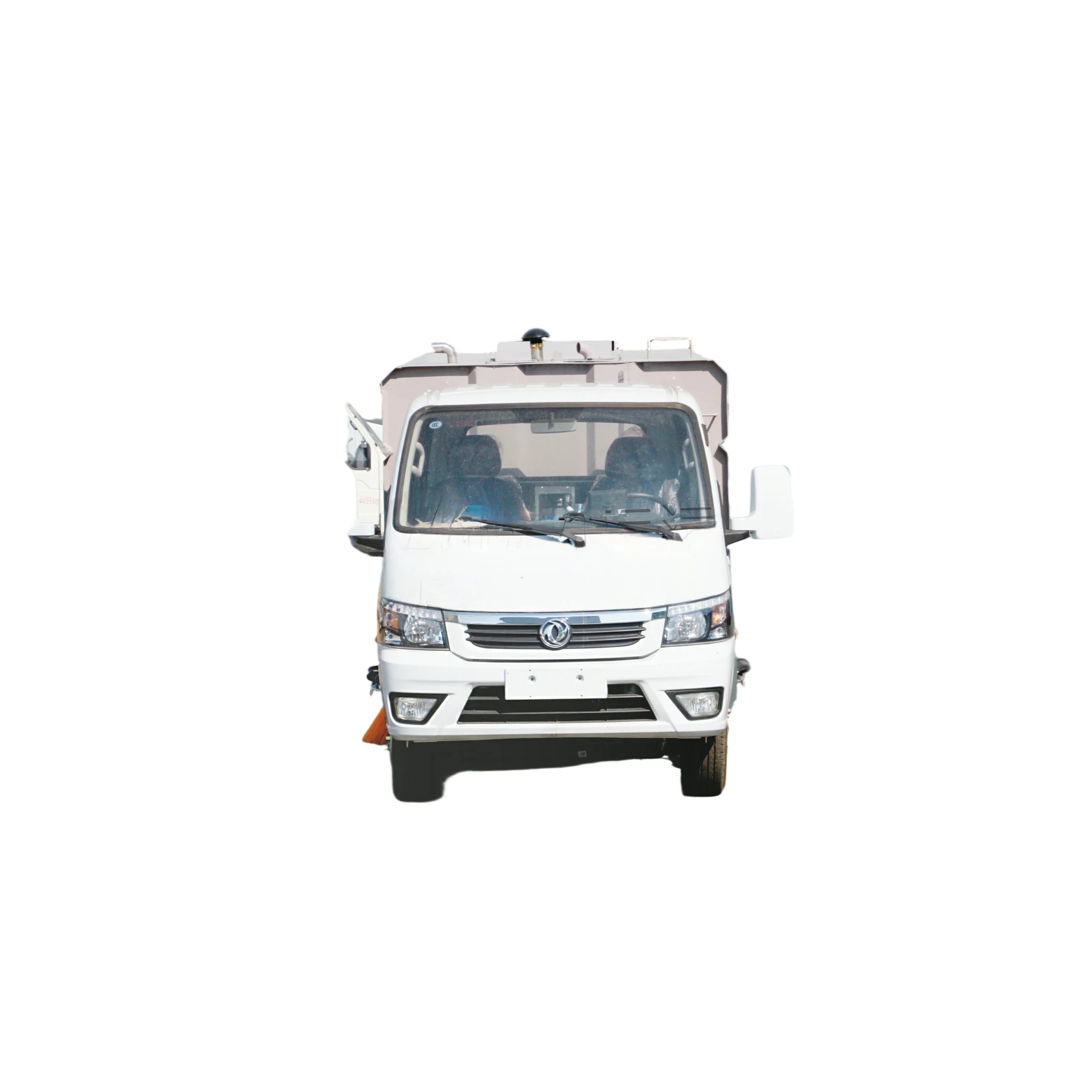

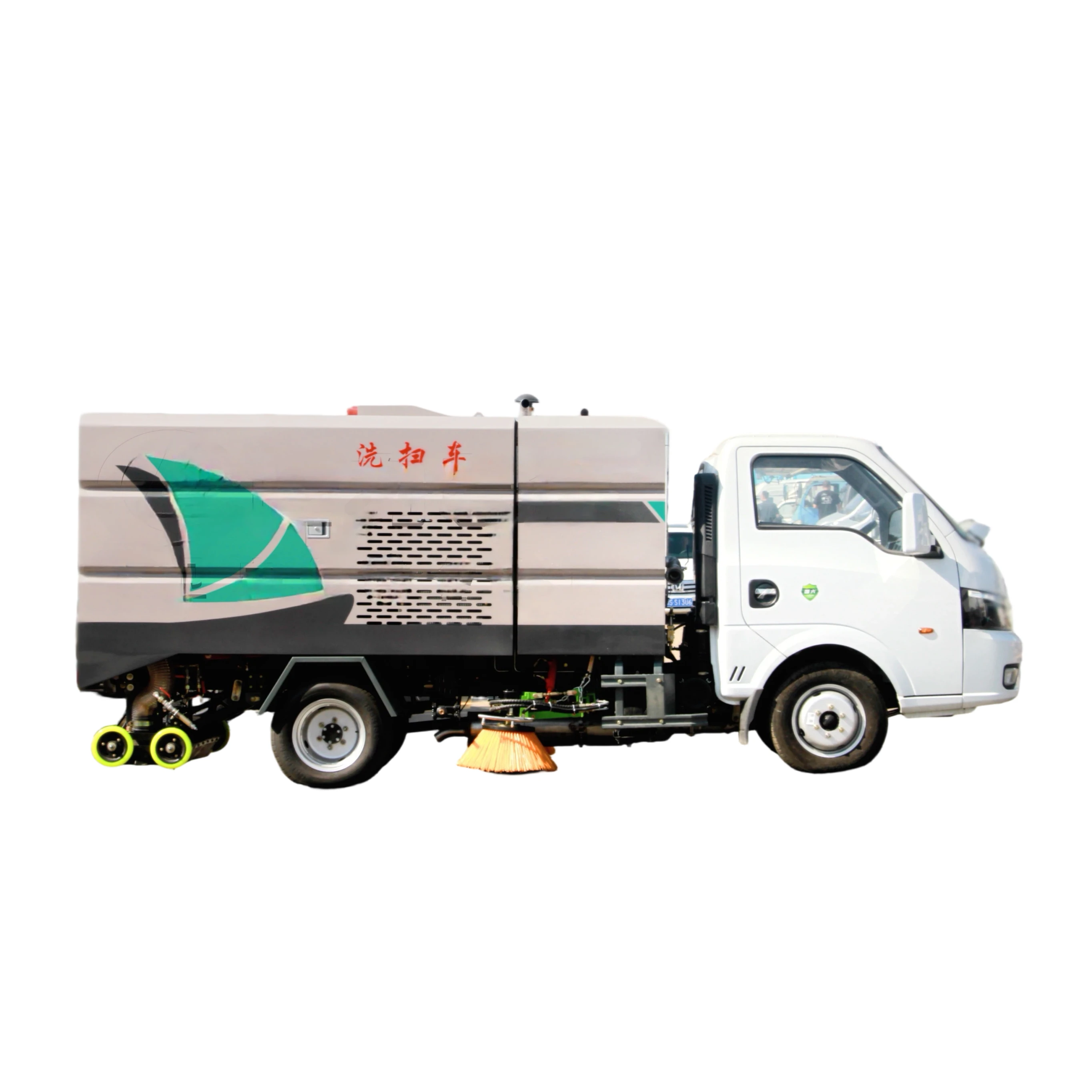

CLW5040TXSBSL

Scanning Method

The sides of the frame are adjustable in height and extend outward for vertical sweeping, driven by hydraulic motors with adjustable rotational speed.

Chassis Model

EQ1045SJ16DC

Scan Disk Accessories

Disk cleaning bracket, disk cleaner, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor

gross mass （kg）

4495

Scanning expansion diameter (mm)

φ400-500

Preparation Mass (kg)

3450

Scanning motor speed (r/min)

140

Rated load capacity (kg)

915

Scanning Count

2

wheel base （mm）

2800

Scanning Disk Inclination

Anterior tilt: 5°–15°; lateral tilt: 5°–10°

Clear Tank Volume (m³)

1.5

Nozzle Structure

Double suction port with wide nozzle, featuring 8 built-in high-pressure nozzles and a hydraulic-spring floating suspension system

Garbage Bin Capacity (m³)

1.8 (Stainless steel)

Straw diameter (mm)

φ180

Tire Type

185R15LT 8PR

Straw Brands

NORRES

effluent standard

National Standard Grade VI (Anhui Quanchai Q23-95E60)

Walking wheel bearing

SKF (Skifer)

External Dimensions (Length × Width × Height) (mm)

5620×1750、1730×2300、2200、2150、2080

Walking Wheel Outer Ring

Stellana

Main Engine Horsepower (Ps)

95

Nozzle rigidity clearance from ground (mm)

5～8

Main Engine Displacement (ml)

2300

Nozzle and straw wind speed (m/s)

50～65

Secondary Engine Model

RB8415 (Within Cloud)

Nozzle negative pressure (mmH₂O)

380

Auxiliary Engine Power (kW)

42

Secondary Operating System

Electrical control box at the rear, controlling the lifting of the main compartment and the opening/closing of the rear door

Secondary Engine Horsepower (Ps)

57

emergency system

Manual Pump Emergency Lifting System

Scanning Area (m²)

30750

Vehicle Structure

Rectangular stainless steel waste bin; the clean water tank is made of carbon steel plate with electrophoretic coating (stainless steel optional), featuring 3 mm side panels and 4 mm bottom panel, all assembled via seamless welding.

Scavenging Speed (km/h)

3.5-15

Job Layout

Centrally positioned dual-scarifier nozzle; rear-mounted wide suction nozzle; built-in high-pressure main spray rod; left and right V-shaped side spray rods.

Cleaning Operation Speed (km/h)

15-20

Side Strut Function

Two-way automatic obstacle avoidance and reset

Material density (g/cm³)

2

Control System

CAN programming; integrated centralized control of electrical, hydraulic, and pneumatic systems

Mass of single material sample (kg)

1.5

fan

High-power, maintenance-free centrifugal fan

Maximum suction particle size (mm)

≥100

high lift pump

GTM high lift pump

Garbage bin dumping angle (°)

≥42

Core Components

Electromagnetic diaphragm pump, Hepris electromagnetic valve assembly, automatic clutch, monitoring probe, 15-meter high-pressure reel + high-pressure lance

Scanning Efficiency

≥96%

Auxiliary Engine Idling (r/min)

750~790

Work Noise (dB)

<88, compliant with GB7258

Maximum RPM of the auxiliary engine (r/min)

2400
