Main Technical Parameters Table

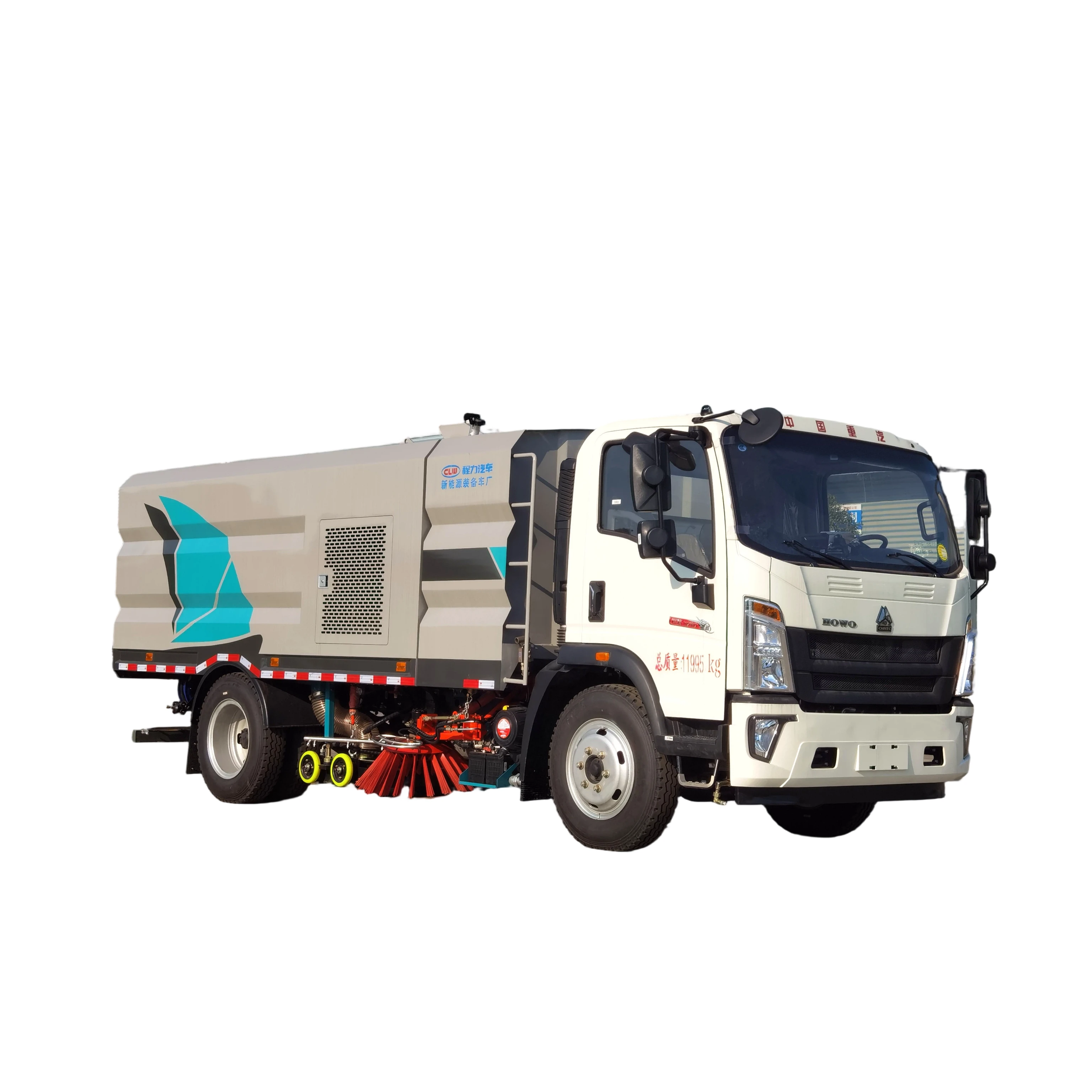

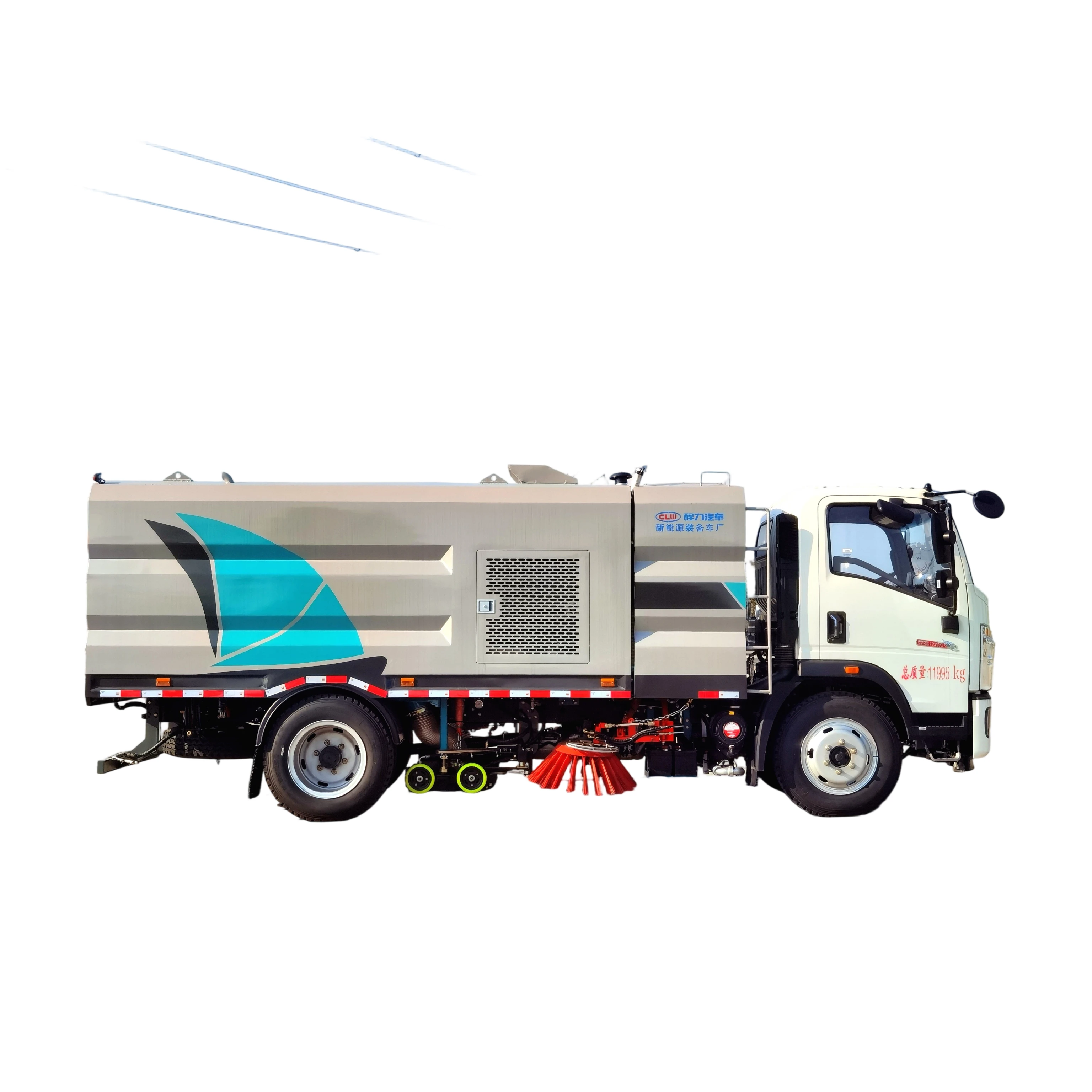

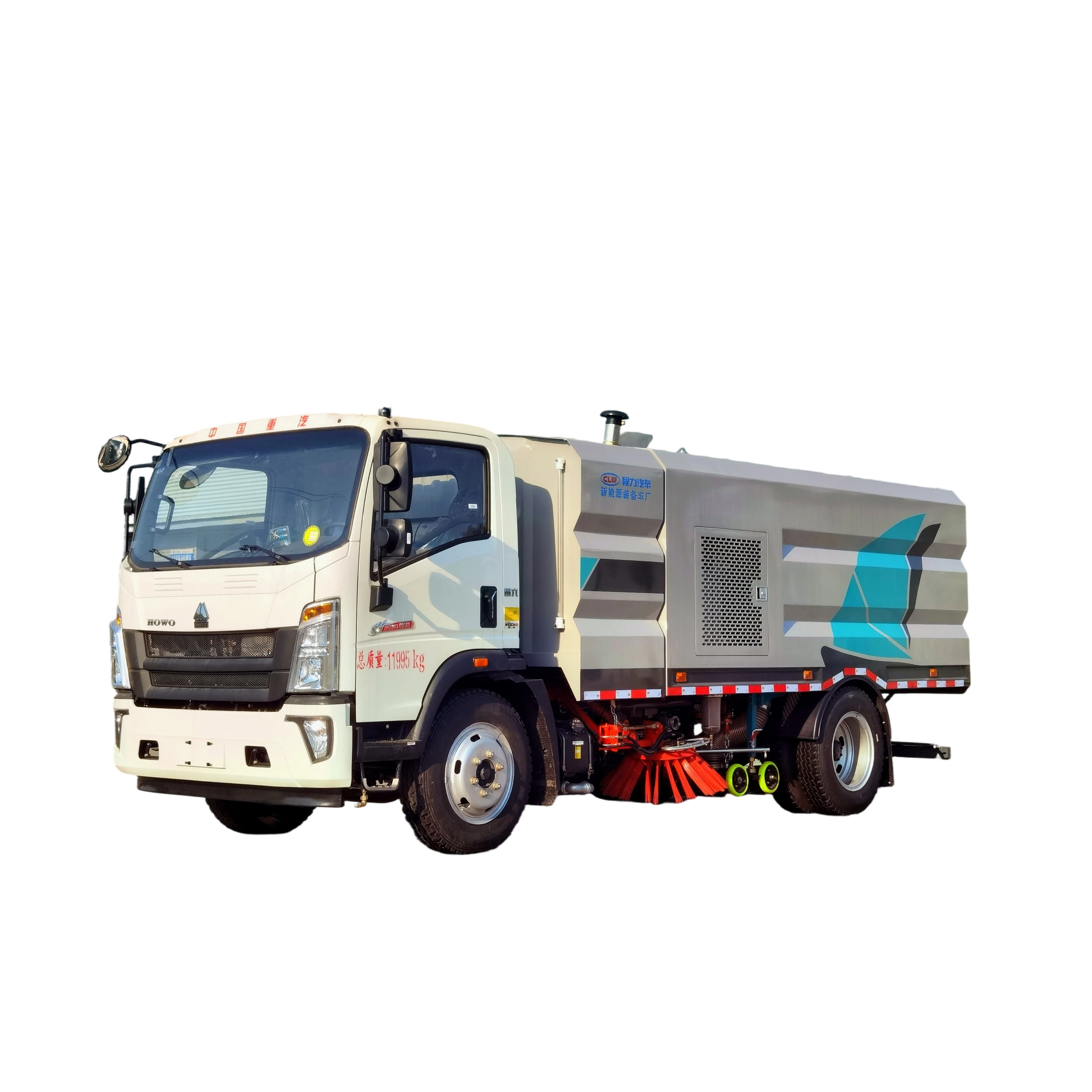

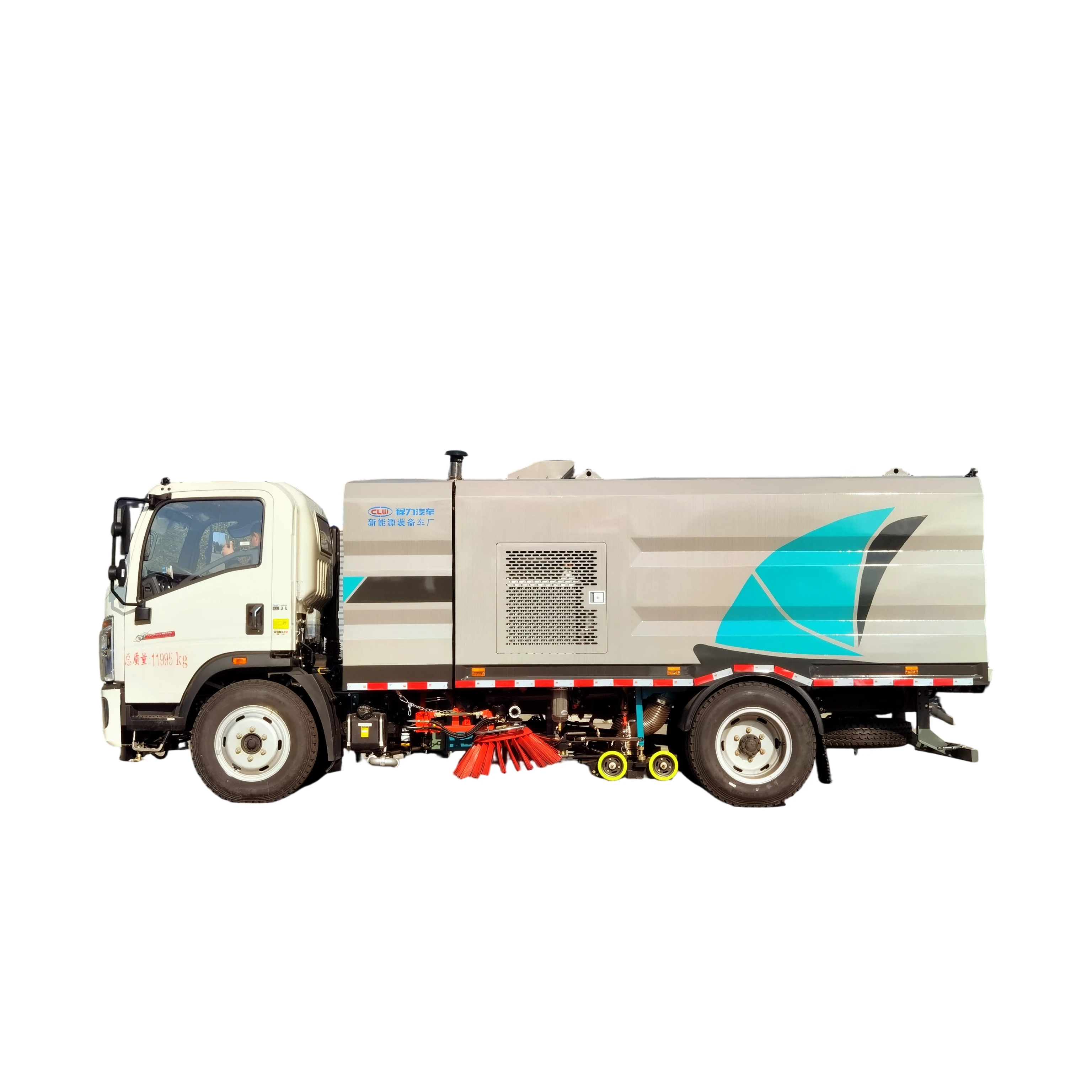

Full Vehicle Model

CL5182TXS6AGX

Cycloid Motor

Liton Motor/Liwoma Motor

Chassis Model

ZZ1187K501GF1

geared oil pump

Shiyan Changshun

gross mass （kg）

18000

hydraulic jack

Hypris

curb weight （kg）

12950、12300、11670

Hydraulic cylinder seal

Taiwan Dingji

Rated load capacity (kg)

4920、4855、5570、5505、6200、6135

Hydraulic Oil Pipeline

Da Hang

wheel base （mm）

5000

Electromagnetic Valve Assembly

Hypris

Water tank volume (m³)

9

Earthquake-resistant pressure gauge

Chengdu Tianwei

Garbage Bin Capacity (m³)

7 (stainless steel)

Return Oil Filter

Shanghai Sofima

Scanning Width (mm)

3000-3500

System Overpressure (MPa)

10-12

Tire Type

10.00R2018PR

Hydraulic oil tank volume (L)

≥60

effluent standard

GB17691-2018 National Standard Grade VI

Chassis Circuit Voltage (V)

24

External dimensions (length × width × height) (mm)

8620、8520、8220×2500×3265、3180

Working Device Voltage (V)

12

Main Engine Horsepower (Ps)

220

Electrical Control Configuration

Auxiliary engine tachometer, water temperature gauge, oil temperature alarm, operation switch

Main engine displacement (ml)

4580

control switch

Shanghai Schneider

Auxiliary Engine

Cummins 170-horsepower turbocharged model

PLC

Bai Qiaofu

Secondary Engine Power (kW)

125

circuit breaker

Haiger

Secondary engine horsepower (Ps)

170

Battery Specifications

12V–140 Ah (2 units connected in parallel)

Secondary engine displacement (ml)

5900

Fan Type

9.0-class maintenance-free centrifugal fan

Scraping Operation Speed (km/h)

3-15

Fan Transmission

Auxiliary engine + clutch + 4 high-temperature resistant A-band components

Cleaning Operation Speed (km/h)

15-20

Fan Belt

Zhejiang Three-Dimensional

Maximum Cleaning Capacity (m²/h)

50000

Fan rated speed (r/min)

2000

Material density (g/cm³)

2

automatic clutch

Centrifugal type; made of imported materials

Mass of a single material sample (kg)

1.5

Fan Air Flow Rate (m³/h)

12000~23000

Maximum suction particle size (mm)

≥100

Scan Structure

The sides of the frame are adjustable in height and extend outward for vertical sweeping, driven by hydraulic motors with adjustable rotational speed.

Garbage bin dumping angle (°)

≥30

Scan Disk Accessories

Disk cleaning bracket, disk cleaner, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor

Scanning Efficiency

≥96%

Scanning expansion diameter (mm)

φ800-900

Work Noise (dB)

<88, compliant with GB7258 requirements

Scanning motor speed (r/min)

140

Driven Type

4×2 rear-wheel drive

Scanning Count

2

Suspension Type

plate spring

Scanning Disk Inclination

Inclined forward 5°–15°, inclined outward 5°–10°

Number of steel plate spring springs

11/9 + 8, 3/9 + 8, 3/3 + 2, 2/3 + 2, 3/-, 2/-, 2/3, 7/7 + 6, 7/7 + 3, 3/7 + 6, 3/7 + 3, etc.

Nozzle Structure

Double-suction nozzle with a wide intake port, equipped with 8 built-in high-pressure nozzles and a hydraulic-spring floating suspension system

Braking Type

Double-circuit pneumatic brake, drum type

Straw diameter (mm)

φ180

Braking distance at full load at 30 km/h (m)

≤10

Straw Brands

NORRES

Maximum Speed (km/h)

101

Walking wheel bearing

SKF (Skifer)

Minimum turning radius (m)

8

Walking Wheel Outer Ring

Stellana

maximum gradability

≥30%

Nozzle rigidity clearance from ground (mm)

5～8

clutch

Single-plate dry diaphragm spring clutch, hydraulically operated

Nozzle and tube wind speed (m/s)

50～65

transmission

Huawo 8-speed transmission (with synchronizer)

Nozzle negative pressure (mmH₂O)

380

Fuel consumption per 100 kilometers (L)

≤14

warning device

Reverse Vehicle Voice Alarm System

Daily task fuel consumption (L)

≤8

Secondary Operating System

Electrical control box at the rear, controlling the lifting of the main compartment and the opening/closing of the rear door

Fuel consumption per 10,000 square meters of working area (L)

≤3

emergency system

Manual Pump Emergency Lifting System

Dust suppression and water spraying method

Low-pressure mist

Box Configuration

Rectangular stainless steel waste bin with a water tank made of carbon steel plate through electrophoresis treatment; features 3 mm side panels and 4 mm bottom panel, seamless welding, and includes self-cleaning nozzles.

High-pressure water pump

GTM Imported High-Pressure Pump

Job Layout

Central-mounted dual sweeping discs + rear-wide suction nozzle + high-pressure spray rod; side spray rods with bidirectional obstacle avoidance and reset function

High-voltage system components

High-pressure pump, water filter, piping system, stainless steel spray frame, high-pressure nozzle

Function List

Fixed-point washing of the front section, low-pressure backwashing, curb cleaning, rear spray dust suppression, 15-meter high-pressure drum, self-cleaning of the housing

Dust removal and control area

Left, Right, and Front Scanning

Overall vehicle advantages

Prefabricated structure with universal components; no secondary dust generation during operation, cleaning efficiency ≥96%.

Vacuum dust collection location

Inside the suction port of the suction cup

Auxiliary Engine Idling Speed (r/min)

750~790

Control Type

Electronic Control, One-Click Operation

Maximum rotational speed of the auxiliary engine (r/min)

2400

Hydraulic System Type

Open, electrically powered centralized control system

Maintenance Requirements

The main and auxiliary engines share a common fuel tank; the fuel filter should be inspected and replaced regularly.

hydraulic component

Gear pump, cycloidal motor, hydraulic cylinder, solenoid valve, integrated block, high-pressure pump

After-sales Service Details

No initial payment required; lifetime maintenance coverage; nationwide warranty service; 24-hour response to faults.
