Main Technical Parameters Table

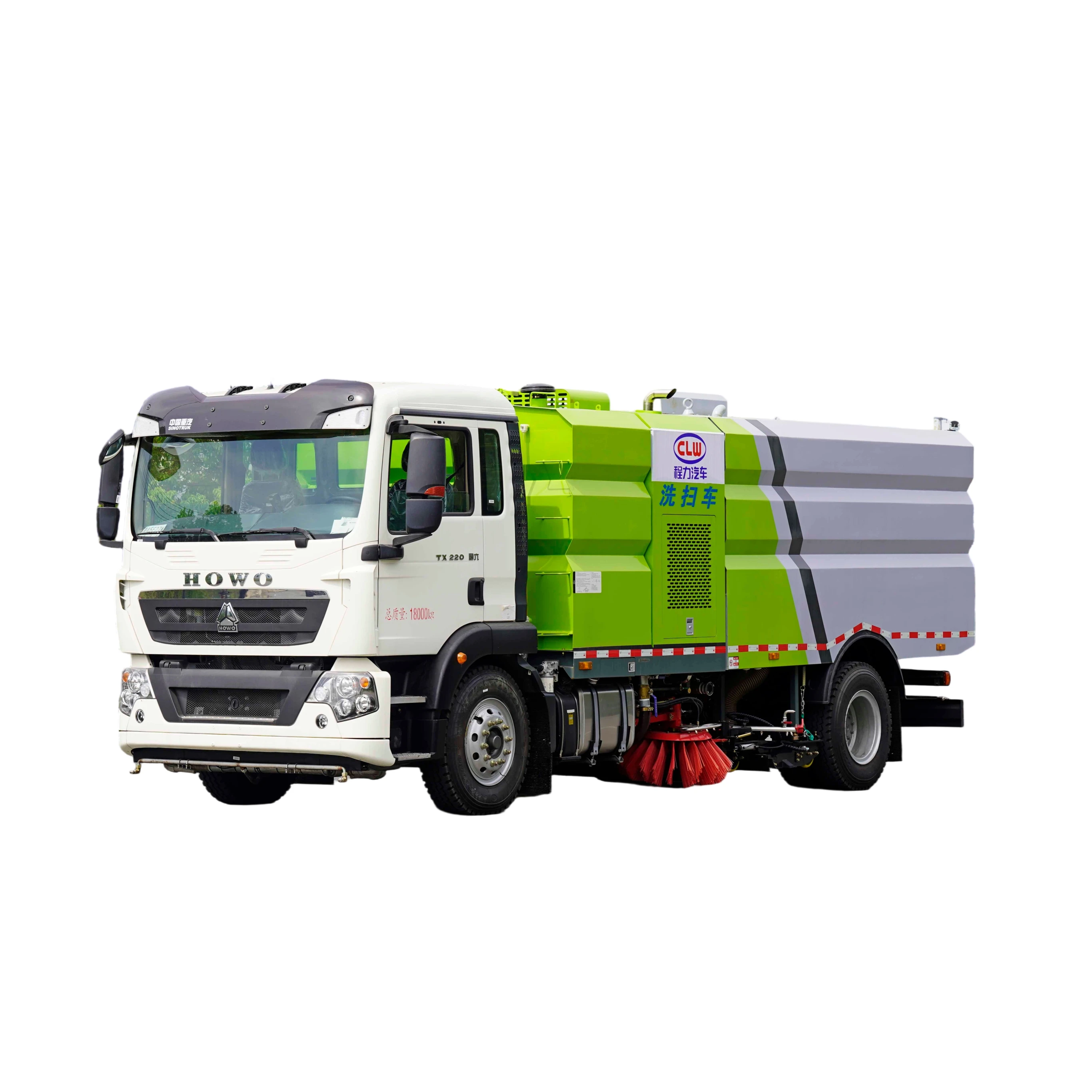

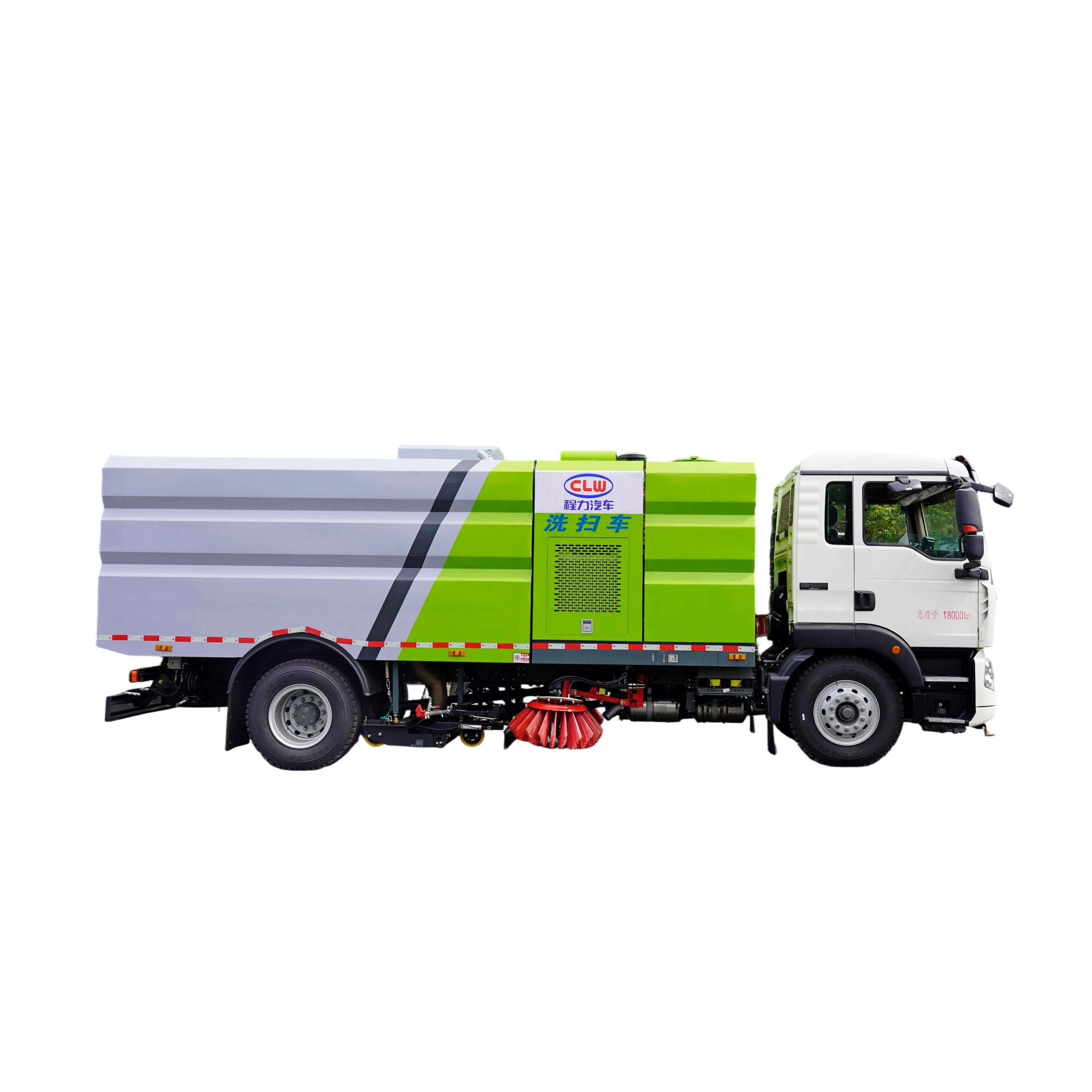

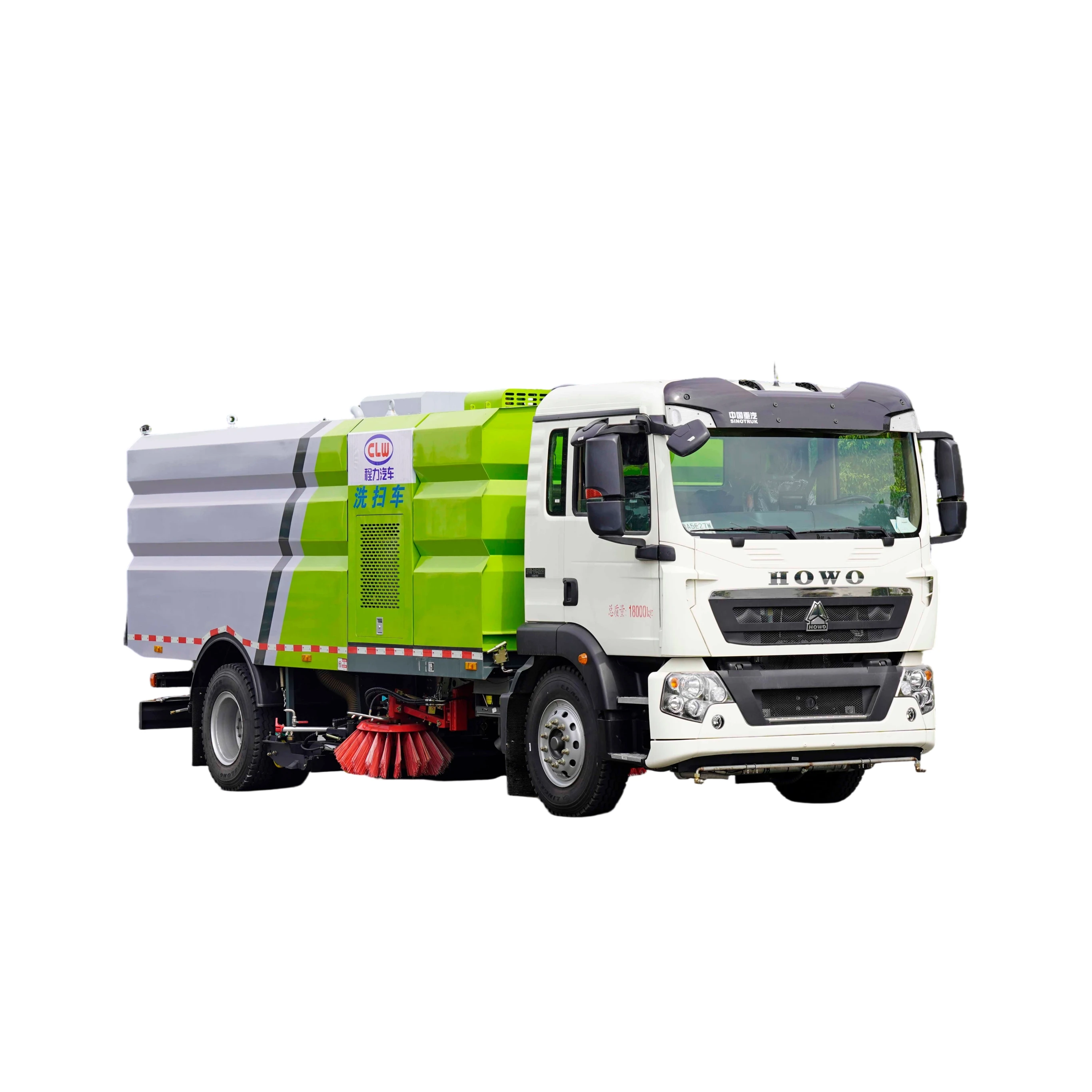

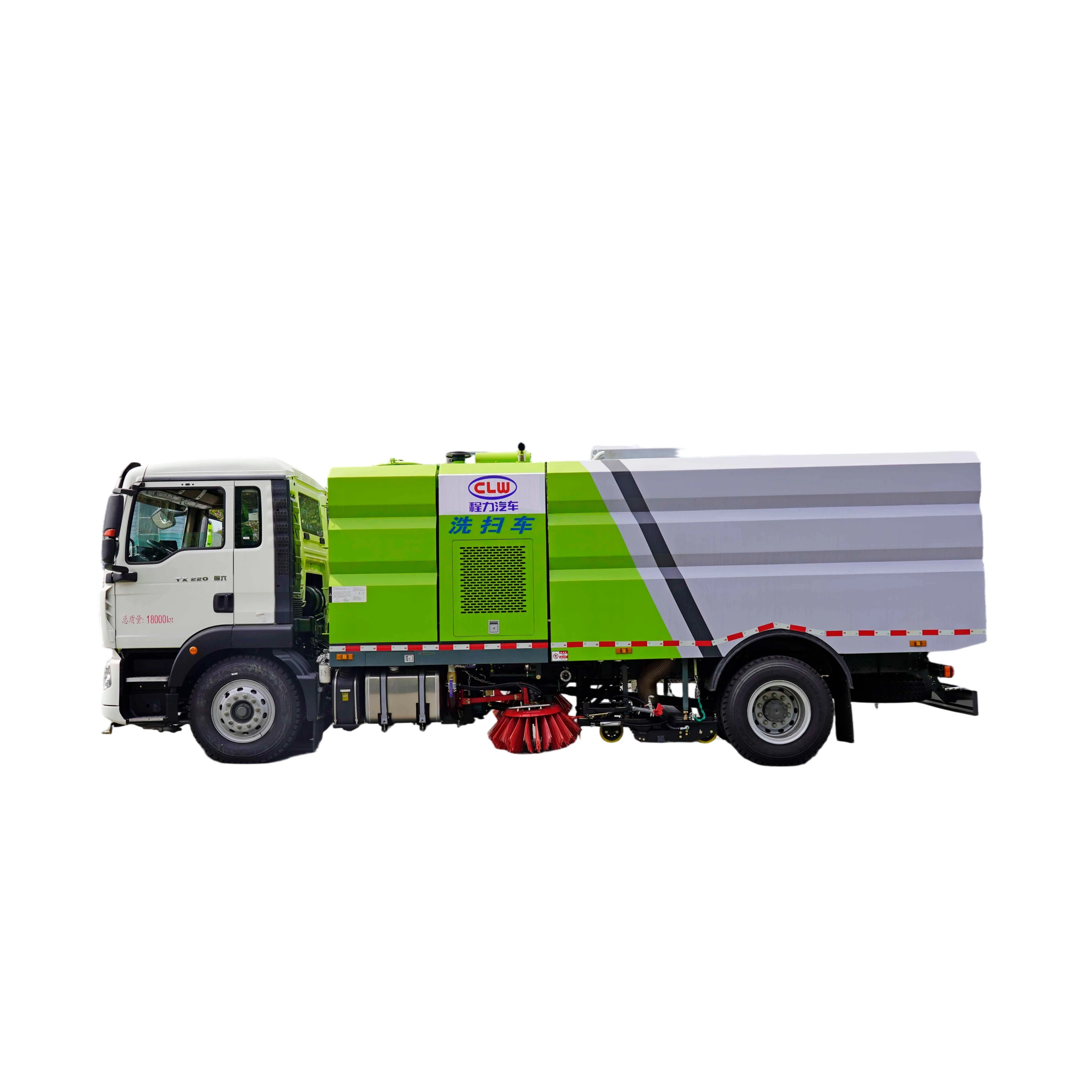

Full Vehicle Model

CL5181TXSZ6GX

Hydraulic System Type

Open, electrically powered centralized control system

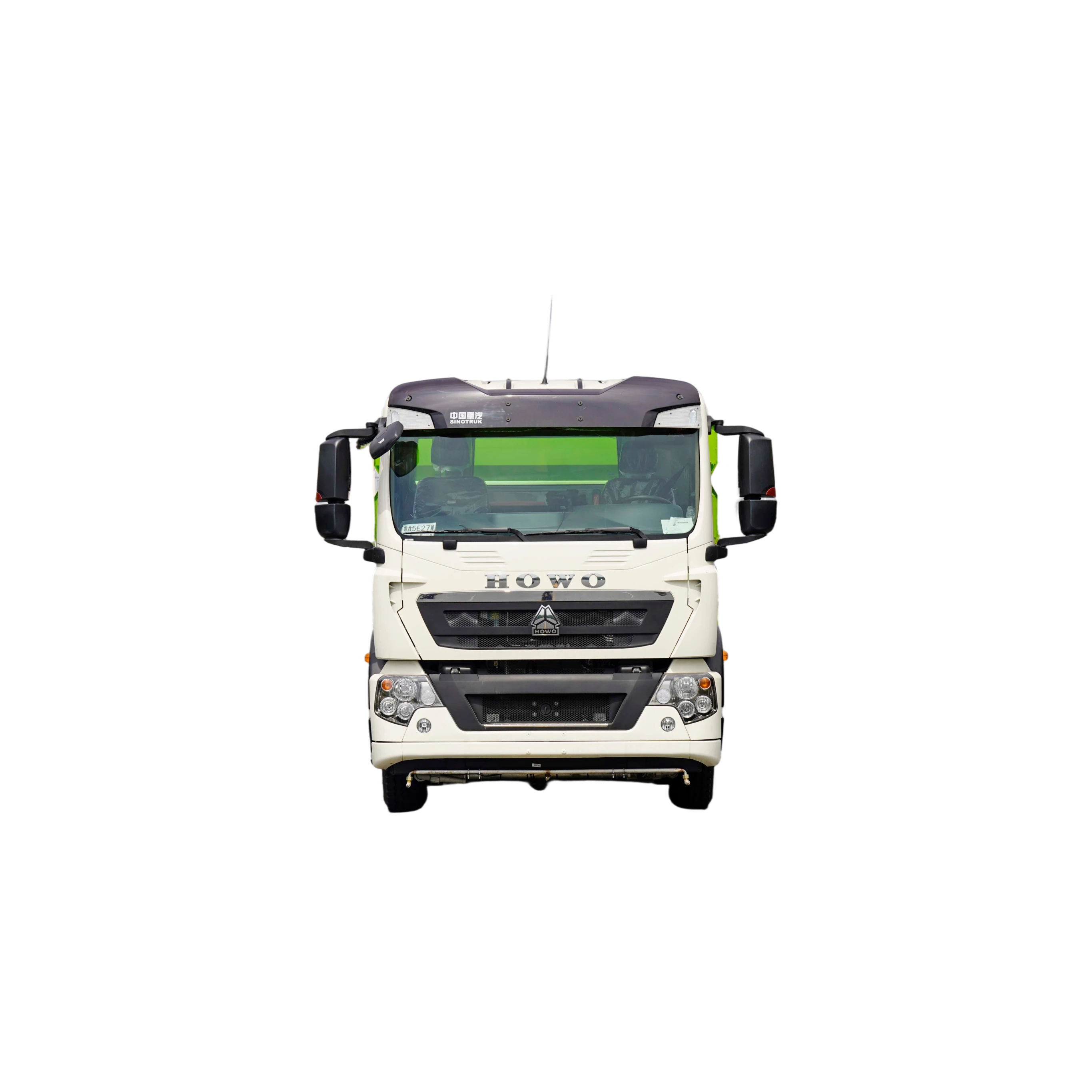

Chassis Model

ZZ5181TXSZ6GX

Hydraulic System Components

Gear pump, cycloidal motor, hydraulic cylinder, solenoid valve, integrated block, high-pressure pump

Maximum Total Mass (kg)

18000

Epicycloid Motor

Littor Motor / Livomotor

Preparation Mass (kg)

12000、11550、11100

geared oil pump

Shiyan Changshun

Rated load capacity (kg)

5870、5805、6320、6255、6770、6705

hydraulic jack

Hypris

wheel base （mm）

5100

Hydraulic cylinder seal

Taiwan Dingji

Tire Type

10.00R20 18PR

Hydraulic Oil Pipeline

Da Hang

effluent standard

GB17691-2018 National Standard Grade VI

Electromagnetic Valve Assembly

Hypris

External Dimensions (Length × Width × Height) (mm)

8925×2530×3150

Earthquake-resistant pressure gauge

Chengdu Tianwei

main engine

Weichai

Return Oil Filter

Shanghai Sofima

Main Engine Horsepower (Ps)

220

System Overpressure (MPa)

10-12

Main Engine Displacement (ml)

4580

Hydraulic Oil Tank Volume (L)

≥60

Secondary engine manufacturer

Dongfeng Cummins Co., Ltd.

Chassis Circuit Voltage (V)

24

Auxiliary Engine Power (kW)

125

Working Device Voltage (V)

12

Auxiliary Engine Power (Ps)

170

Electrical Control Box Configuration

Auxiliary engine tachometer, water temperature gauge, oil temperature alarm, operation switch

Secondary Engine Displacement (ml)

5900

Control Switch Brand

Shanghai Schneider

Clear Tank Volume (m³)

9

PLC brand

Bai Qiaofu

Garbage Bin Capacity (m³)

7 (stainless steel)

Circuit breaker Brands

Haiger

Scanning Width (mm)

3000-3500

Battery Specifications

12 V – 140 Ah (2 units connected in parallel)

Scavenging Speed (km/h)

3-15

Fan Type

Grade 9.0 Maintenance-Free Centrifugal Fan

Cleaning Operation Speed (km/h)

15-20

Fan Power Transmission Method

Auxiliary engine + clutch + 4 toothed, high-temperature resistant A-belts

Maximum Cleaning Capacity (m²/h)

50000

Fan Belt Brands

Zhejiang Three-Dimensional

Material density (g/cm³)

2

Fan rated speed (r/min)

2000

Mass of a single sample for aspiration (kg)

1.5

automatic clutch

Centrifugal type; made of imported materials

Maximum suction particle size (mm)

≥100

Fan Airflow (m³/h)

12000~23000

Garbage bin dumping angle (°)

≥30

Scan Structure

The sides of the frame are adjustable in height and extend outward for vertical sweeping, driven by a hydraulic motor with adjustable rotational speed.

Scanning Efficiency

≥96%

Scan Disk Accessories

Scanning bracket, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor

Work Noise (dB)

<88, compliant with GB7258 standard

Scanning expansion diameter (mm)

φ800-900

Driven Type

4×2 rear-wheel drive

Scanning Count

2

Suspension Type

plate spring

Brush count per disc

22

Number of steel plate spring springs

Various configurations such as-/-, 2/-, 2/4, 3/-, 3/4, 3/5, 3/9+6, 4/-, 4/5, 4/9+6, and 9/9+6

Scanning Disk Inclination

Anterior tilt: 5°–15°; lateral tilt: 5°–10°

Braking Type

Double-circuit pneumatic brake, drum type

Nozzle Structure

Double-suction nozzle with wide intake; hydraulic + spring floating suspension; equipped with 8 built-in high-pressure nozzles

Braking distance at full load at 30 km/h (m)

≤10

Straw diameter (mm)

φ180

Maximum Speed (km/h)

102、89

Straw Brands

NORRES

Minimum turning radius (m)

8

Walking wheel bearing

SKF (Skifer)

maximum gradability

≥30%

Walking Wheel Outer Ring

Stellana

clutch

Single-piece dry diaphragm spring clutch, hydraulically operated

Nozzle and straw wind speed (m/s)

50~65

transmission

Huawo 8-speed transmission (with synchronizer)

Nozzle negative pressure (mmH₂O)

380

Fuel consumption per 100 kilometers (L)

≤14

Nozzle rigidity clearance from ground (mm)

5~8

Daily Operation Fuel Consumption (L)

≤8

Additional Configuration

Reverse parking voice alarm, rear electronic control unit, manual emergency lifting system

Fuel consumption per 10,000 square meters of work area (L)

≤3

Task Function

Road surface cleaning, sweeping, curb washing, low-pressure flushing, spray dust removal, high-pressure roller cleaning

Dust suppression and water spraying method

Low-pressure mist

Box Material

Stainless steel trash bin, equipped with a high-pressure self-cleaning nozzle

High-pressure Water Pump Brands

GTM

Overall vehicle advantages

The large-capacity water collection tank and trash bin feature prefabricated components that are easy to maintain, with a cleaning efficiency of ≥96%.

High-voltage system components

Imported high-pressure pump, water filter, piping system, stainless steel spray bracket, and high-pressure nozzle

Auxiliary Engine Idling (r/min)

750~790

Dust removal and control area

Left, Right, and Front Scanning

Maximum RPM of the auxiliary engine (r/min)

2400

Vacuum cleaning and dust removal location

Inside the suction port of the suction cup

Maintenance Requirements

The main and auxiliary engines share a common fuel tank, with the fuel filter element being replaced periodically.

Control Type

Electronic Control, One-Click Operation

After-sales Service Policy

Comprehensive vehicle inspection under all driving conditions; nationwide warranty coverage; lifetime maintenance services.
