Main Technical Parameters Table

Product Brand

Cheng Liwei Brand

Number of steel plate spring springs

7/9+6、8/10+8、8/9+6、11/10+8、3/10+8

product name

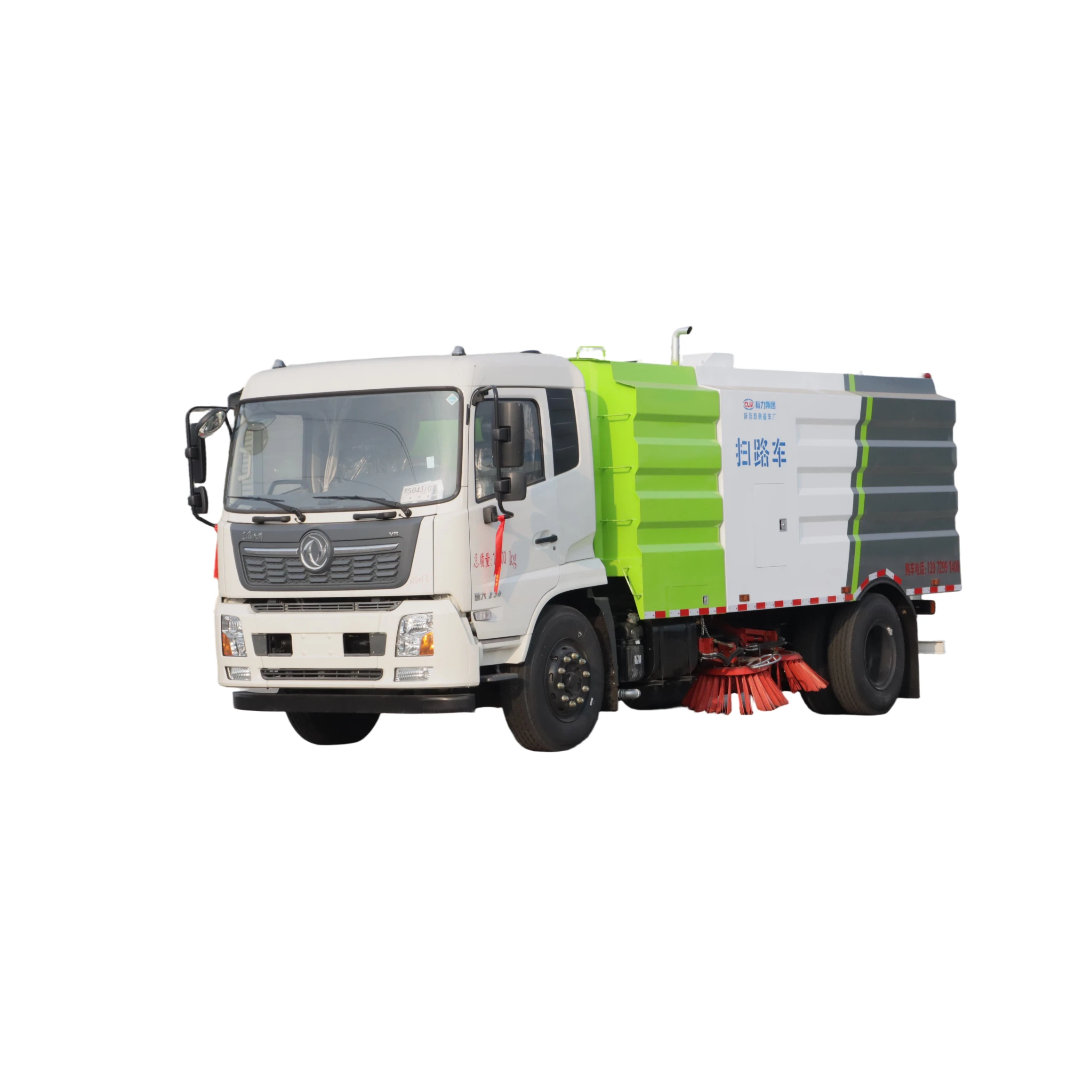

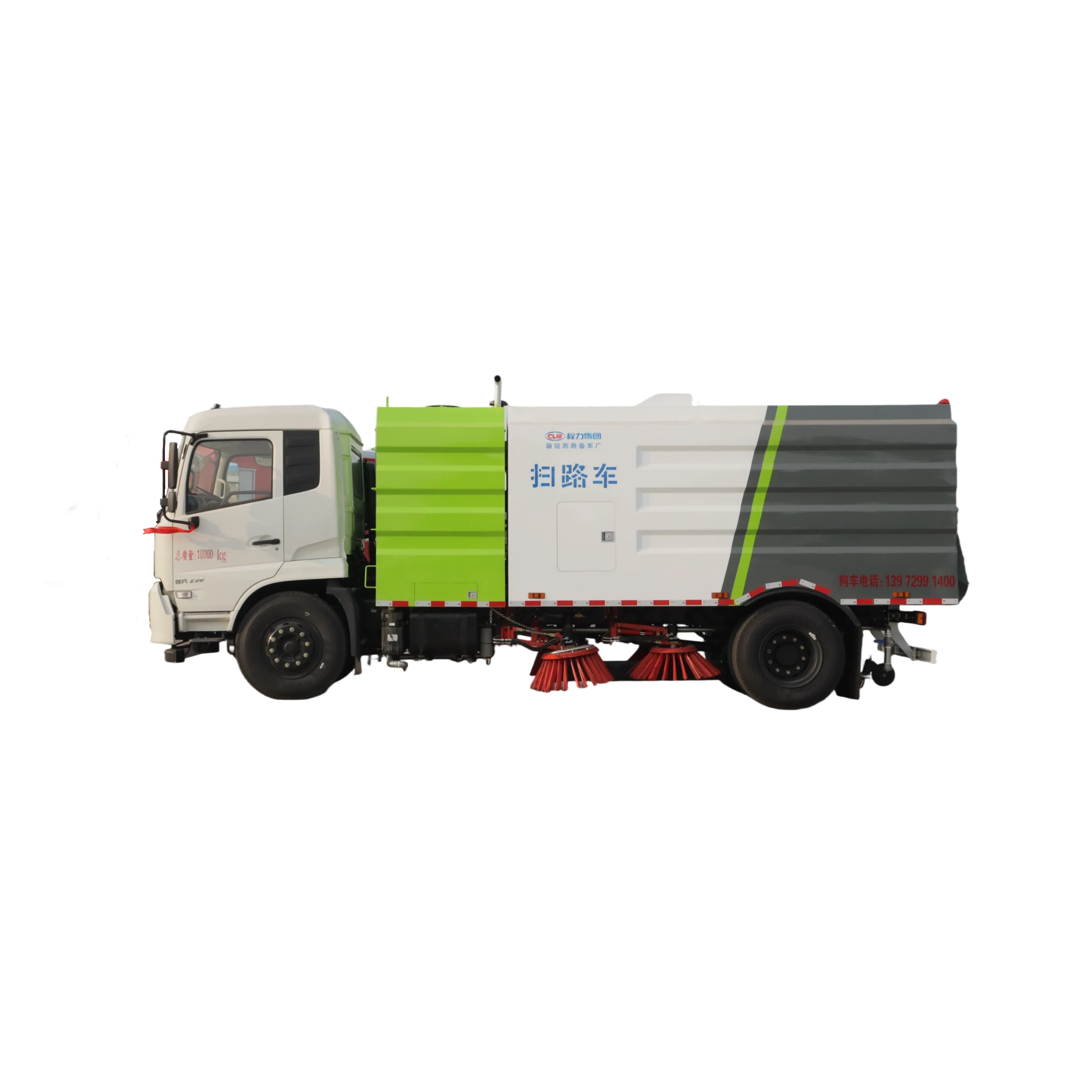

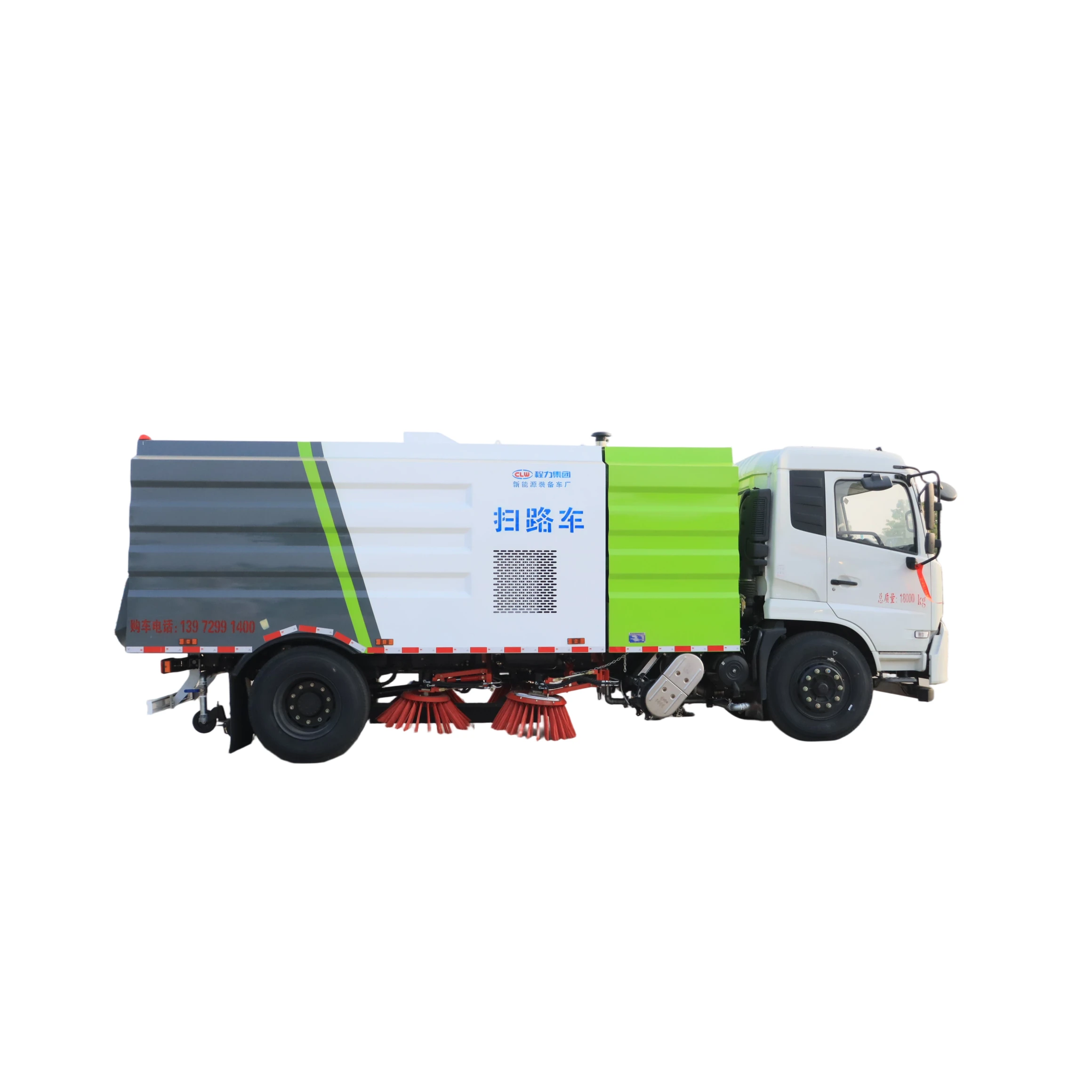

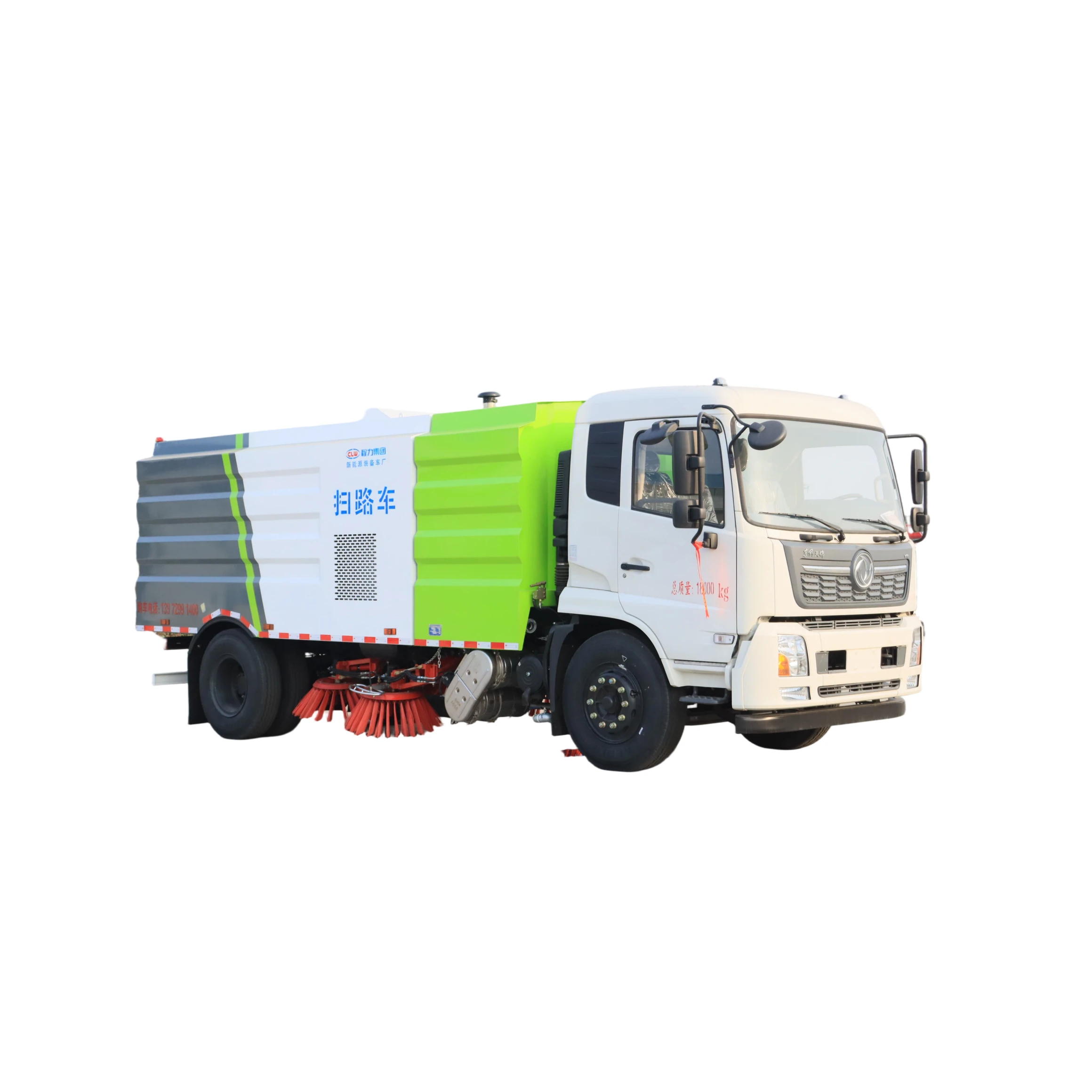

CLW5180TSLD6 Road Sweeping Vehicle

Fuel Types

diesel oil

Product Number

APVG06XZ03V

effluent standard

GB17691-2018 National Standard Grade VI

gross mass （kg）

18000

engine type

B6.2NS6B210、D6.7NS6B230

Rated load capacity (kg)

8190、8125

Engine Displacement (ml)

6200、6200

curb weight （kg）

9680

Engine Power (kW)

154、169

Maximum number of passengers in the cab (people)

2、3

Security Configuration

Q235A carbon steel; the left and right side protections consist of brushes mounted at a height of 180 mm above ground; the rear lower protection is welded together with dimensions of 50×120 mm and located at a height of 470 mm above ground.

Angle of approach/angle of departure (°)

17/25

ABS Model/Manufacturer

3631010-C2000, ABS8, 4460046450, JABS; Dongke Kenuoer, Weiboke, Jiaozuo Boruike

Front/Side Suspension (mm)

1400/1830、1430/1800

Auxiliary Engine

Kangji engine: 140 horsepower

wheel base （mm）

4700

Work Method

Suction-sweeping mixing, wet dust removal, electro-hydraulic control, hydraulic tipping discharge

Axial Load (kg)

6500/11500

Structure Layout

Centralized four-scan disc system + spray dust suppression device + central partition plate + rear-mounted suction nozzle

Maximum Speed (km/h)

89

Transmission Configuration

The auxiliary engine drives the fan and hydraulic system, equipped with an automatic clutch.

outline dimension （mm）

7930、7730、7430、7180、7030×2500×3120

Scan Function

Automatic obstacle avoidance and reset; adjustable speed

Chassis Size (mm)

7090,7240,7490,7790,8290,8790,9090,9120,8490,9870,9390,8335,8840,9140,8370,8890×2370,2470,2500,2430,2400×2750,2800,2840,2900,2950,3090,3000,2870

suction nozzle

Fully floating type, automatically leveling with the road surface

Chassis Model

DFH1180EX8

Scanning Width (mm)

3200

Chassis Brand/Manufacturer

Dongfeng Brand, Dongfeng Commercial Vehicle Co., Ltd.

Scanning Capacity (m²/h)

16000-64000

Number of Tires

6

Water Tank Capacity (m³)

4

tyre size

10.00R2018PR

Garbage Bin Capacity (m³)

8

front gauge （mm）

1876、1896、1920、1950、1914、1934、1980、2000、1815、1860

Core Components

Sanyo Motors, Schneider Control Switches, Hypris Electromagnetic Valve Sets, Continuously Variable Automatic Clutches, Maintenance-Free Centrifugal Fans, Polaris Electronic Water Pumps, Rear LED Arrow Lights, Manual Emergency Pump, Waste Lifting and Dumping Mechanism

Rear wheelbase (mm)

1820、1860、1800、1840

Vehicle Features

Prefabricated structure with universal and easily replaceable components; purely physical operation without secondary pollution
