Main Technical Parameters Table

product name

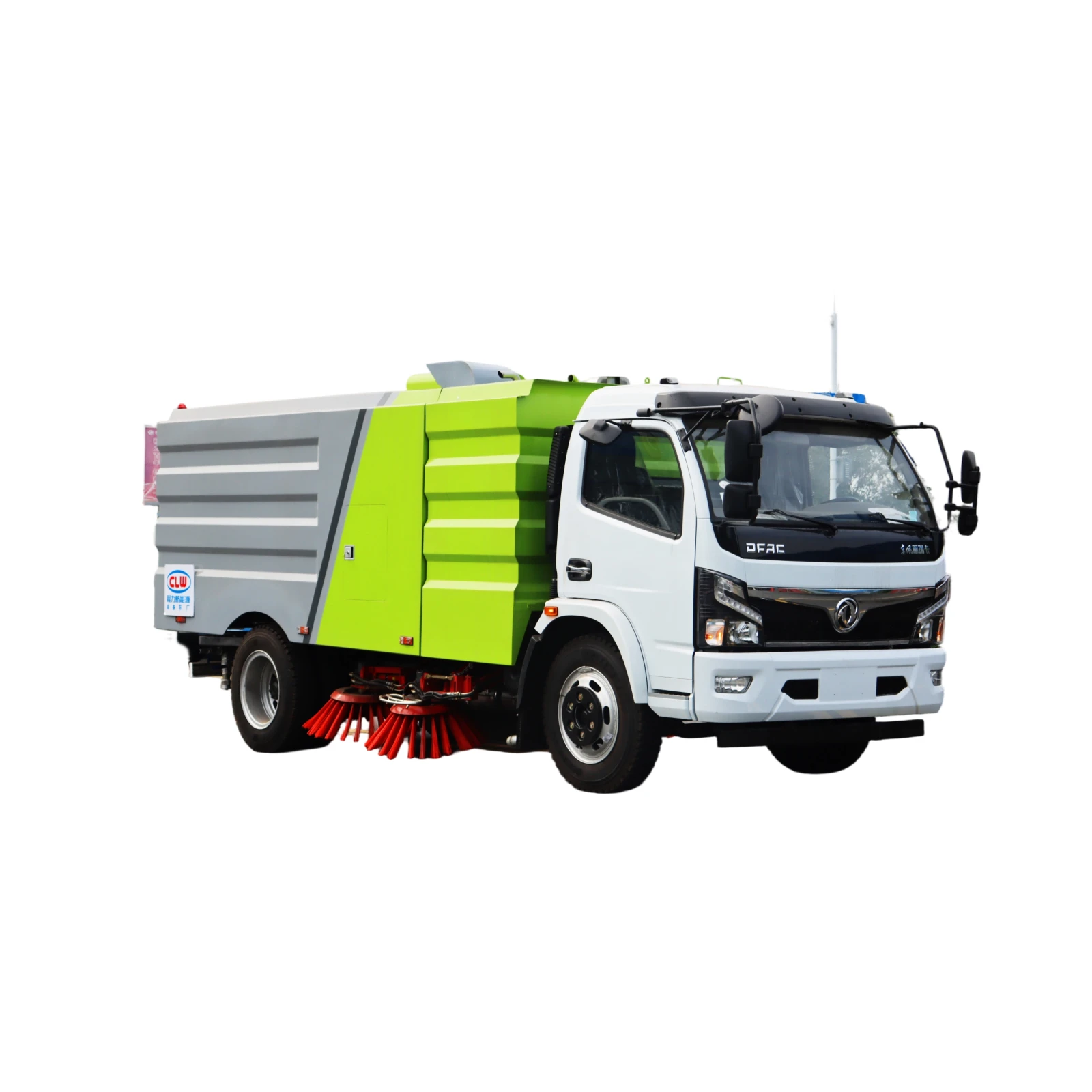

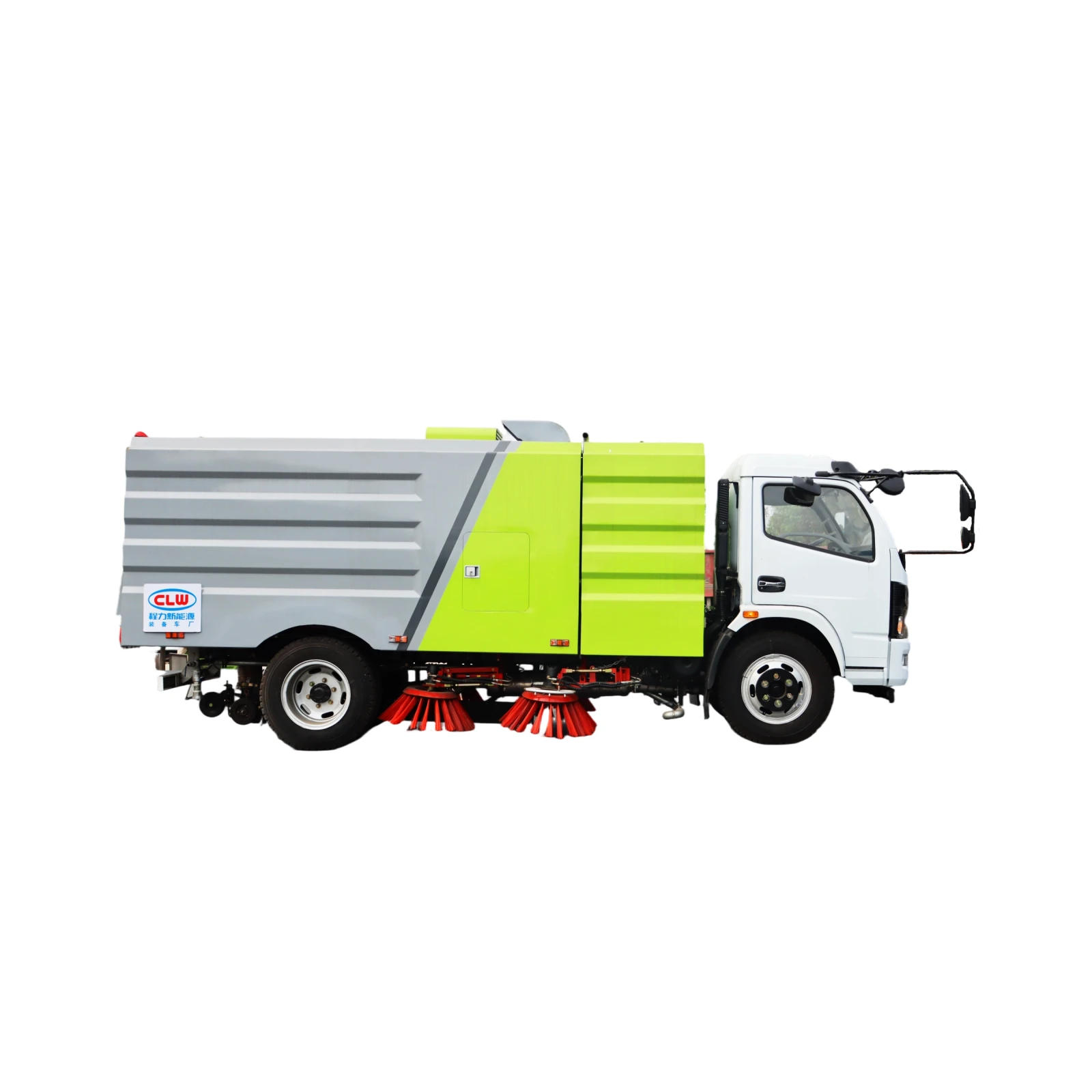

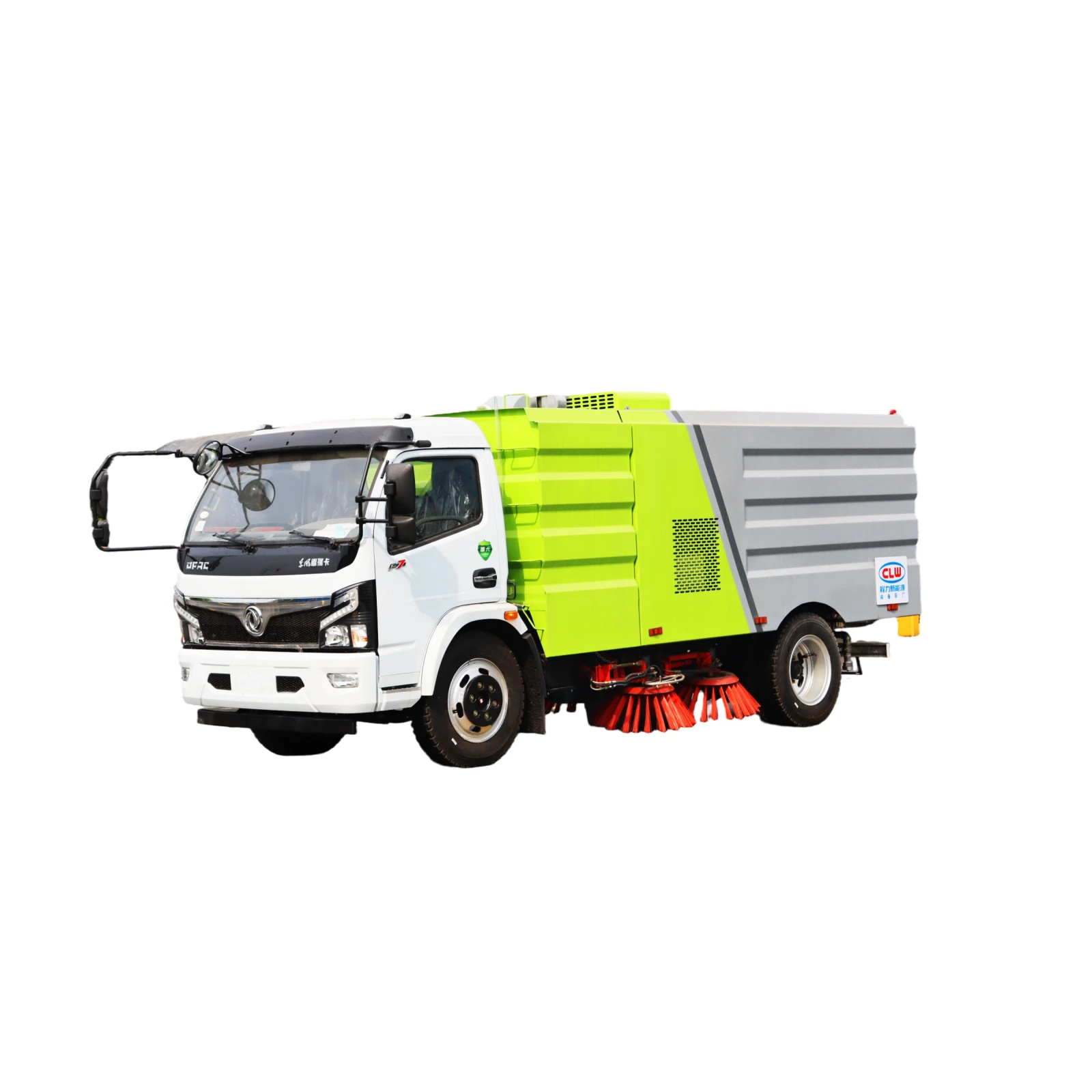

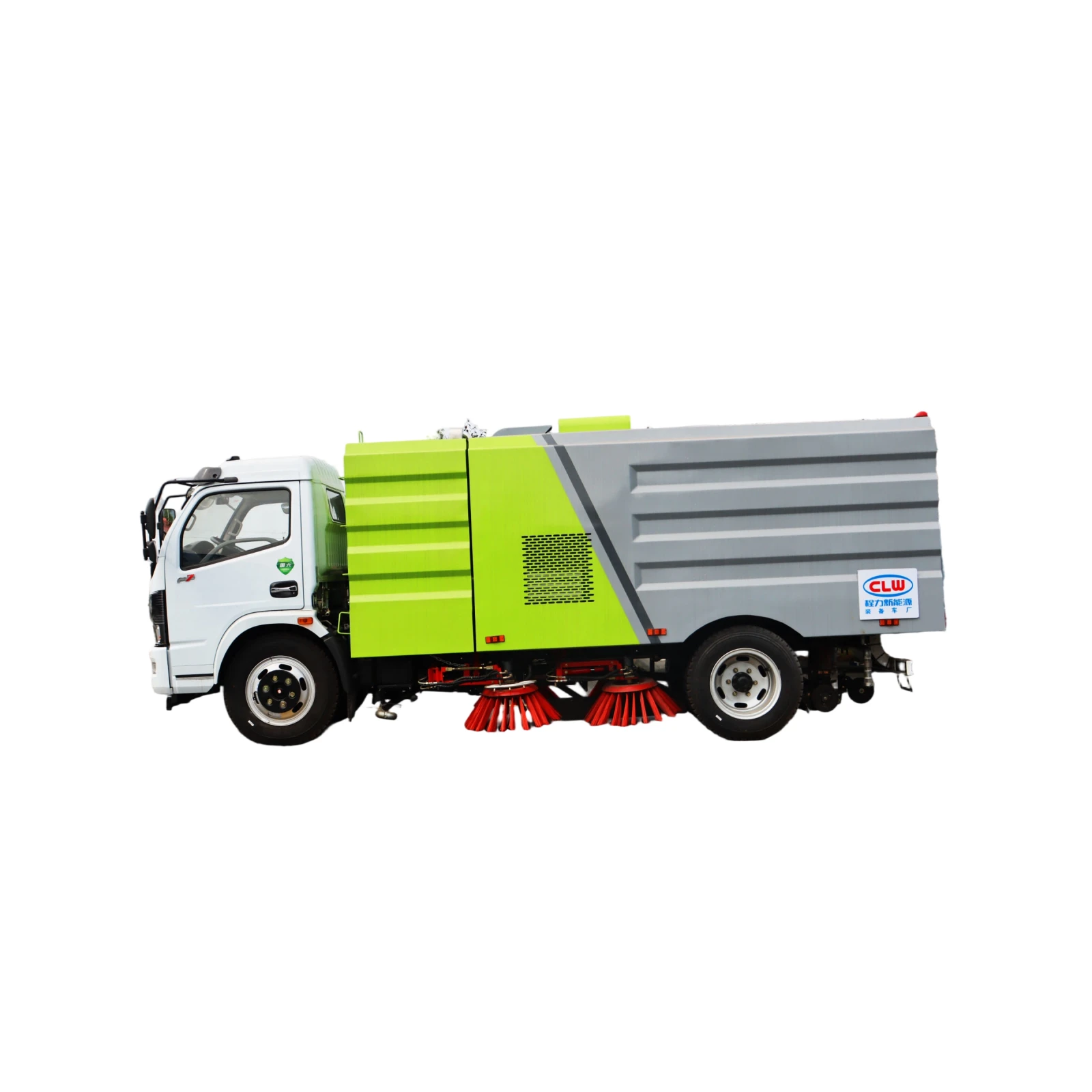

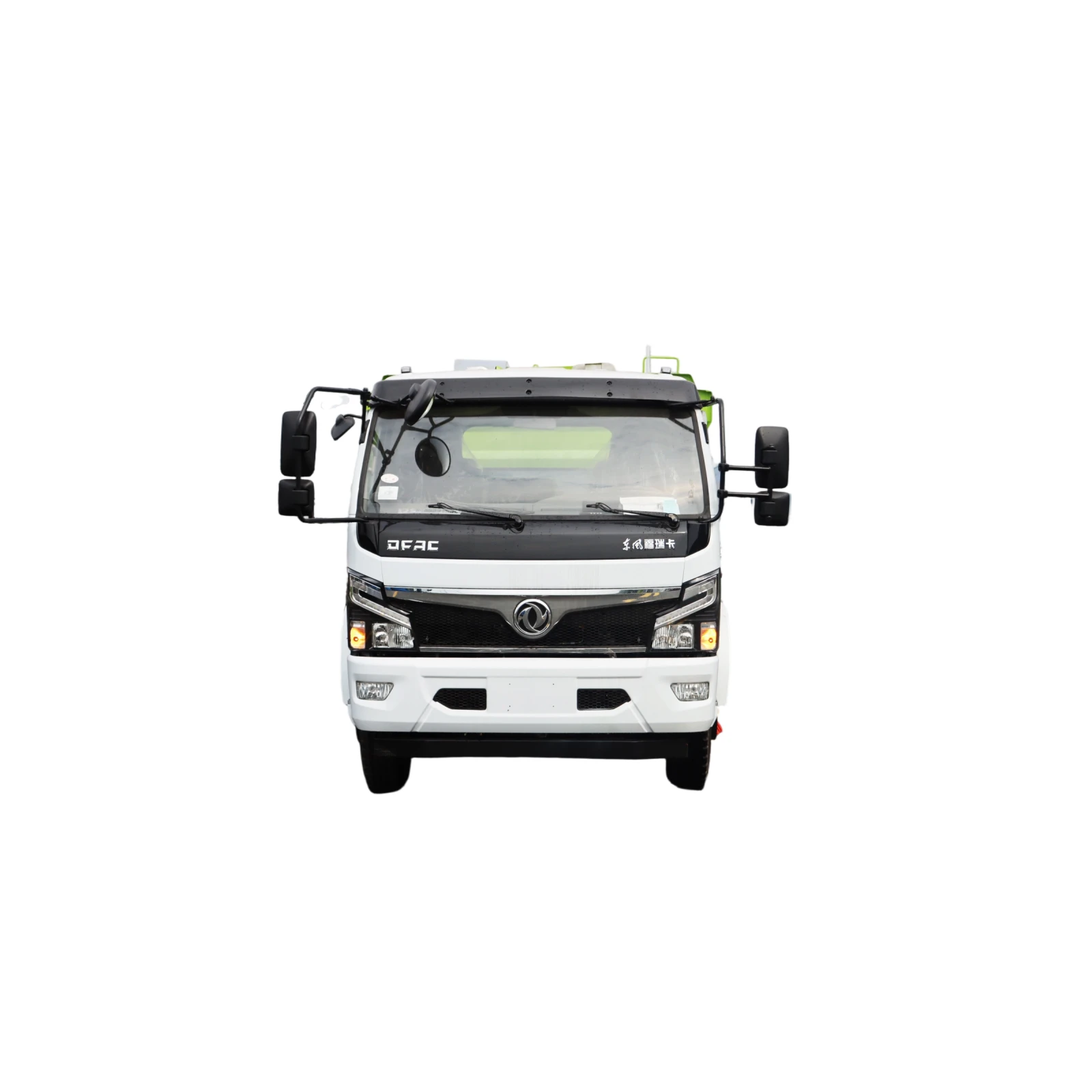

Cheng Liwei brand CLW5120TSL6 road sweeper

gross mass （kg）

11995

Rated Mass (kg)

6050、5500

Preparation Mass (kg)

5750、6300

wheel base （mm）

3800

External Dimensions (mm)

6500、6700、6850、6950、7000、7300×2200×2730

engine type

D25TCIF1、YCY30165-60

Engine Power (Ps)

110、121

Maximum number of passengers in the cab (people)

3

Front Suspension / Rear Suspension (mm)

1130/1770

Axial Load (kg)

4350/7645

Maximum Speed (km/h)

103

Side Protection

Q235A carbon steel, brush-shaped structure, 200 mm above ground

Lower rear protection

Q235A carbon steel, welded joint, dimensions 50×120 mm, height from ground 350 mm

ABS Model/Manufacturer

ABS/ASR-24V-4S/4M; Xiangyang Dongfeng Longcheng Machinery Co., Ltd.

The vehicle's wheelbase corresponds to

6500/3600、6700/3800、6850/3950、6950/4050、7000/4100、7300/4400（mm）

Work Method

Suction-sweeping mixing, wet dust removal, electro-hydraulic control, hydraulic tipping discharge

Structure Layout

Central four-scan disc + Spray dust suppression device + Central partition plate + Rear suction nozzle

Transmission Configuration

The auxiliary engine independently drives the fan and hydraulic system, equipped with an automatic clutch.

Scan Function

Automatically avoids obstacles and resets automatically; speed adjustable

suction nozzle

Fully floating type, automatically leveling with the road surface

Scanning Width (mm)

3200

Scanning Capacity (m²/h)

16000-64000

Water Tank Capacity (m³)

4

Garbage Bin Capacity (m³)

8

Core Configuration

Kangji model features a 140-horsepower auxiliary engine, Littor motor, Schneider control switch, Hypris electromagnetic valve assembly, continuously variable automatic clutch, maintenance-free centrifugal fan, stainless steel waste bin, Polaris electronic water pump, rear LED arrow lights, manual emergency pump, and waste lifting self-dumping system.

applicable scene

Cleaning, flushing, and dust suppression spraying operations for urban roads, highways, squares, airports, docks, tunnels, bridges, and road edges
