Main Technical Parameters Table

Product Brand

Cheng Liwei Brand

Rear wheelbase (mm)

1292

product name

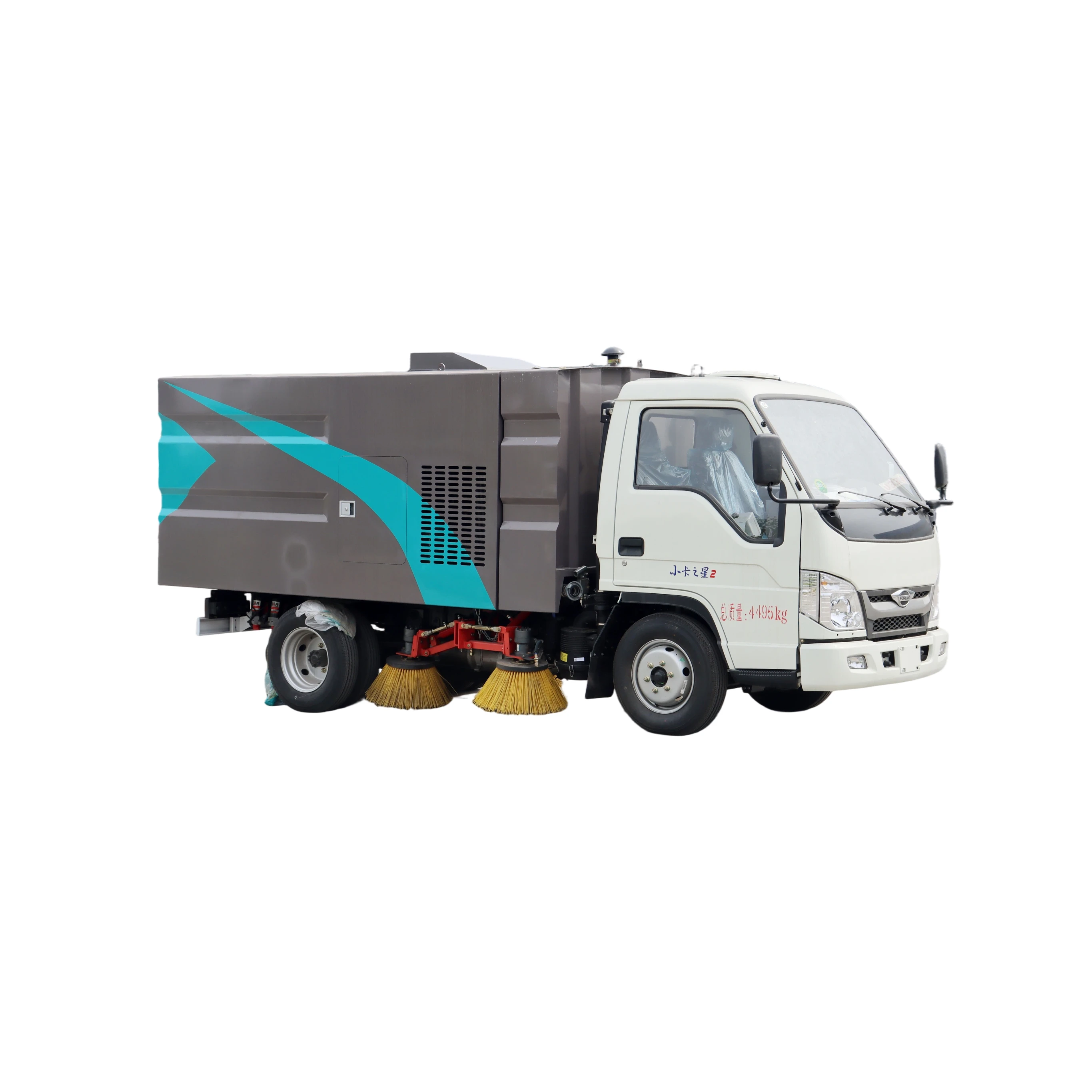

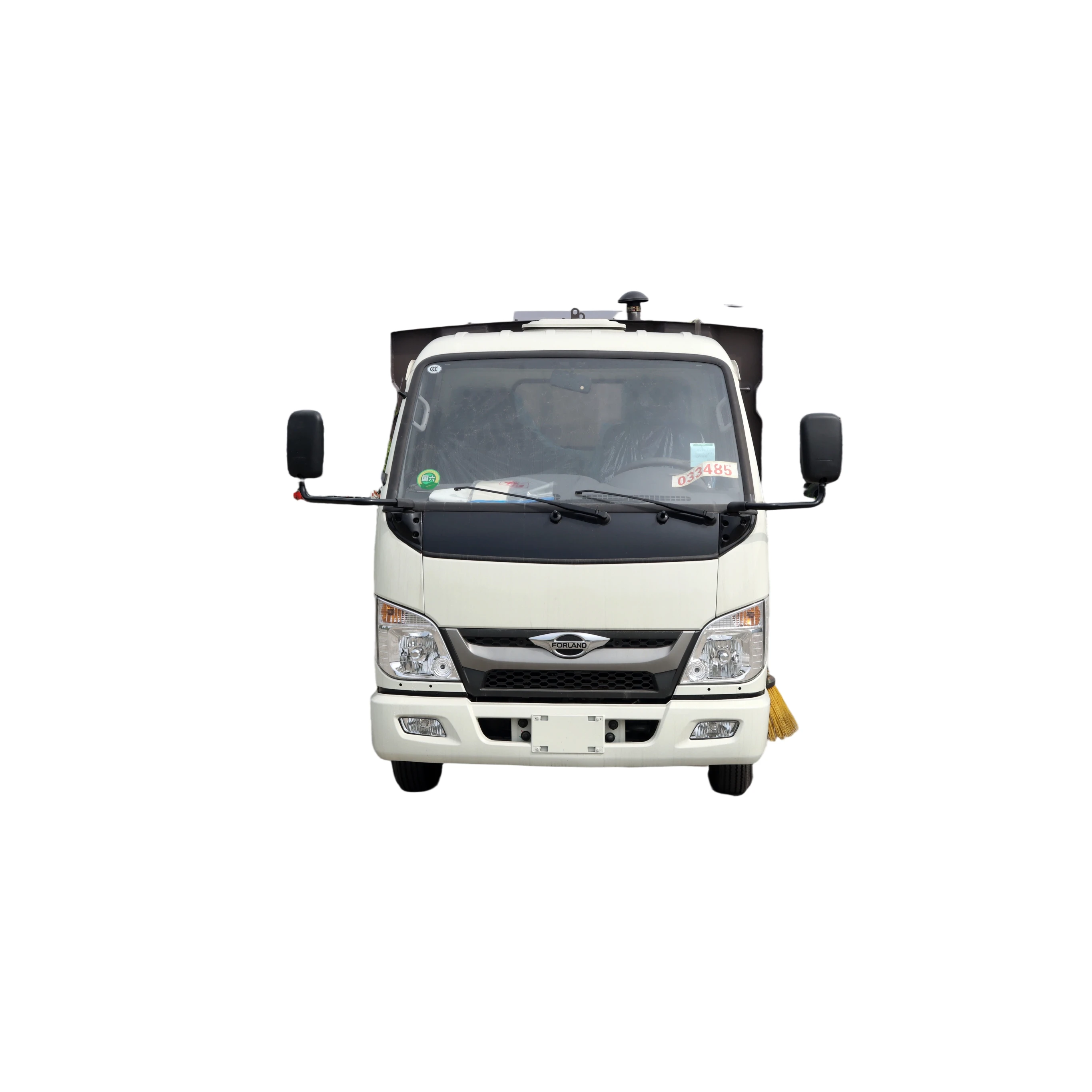

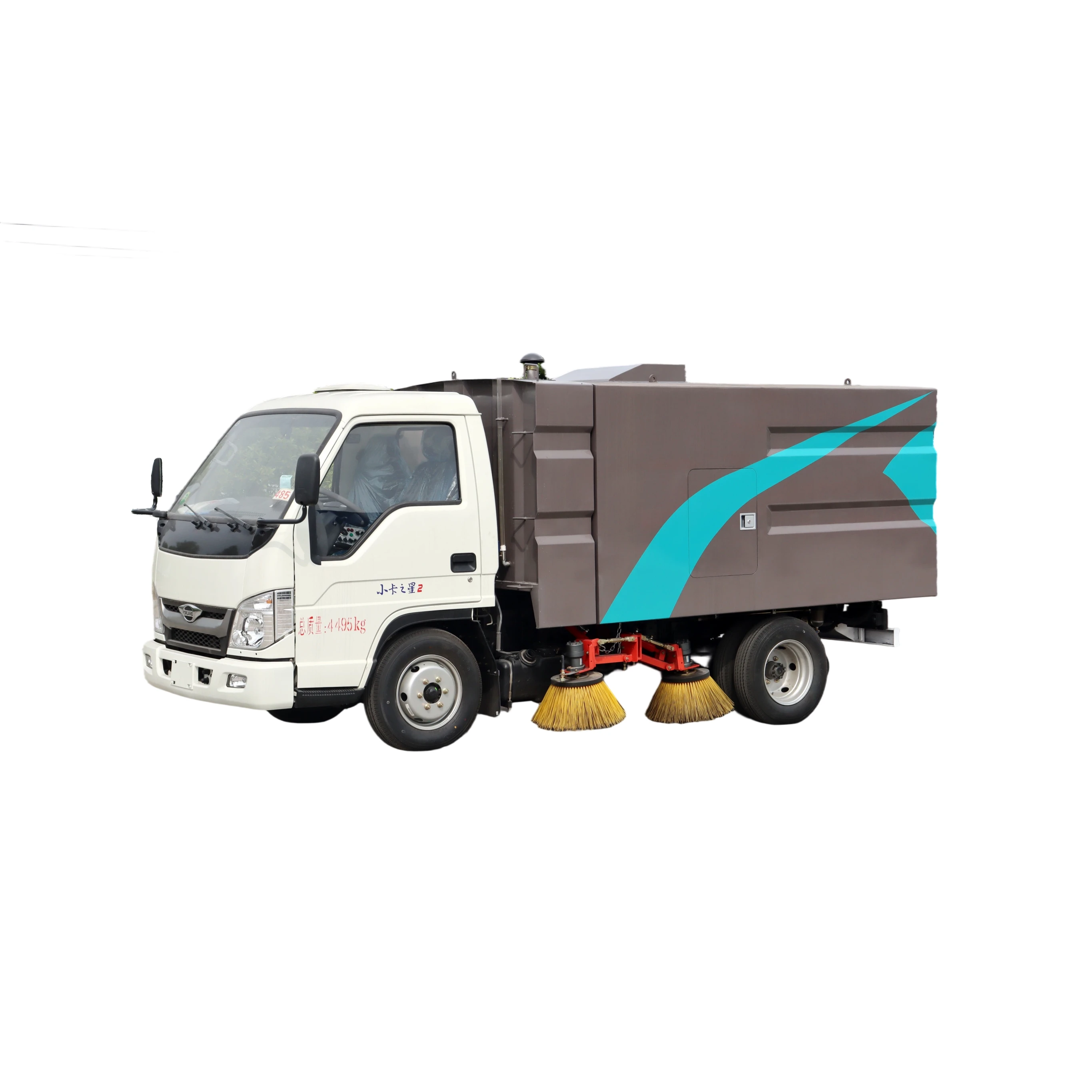

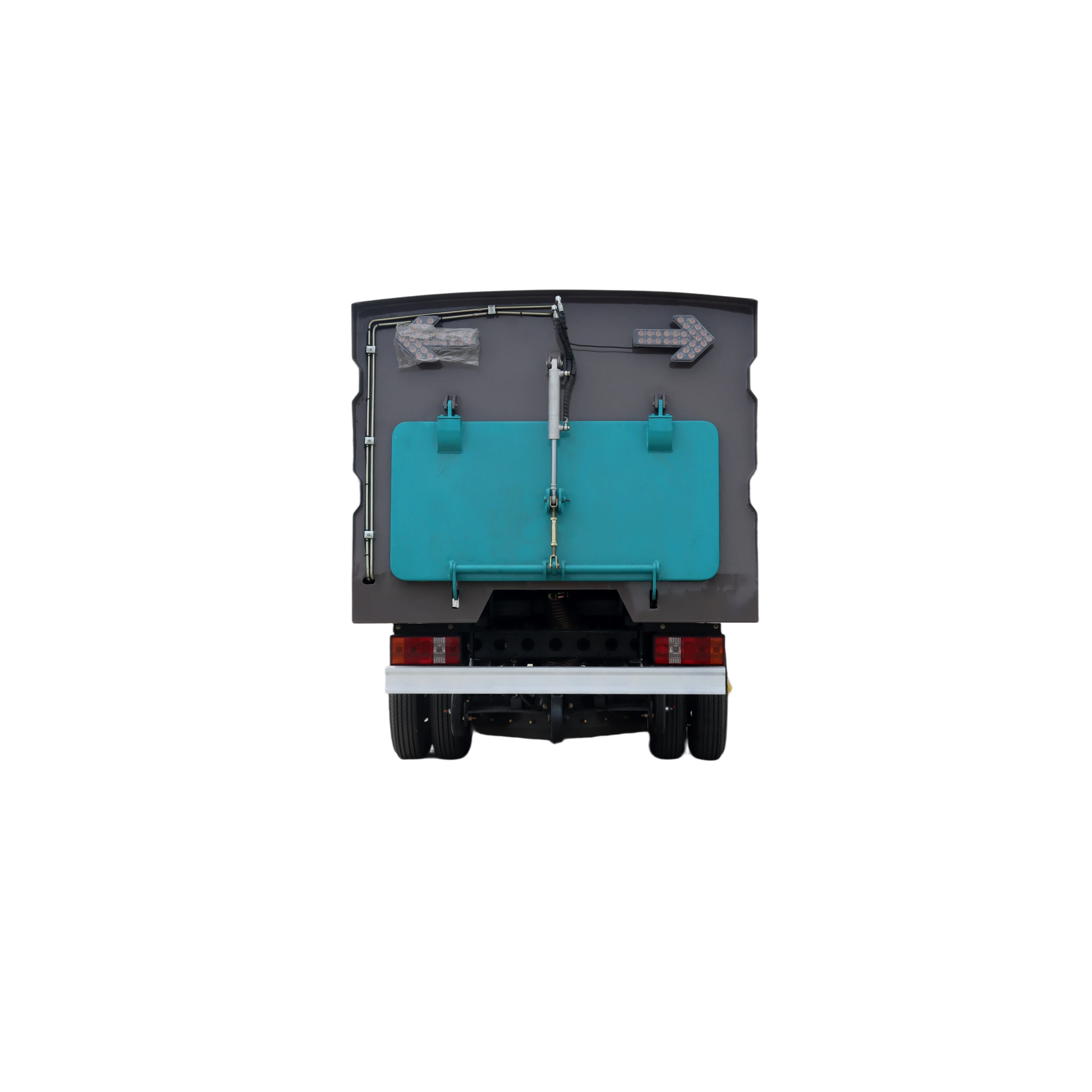

CLW5040TSLB6 Road Sweeping Vehicle

Fuel Types

diesel oil

Announcement Batch

351

effluent standard

GB17691-2018 National Standard Grade VI

Full Vehicle Model

CLW5040TSLB6

engine type

Q23-95E60、Q23-95C60

gross mass （kg）

4495

Engine manufacturing company

Anhui Quanchai Power Co., Ltd.

Rated Mass (kg)

515

Engine Displacement (ml)

2300

curb weight （kg）

3850

Engine Power (kW)

70

Maximum number of passengers in the cab (people)

2

outline dimension （mm）

5150×1760×2280

Angle of approach/angle of departure (°)

18/16

Water Tank Capacity (m³)

0.5

Front/Side Suspension (mm)

1115/1435

Garbage Bin Capacity (m³)

1.5

Axial Load (kg)

1710/2785

Work Method

Suction-sweeping mixing, wet dust removal, electro-hydraulic control, hydraulic tipping discharge

Maximum Speed (km/h)

110

Structure Layout

Centralized four-sweeping plates + spray dust suppression system + central partition plate + rear-mounted suction nozzle

Chassis Model

BJ1045V9JB3-55

drive system

The auxiliary engine independently drives the fan and hydraulic system, equipped with an automatic clutch.

Chassis Brand/Manufacturer

Foton Brand; BAIC Foton Motor Co., Ltd.

Scan Function

Automatic obstacle avoidance and reset; adjustable speed

number of axles

2

suction nozzle

Fully floating type, automatically leveling with the road surface

Number of Tires

6

Scanning Width (mm)

2000

wheel base （mm）

2600

Scanning Capacity (m²/h)

13000-40000

tyre size

6.00R1510PR

Secondary Engine Parameters

Inside the cloud: 42 kW / 57 horsepower

Number of steel plate spring springs

7/5+3、7/5+2、3/5+2、2/3+2

Core Configuration

Littrow motor, Schneider control switch, Hypris electromagnetic valve assembly, continuously variable automatic clutch, maintenance-free centrifugal fan, stainless steel trash bin, Polaris electronic water pump, rear LED arrow light, manual emergency pump, waste lifting and self-discharging mechanism

front gauge （mm）

1345

applicable scene

Cleaning, flushing, and dust suppression operations for urban roads, highways, squares, airports, docks, tunnels, bridges, and road edges
