Main Technical Parameters Table

product name

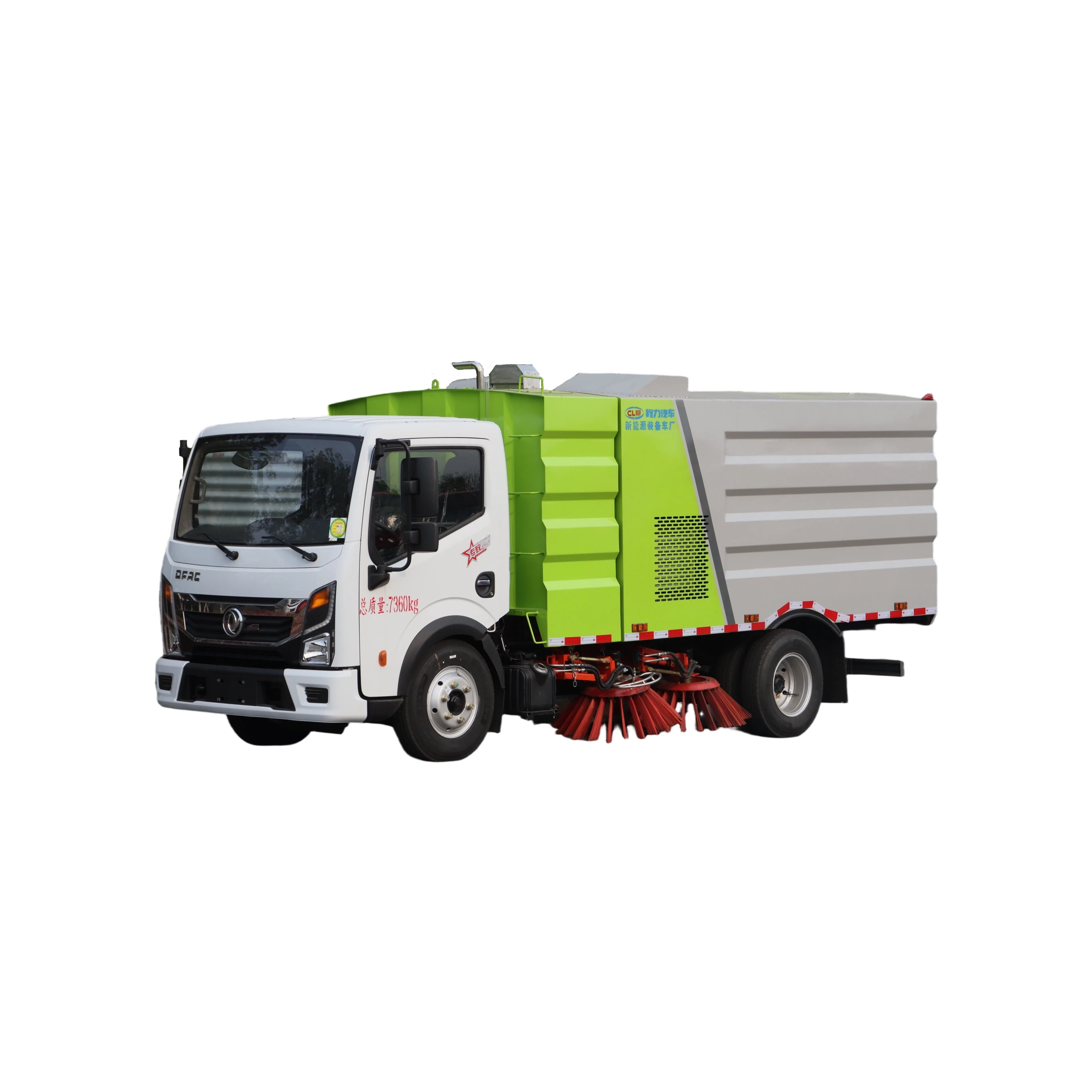

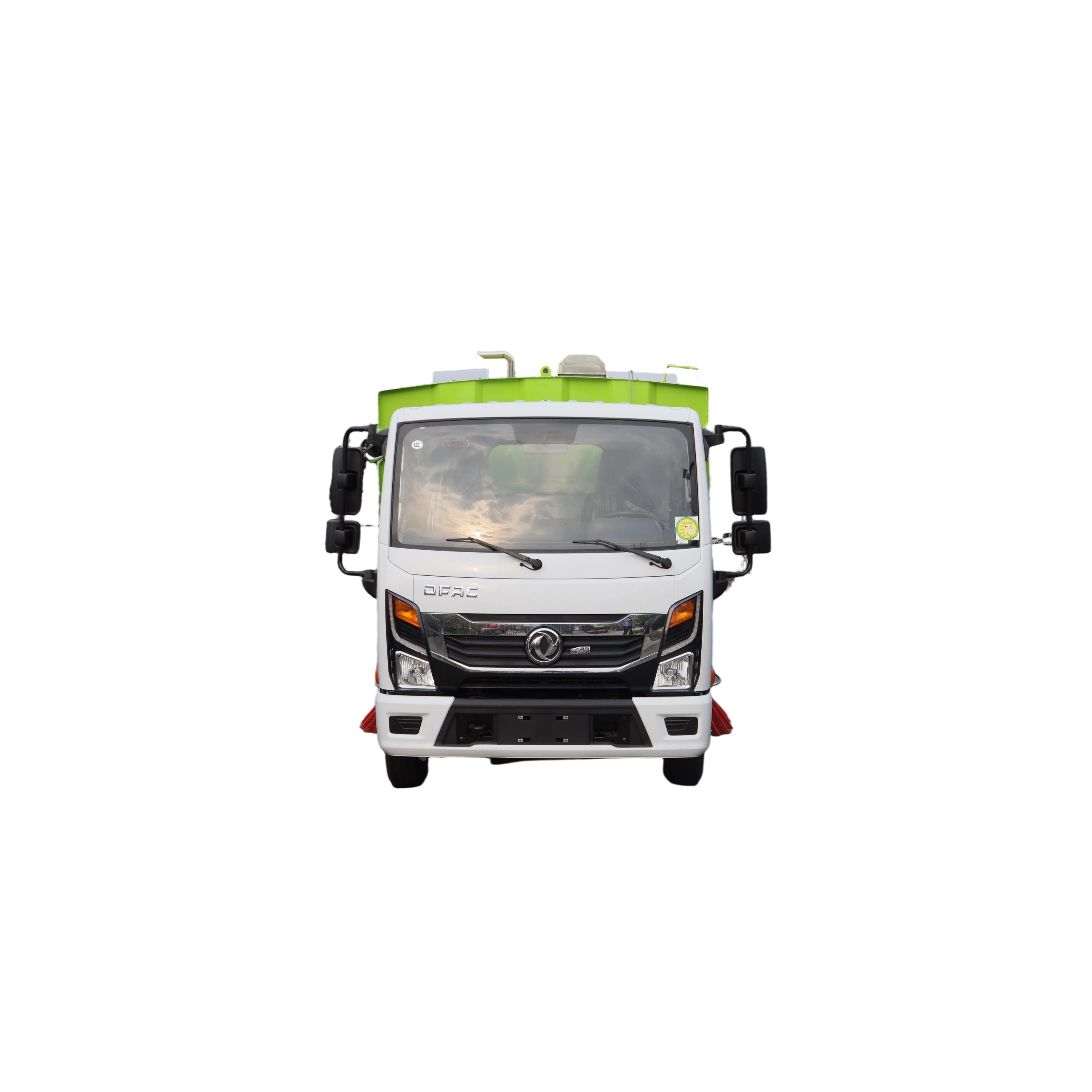

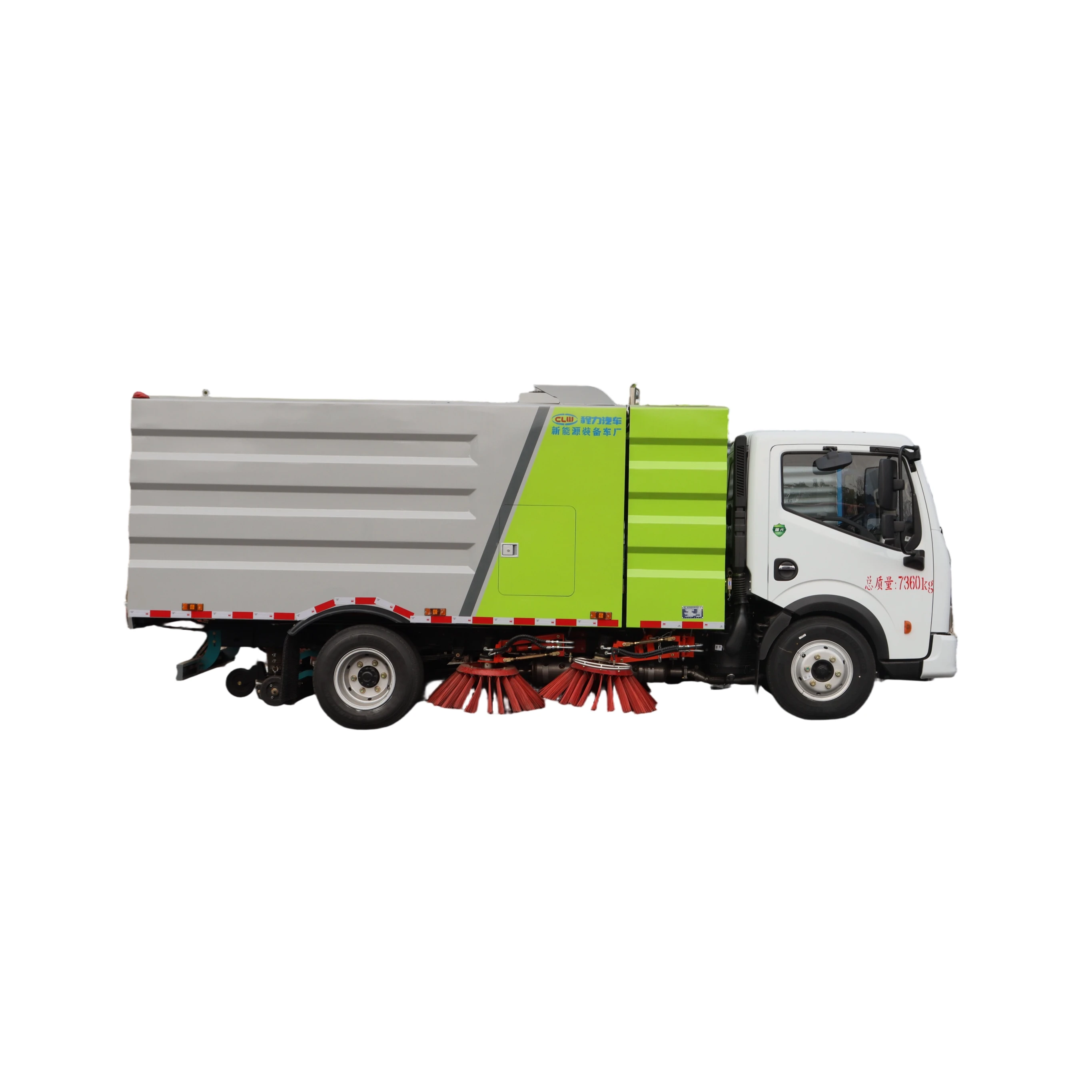

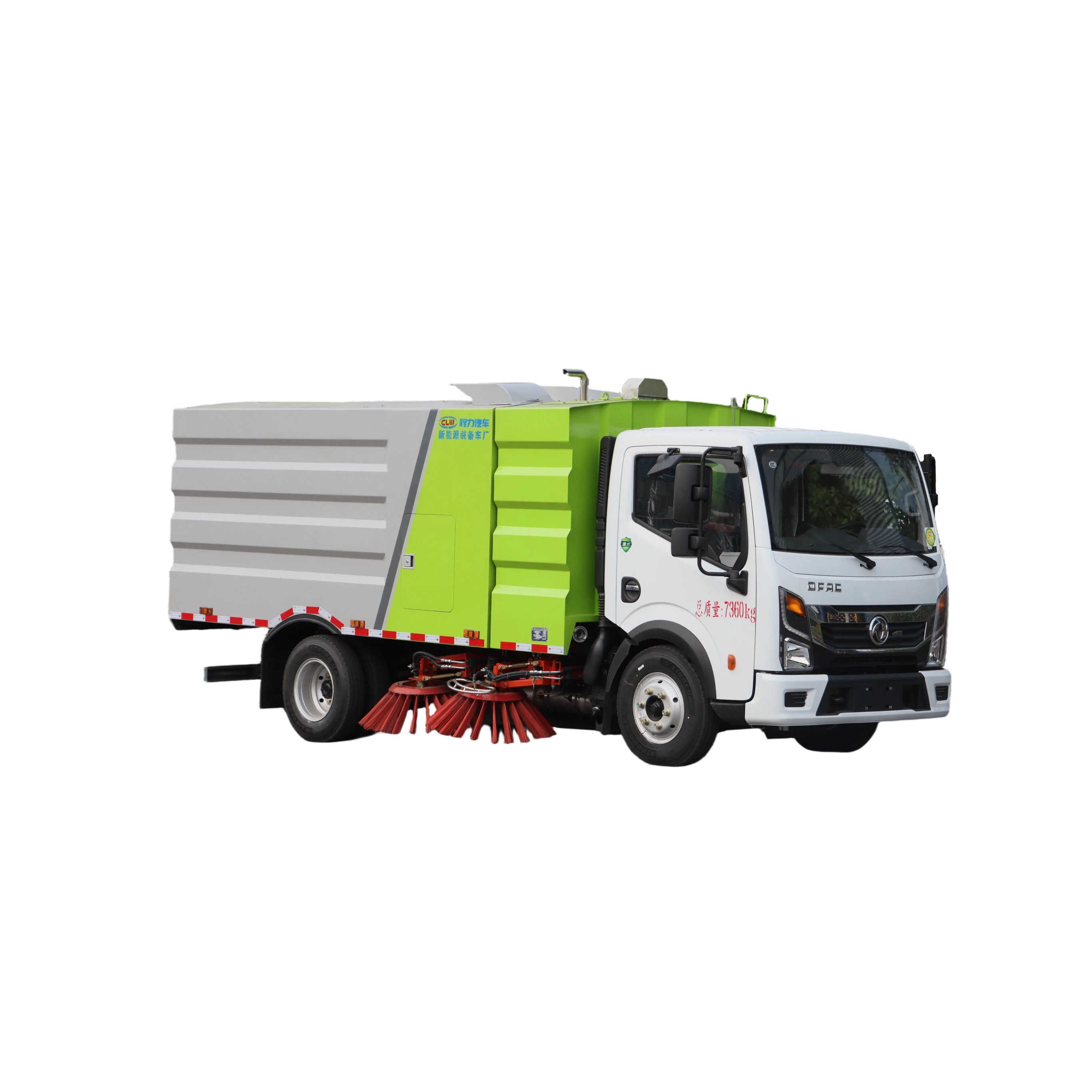

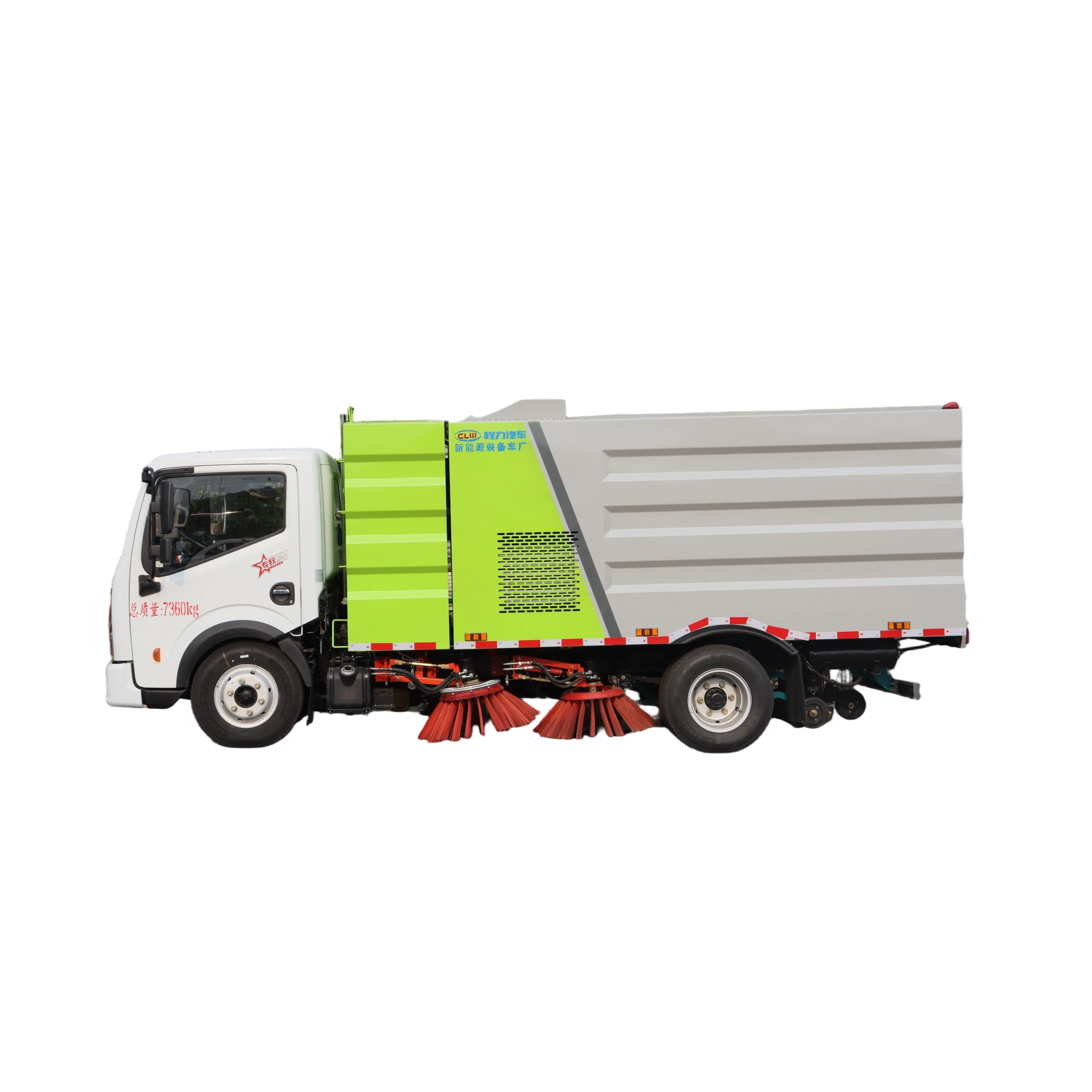

Chengli Brand CL5070TSLE6 Road Sweeping Vehicle

gross mass （kg）

7360

Rated Mass (kg)

2130

Preparation Mass (kg)

5100

wheel base （mm）

3308

External Dimensions (mm)

6200、5905、5505×2000×2590

engine type

YCY24140-60、CY4BK461、Q23-115E60

Maximum number of passengers in the cab (people)

2

tyre size

7.00R16、7.00R16LT

Maximum Speed (km/h)

110

Front Suspension / Rear Suspension (mm)

1055/1837、1055/1900、1055/1750

Post-Protection Configuration

Material: Q235; Connection type: bolted; Dimensions: 50×120 mm; Height above ground: 475 mm

ABS Model/Manufacturer

ABS/ASR-12V-4S/4M; Xiangyang Dongfeng Longcheng Machinery Co., Ltd.

Work Method

Suction-sweeping mixing, wet dust removal, electro-hydraulic control, hydraulic tipping discharge

Structure Layout

Central four-sweep cleaning plate + Spray dust removal system + Central partition plate + Rear suction nozzle

drive system

The auxiliary engine independently drives the fan and hydraulic system, equipped with an automatic clutch.

Scan Function

Automatic obstacle avoidance and reset; adjustable speed

suction nozzle

Fully floating type, automatically leveling with the road surface

Scanning Width (mm)

3200

Scanning Capacity (m²/h)

16000-64000

Water Tank Capacity (m³)

4

Garbage Bin Capacity (m³)

8

Core Configuration

Kangji auxiliary engine, Littor motor, Schneider control switch, Hypris electromagnetic valve assembly, continuously variable automatic clutch, maintenance-free centrifugal fan, stainless steel waste bin, Polaris electronic water pump, rear LED arrow lights, manual emergency pump, waste lifting and dumping mechanism

applicable scene

Cleaning operations for urban roads, highways, squares, airports, docks, tunnels, bridges, and road edges
