Main Technical Parameters Table

Product Brand

Chengli Brand

Announcement Batch

331

product name

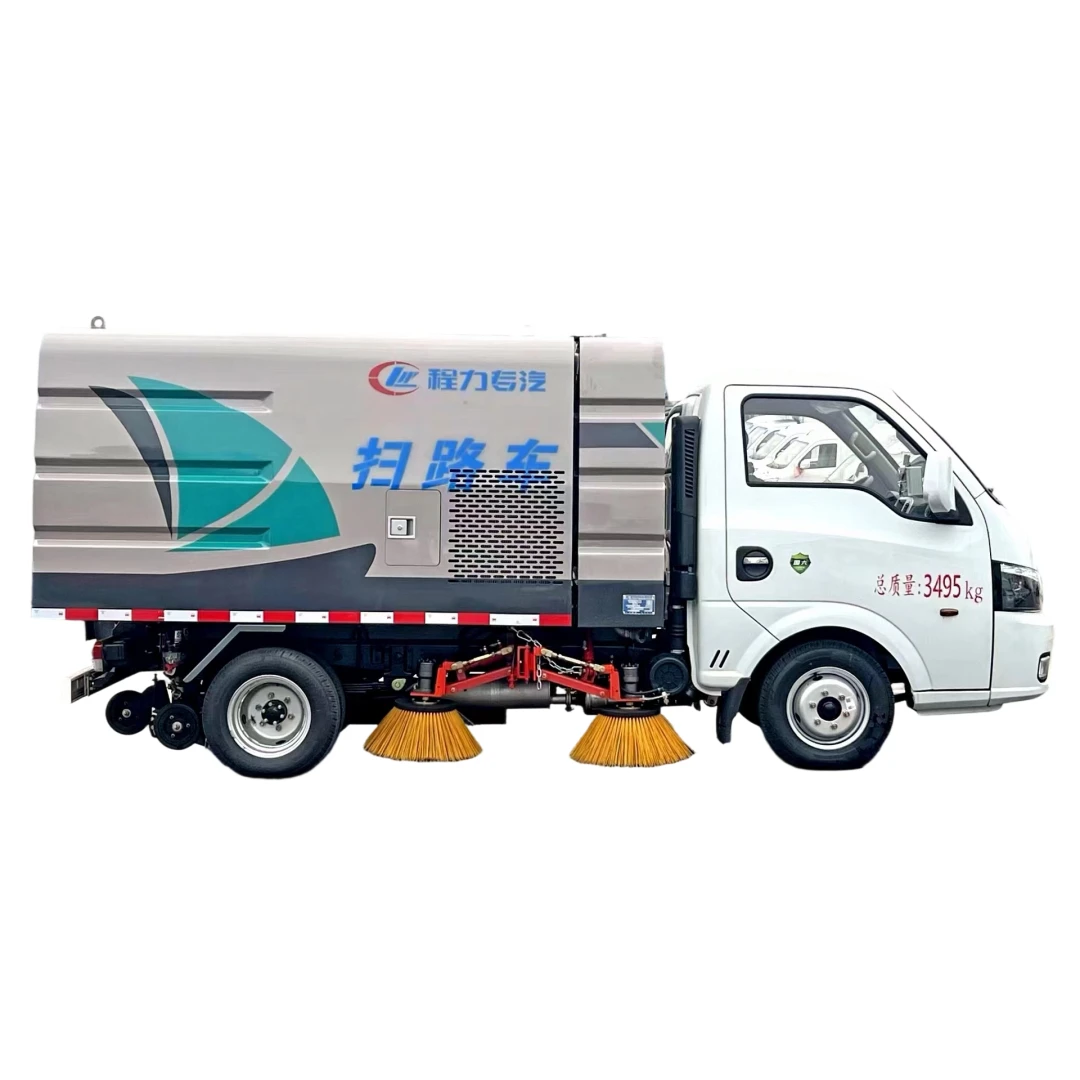

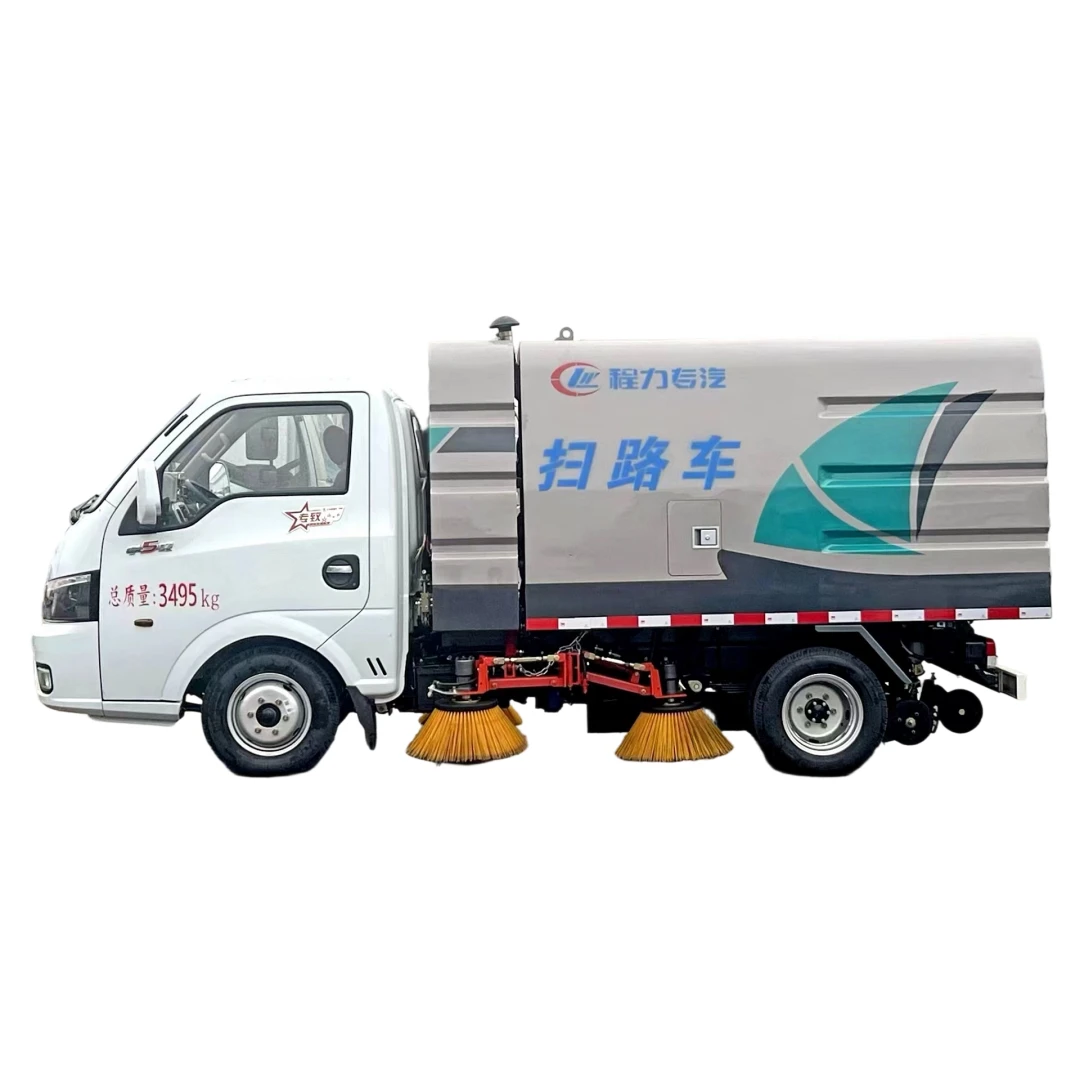

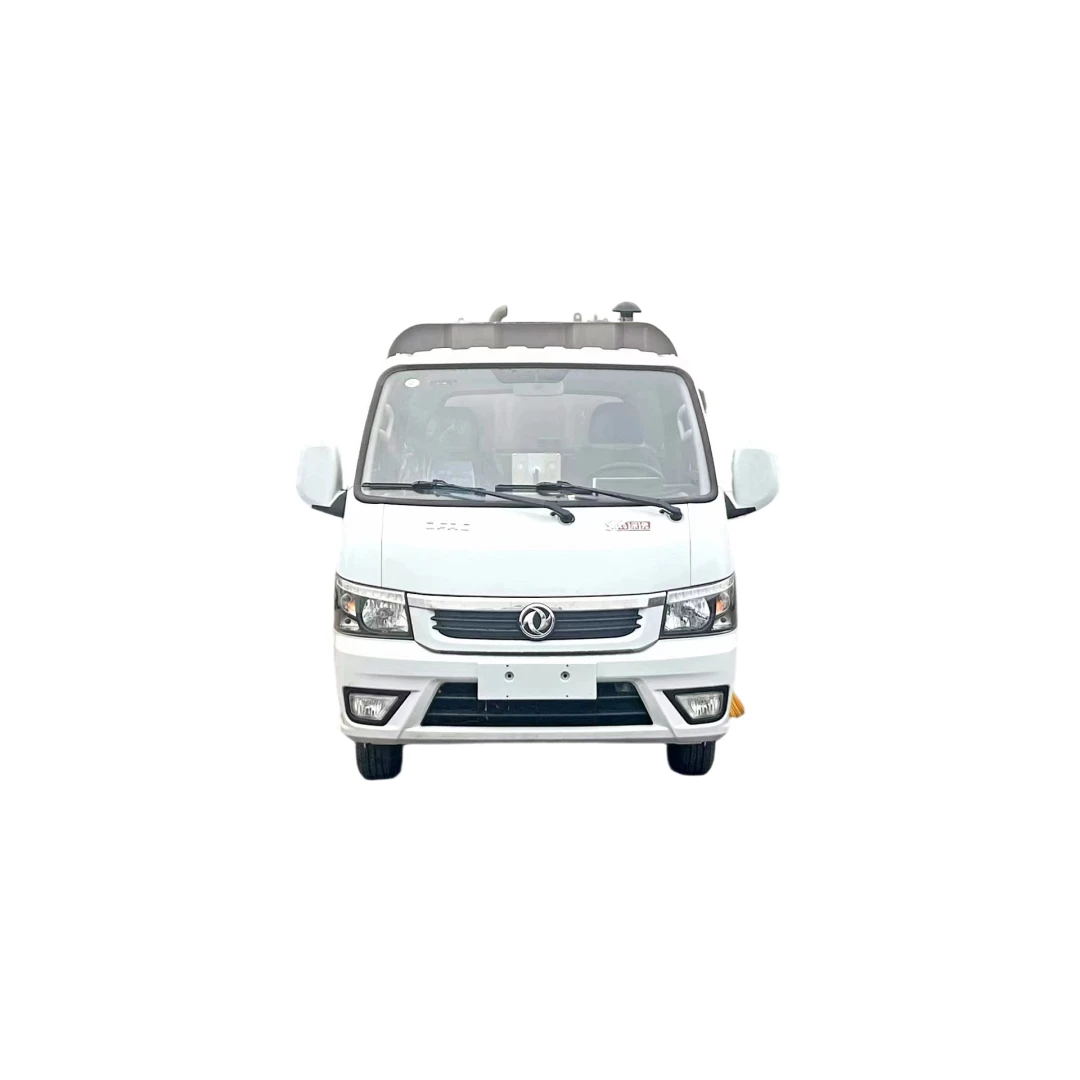

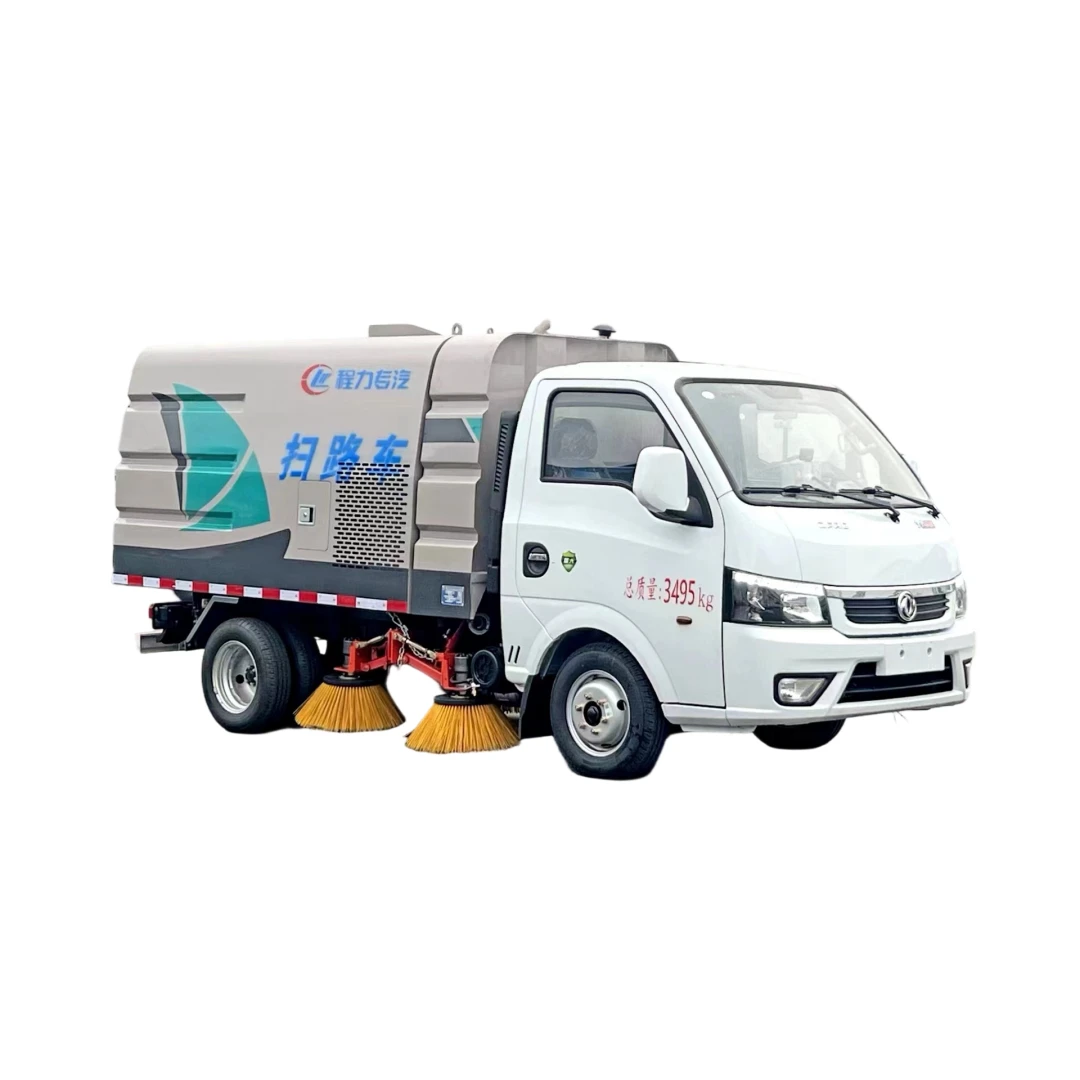

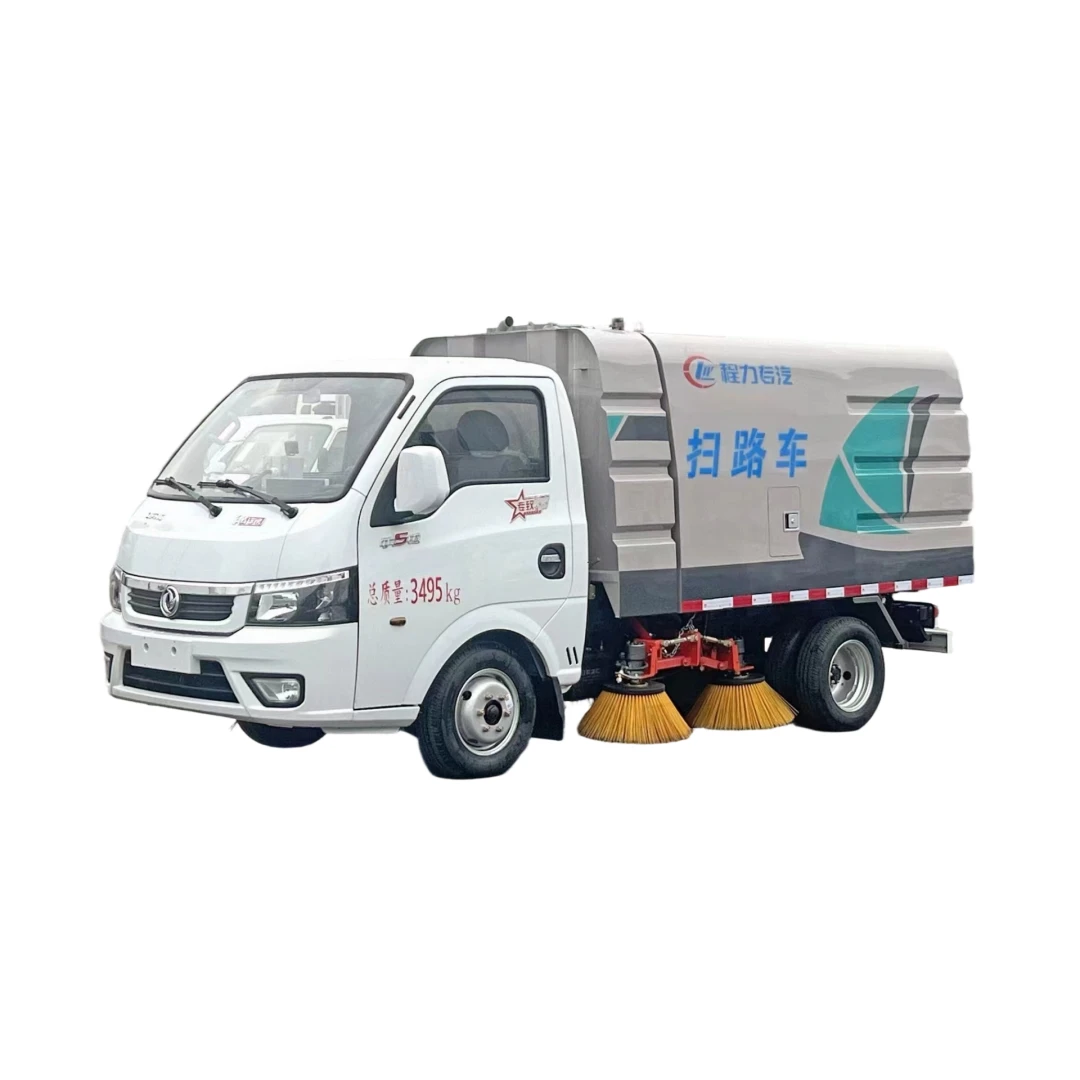

Chengli Brand CL5030TSL6GH Road Sweeping Vehicle

gross mass （kg）

3495

Rated Mass (kg)

195

curb weight （kg）

3170

Maximum number of passengers in the cab (people)

2

Angle of approach/angle of departure (°)

21/22

Front/Side Suspension (mm)

1181/1229

Axial Load (kg)

1300/2195

Maximum Speed (km/h)

100

outline dimension （mm）

5010、5210、5410×1690×2200

Length/Wheelbase (mm)

5010/2600、5210/2800、5410/3000

Main Engine Model/Power

LJ4A15Q6/79Kw

ABS Model/Manufacturer

APG3550500A, Zhejiang Asia-Pacific Electromechanical Co., Ltd.

Specialized Device

Garbage bin, water tank, cleaning brush

Work Method

Suction-sweeping mixing, wet dust removal, electro-hydraulic control, hydraulic tipping discharge

Structure Layout

Centralized four-sweeping plates + spray dust suppression system + central partition plate + rear-mounted suction nozzle

Transmission Configuration

The auxiliary engine drives the fan and hydraulic system, equipped with an automatic clutch.

Scan Function

Automatic obstacle avoidance and reset; adjustable speed

suction nozzle

Fully floating type, automatically leveling with the road surface

Secondary Engine Parameters

Inside the cloud: 42 kW / 57 horsepower

Core Components

Sanyo Motors, Schneider control switches, Hypris electromagnetic valve assemblies, continuously variable automatic clutches, maintenance-free centrifugal fans, stainless steel waste bins, Polaris electronic water pumps, rear LED arrow lights, manual emergency pumps, waste lifting and dumping mechanisms

Scanning Width (mm)

2000

Scanning Capacity (m²/h)

13000-40000

Water Tank Capacity (m³)

0.5

Garbage Bin Capacity (m³)

1.5

Vehicle Features

Prefabricated structure with fewer vulnerable components and convenient maintenance; purely physical operation without secondary pollution.
