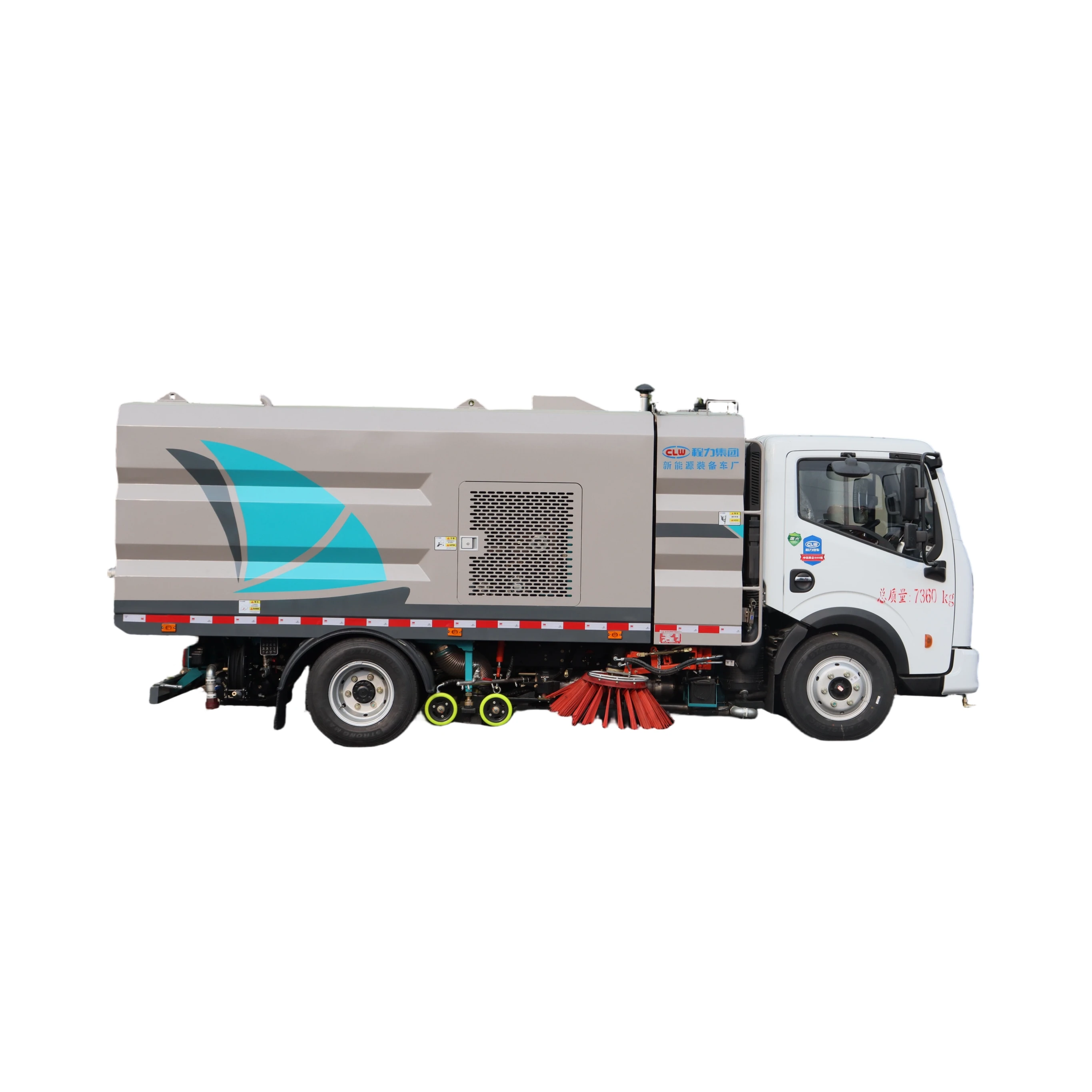

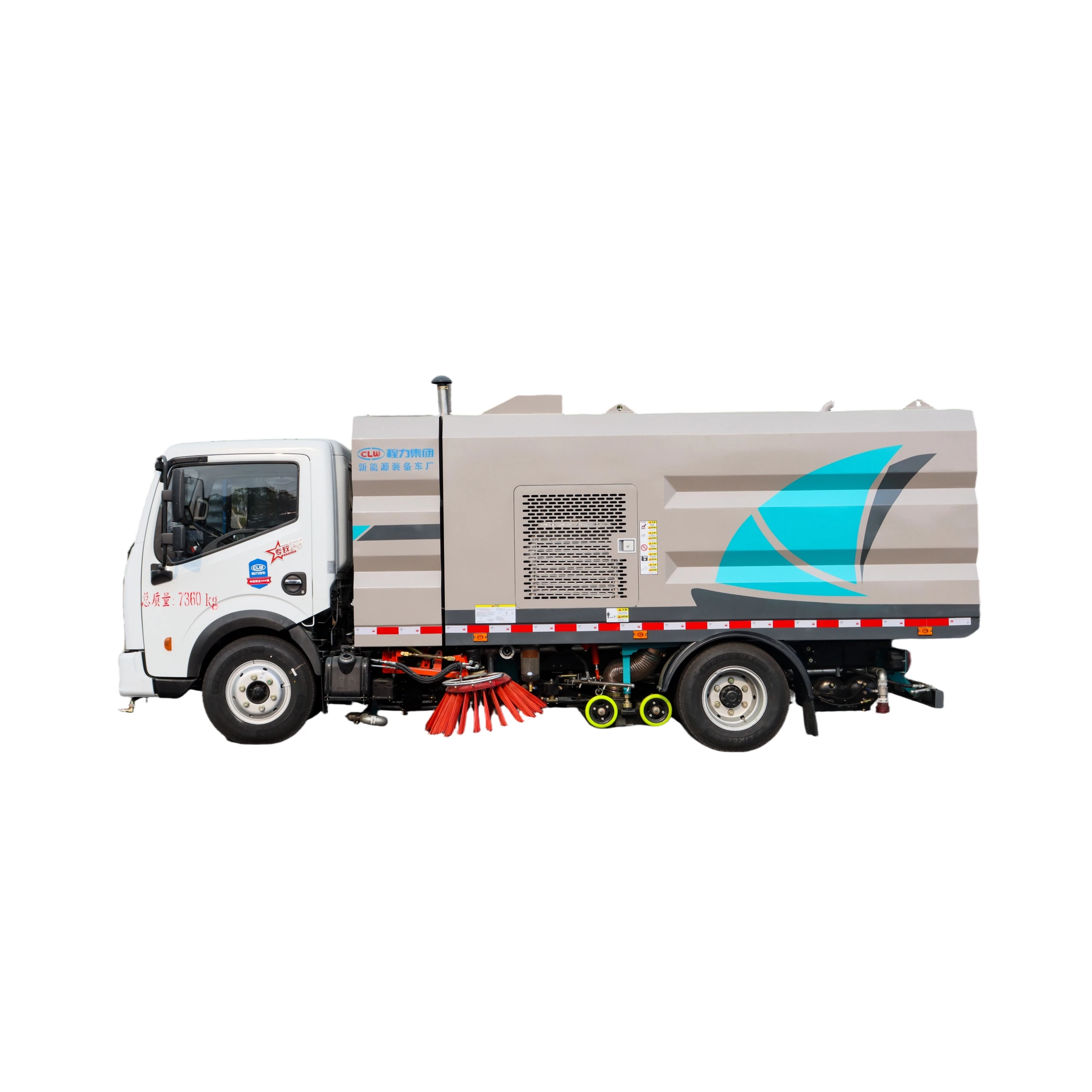

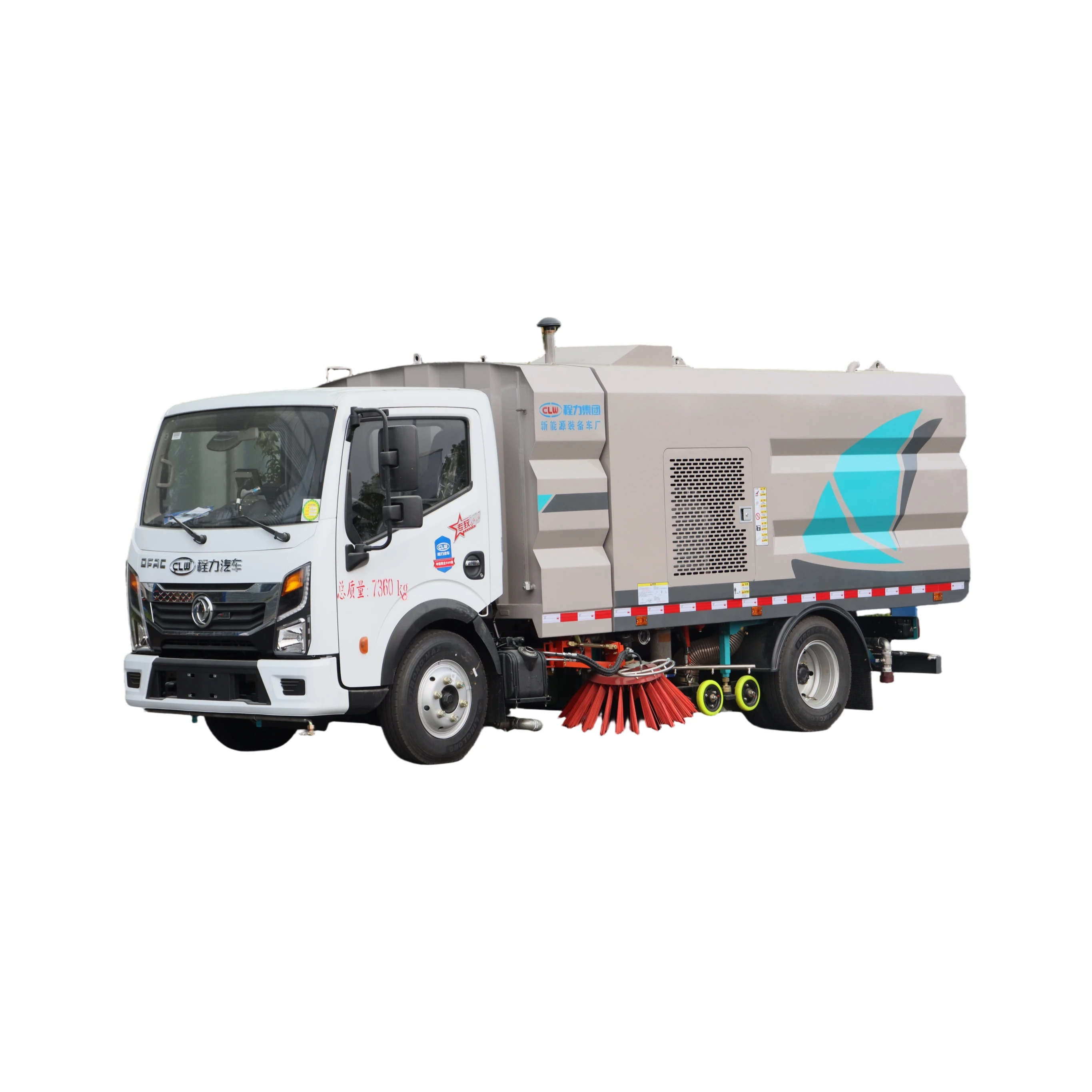

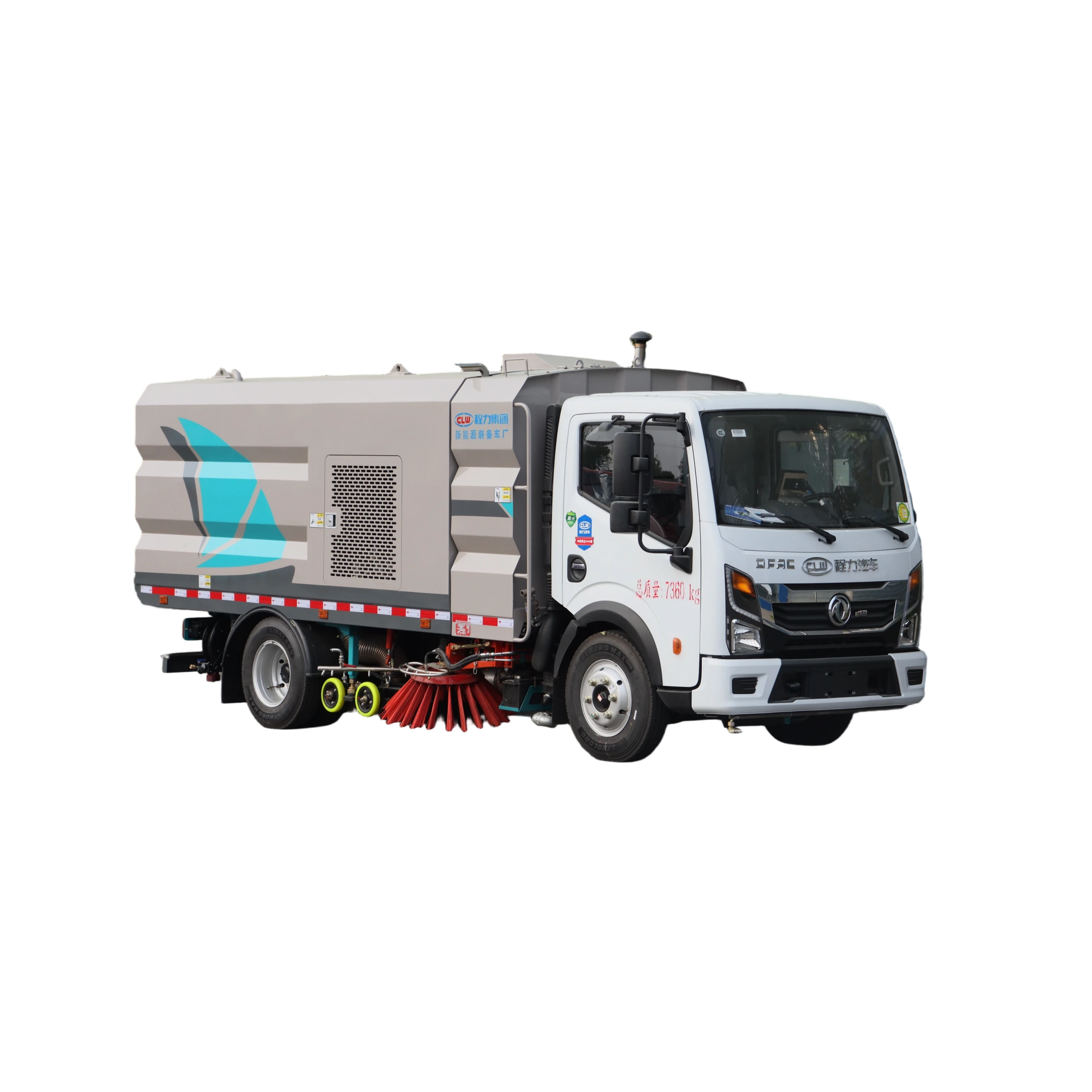

Main Technical Parameters Table

Full Vehicle Model

CL5070TXS6GX

Scanning expansion diameter (mm)

φ800-900

Chassis Model

EQ1075SJ3CDF

Scanning motor speed (r/min)

140

effluent standard

GB3847-2005, GB17691-2018 National Standard Grade VI

Scanning Disk Inclination

Anterior tilt: 5°–15°; Posterior tilt: 5°–10°

main engine

Whole Camellia / Jade Camellia (optional)

Nozzle Structure

Double-suction nozzle with wide intake port; hydraulic + spring floating suspension system; built-in high-pressure nozzle

Main Engine Horsepower (Ps)

Quanchai 136, Yuchai 140

Straw diameter (mm)

φ180

Main Engine Displacement (ml)

Quanchai 2300, Yuchai 2360

Straw Brands

NORRES

Secondary Engine Model

Light Version / Jiangling (Optional)

Walking wheel bearing

SKF (Skifer)

Auxiliary Engine Power (Ps)

Light version: 88; Jiangling: 87

Walking Wheel Outer Ring

Stellana

Auxiliary Engine Power (kW)

63

Nozzle clearance from ground (mm)

5～8

Secondary Engine Displacement (ml)

3200

Nozzle and straw wind speed (m/s)

50～65

External Dimensions (Length × Width × Height) (mm)

6350×2300×2500

Nozzle negative pressure (mmH₂O)

380

wheel base （mm）

3308

Job Layout

Central-mounted dual-scarifier nozzle; rear-wide suction nozzle; built-in high-pressure main spray rod; left and right high-pressure side spray rods.

tyre size

7.00R16

Side spray rod

Two-way obstacle avoidance, automatic reset

Maximum Total Mass (kg)

7360

Box Material

Long rectangular stainless steel housing, with side panels measuring 3 mm and bottom plate measuring 4 mm, manufactured by seamless welding.

Preparation Mass (kg)

5800

Unloading Method

The hydraulic cylinder overturns to discharge material, equipped with a self-cleaning nozzle on the tank body.

Rated load capacity (kg)

1430

control method

CAN-based intelligent centralized control for electro-hydraulic-gas systems

Clear Tank Volume (m³)

2.5 (Stainless steel)

High-pressure pump

GTM high lift pump

Garbage Bin Capacity (m³)

3 (Stainless steel)

Hydraulic Component

Hypris electromagnetic valve assembly, cycloidal motor

Scanning Width (mm)

2500-3000

fan

High-power, maintenance-free centrifugal fan

Scavenging Speed (km/h)

3-15

clutch

Automatic clutch, shock absorption during start/stop

Cleaning Operation Speed (km/h)

15-20

Spray System

Electromagnetic diaphragm pump with dust suppression in the cleaning disc area

Maximum Cleaning Capacity (m²/h)

30000

monitored control system

The vehicle body is equipped with dual monitoring cameras, and the cab features a large display screen.

Material density (g/cm³)

2

Additional Configuration

Reverse parking voice alarm, rear electronic control unit, manual emergency hydraulic pump

Material suction mass (kg)

1.5

High-pressure reel

15-meter automatic winding high-voltage reel + handheld high-voltage gun

Maximum suction particle size (mm)

≥100

Work Mode

Can be cleaned separately, flushed separately, or used for combined cleaning and washing operations.

Garbage bin dumping angle (°)

≥30

After-sales Service Details

On-site vehicle testing before departure; free repairs for non-human-induced faults for one year, with nationwide warranty coverage

Scanning Efficiency

≥96%

Maintenance Requirements

The main and auxiliary engines share a common fuel tank; the fuel filter should be inspected and replaced regularly.

Work Noise (dB)

<88, compliant with GB7258 standard

Auxiliary Engine Idling (r/min)

750～790

Scan Structure

Central-mounted dual scanning discs, driven by a hydraulic motor with adjustable speed

Maximum RPM of the auxiliary engine (r/min)

2400
