Main Technical Parameters Table

Vehicle Model

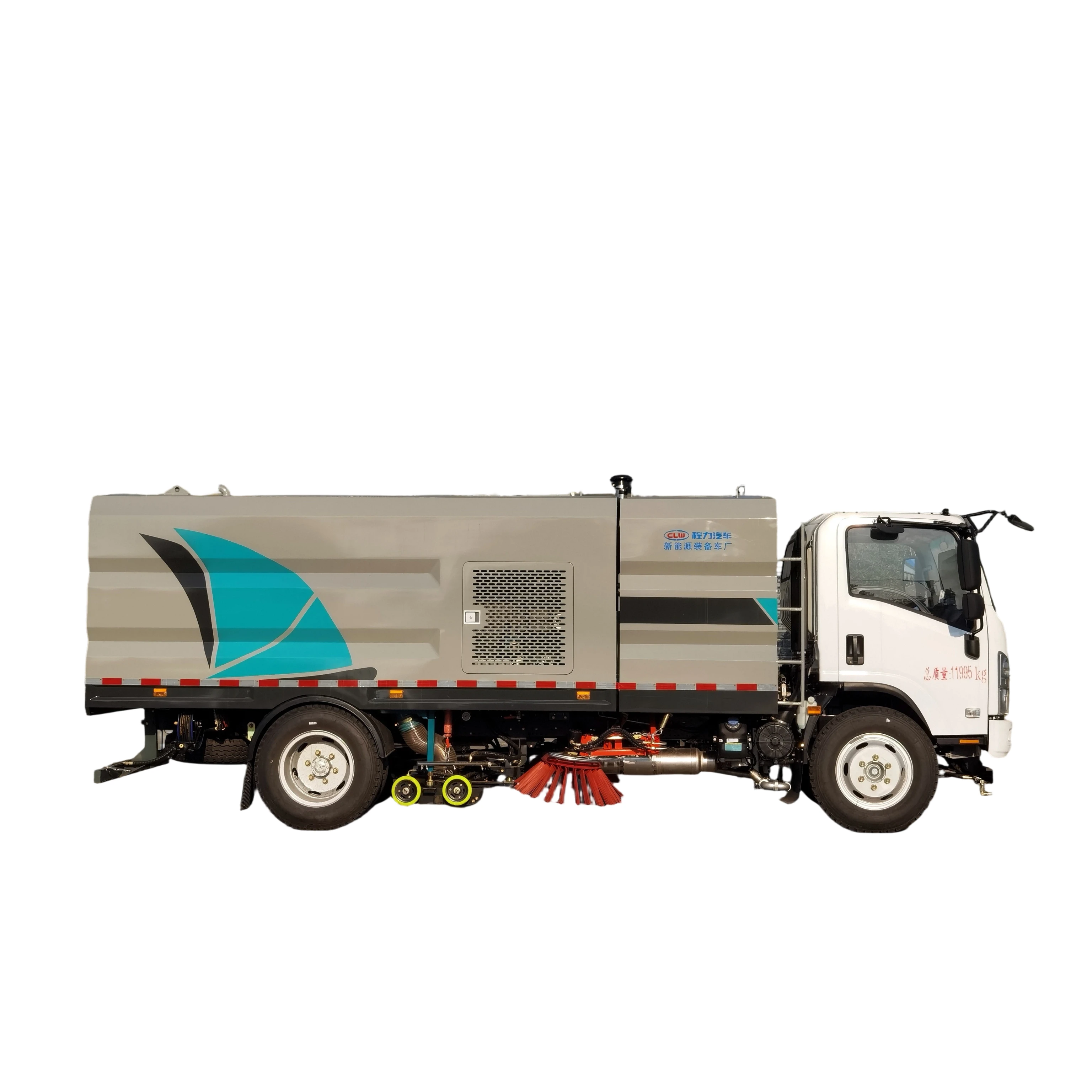

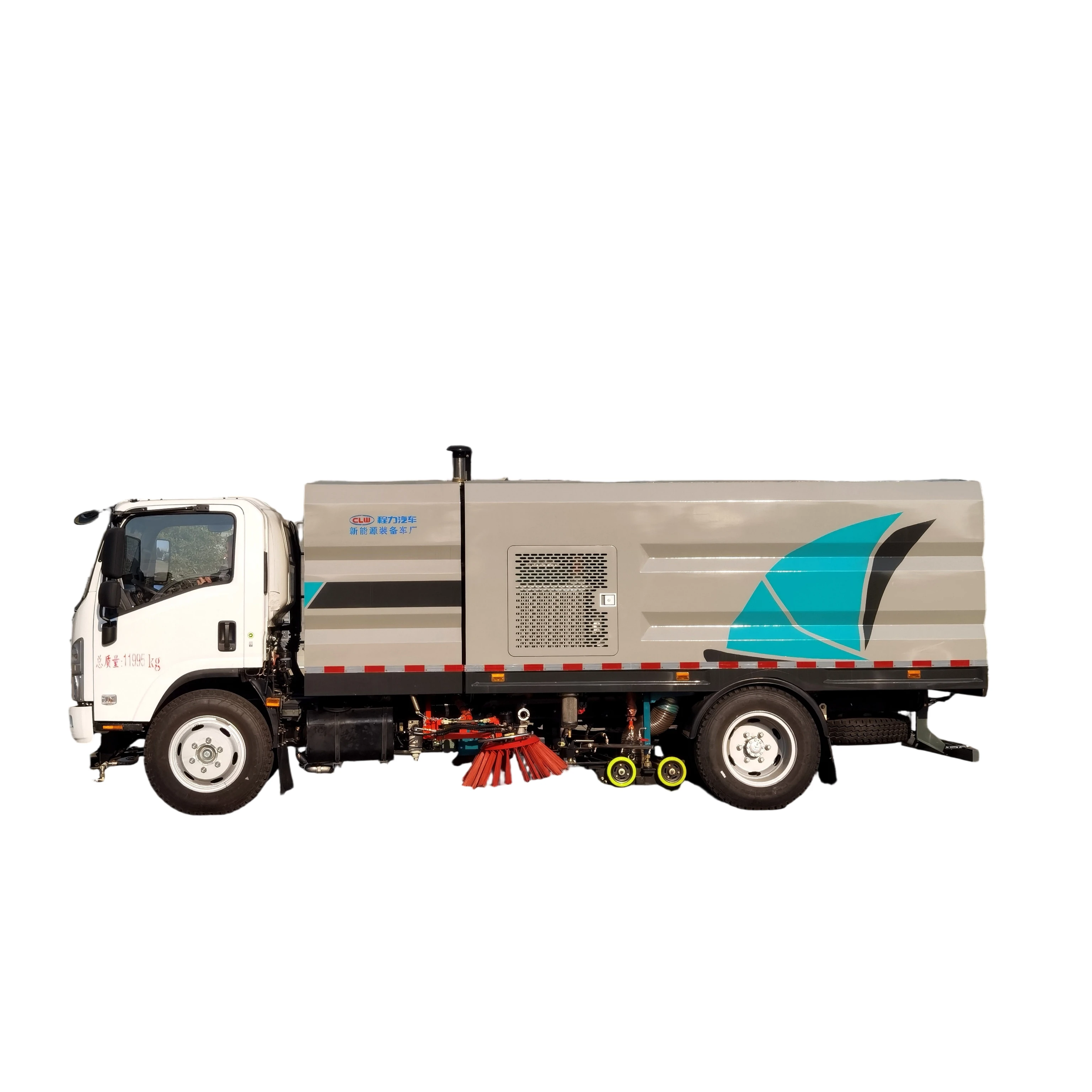

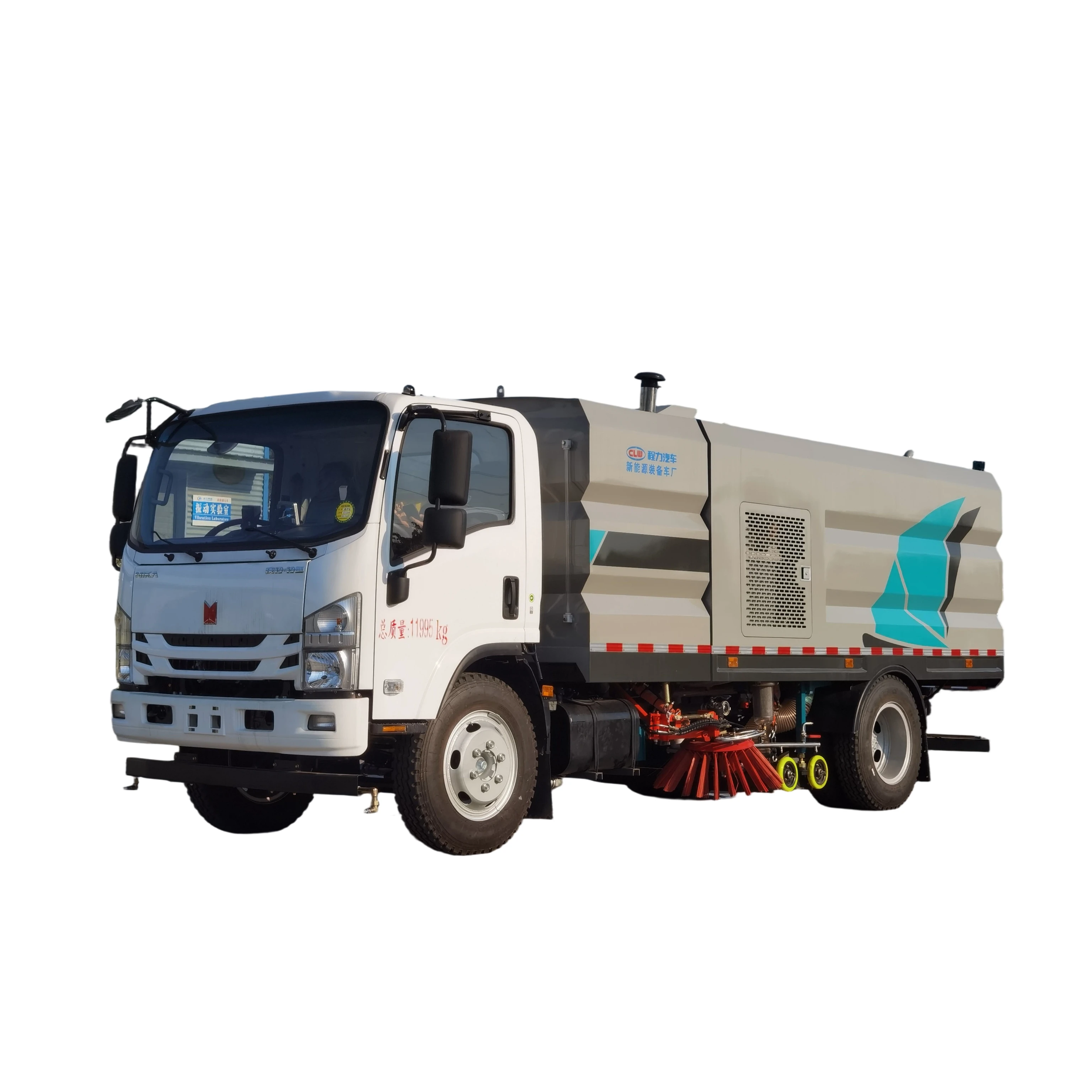

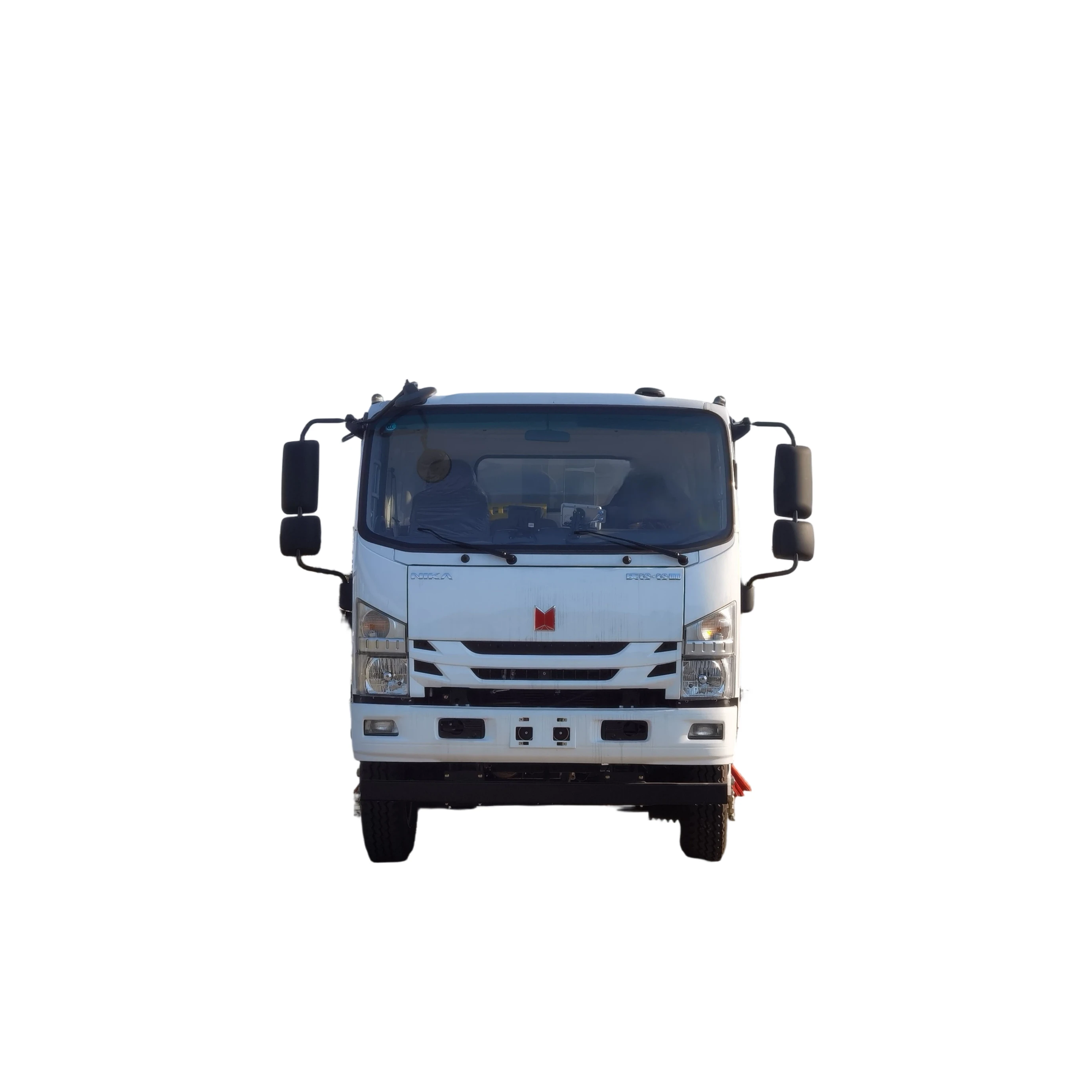

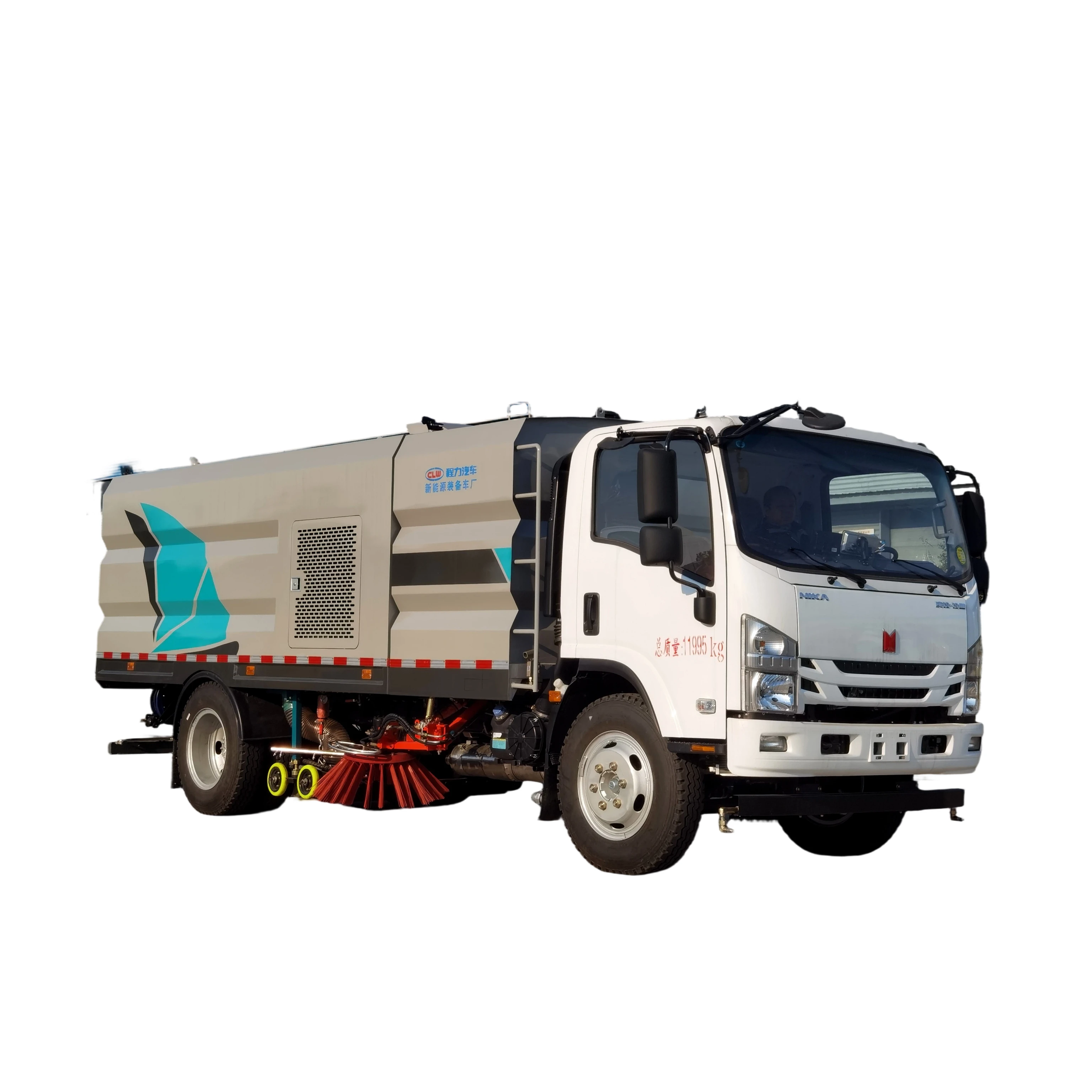

CL5120TXS6BGX Mop-and-sweep vehicle

Garbage bin dumping angle

≥45°

Chassis Model

QL1120MEKAY

Scanning Efficiency

≥96%

wheel base

4175 mm

Operation noise

<88 dB (compliant with GB7258 requirements)

Volume of the clear tank

5 m³

Scanning System Type

Between the front and rear chassis axles, a vertically adjustable and extendable sweeping disc is installed symmetrically on each side of the frame. The rotation of these discs is driven by hydraulic motors with adjustable speeds.

Garbage bin capacity

5 m³ (made of stainless steel)

Main components of the cleaning system

Disk cleaning bracket, disk cleaner, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor, etc.

Tire Type

8.25R20 16PR

Scan to expand diameter

φ800-900 mm

Scanning width

2800-3200 mm

Scanning motor speed

140 r/min

effluent standard

GB3847-2005, GB17691-2018 – National Standard VI

Scanning Count

2

Chassis Engine Model

Within the cloud: D30TCIF1

Scan Plate Inclination Adjustment

Inclined forward 5°–15°; inclined outward 5°–10°

Chassis engine power

170 ps

Nozzle device type

The nozzle is suspended between the rear wheels of the chassis and consists of a nozzle body, rollers, and a suction tube. The nozzle body can move synchronously with the vehicle; its elevation is controlled by hydraulic cylinders. It features a wide dual-nozzle design with an internal long row of high-pressure spray rods (8 in total), and the nozzle body moves in sync with the road surface. The nozzle's elevation is hydraulically driven and electrically automatically controlled, utilizing a spring-loaded floating suspension system.

Model and manufacturer of the auxiliary engine

B140 33 Dongfeng Cummins Co., Ltd.

Straw diameter

φ180 mm

Secondary engine power

102 kW

Straw Brands

NORRES

Secondary engine horsepower

140 ps

Walking wheel bearing

SKF (Skifer)

Secondary engine displacement

3200 ml

Wear-resistant outer ring for the traveling wheel

Stellana

Scraping Operation Speed

3-15 km/h

Working state: The clearance between the rigid part of the nozzle edge and the ground

5-8 mm

Cleanliness Work Speed

15-20 km/h

Air velocity in the nozzle and straw

50-65 m/s

Maximum Cleaning Capacity

38000 m²/h

Nozzle negative pressure

380 mmH2O

density

2.0 g/cm³

alarm system

Reverse Vehicle Voice Alarm System

Scanning width

3000 mm

Secondary Operating System

The rear section is equipped with an electronically controlled operating system that regulates the elevation of the main compartment and the opening/closing of the rear door, preventing safety incidents caused by inadequate visibility of the rear area when operating from the cab. Additionally, the rear section features operable working functions.

Suction particle size

≥100 mm

Manual Pump Emergency Lifting System

In the event of a deputy engine failure rendering the hydraulic system inoperable and preventing the lifting of the brush, suction cup, or main chamber, the manual pump emergency lifting system may be employed.
