Main Technical Parameters Table

Vehicle Name

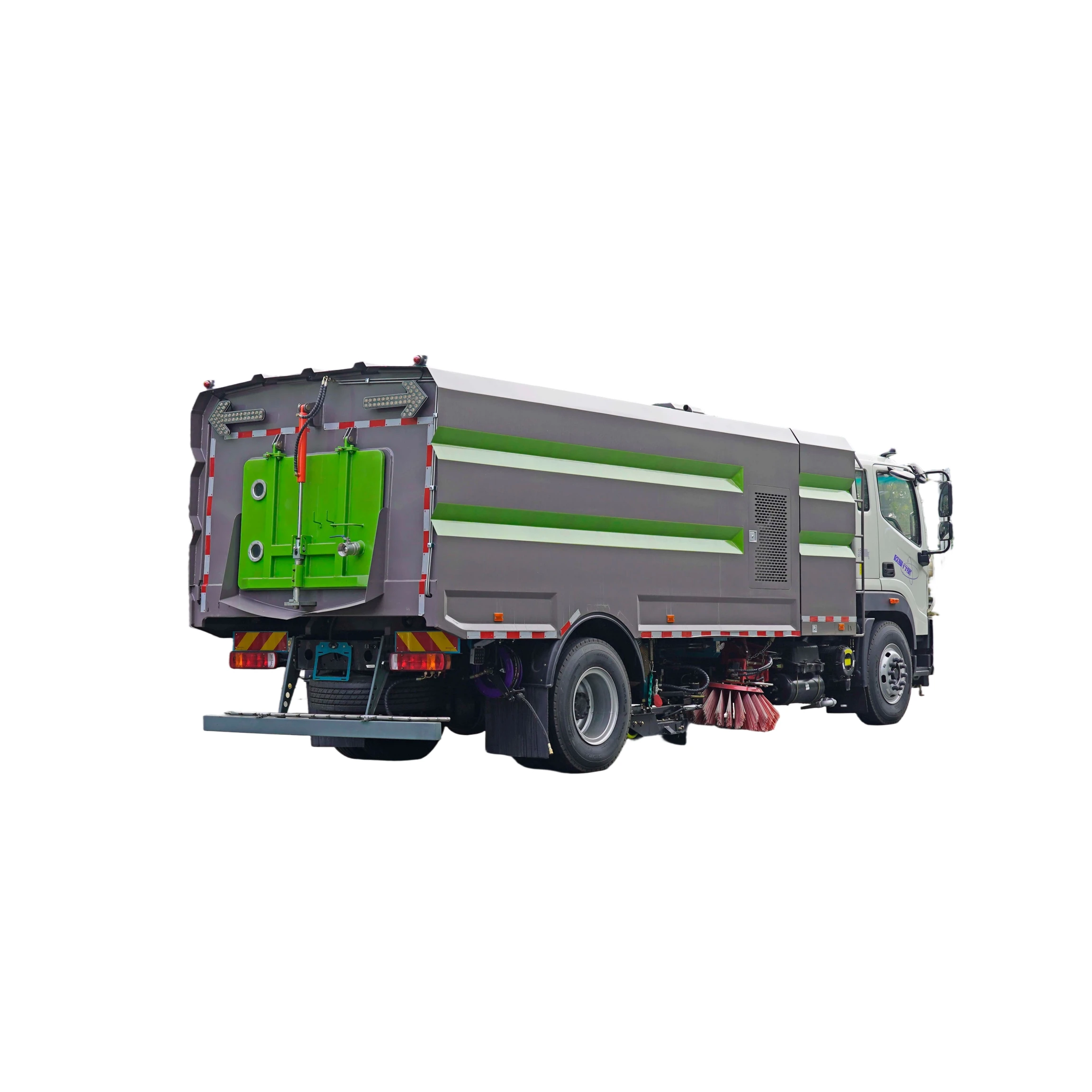

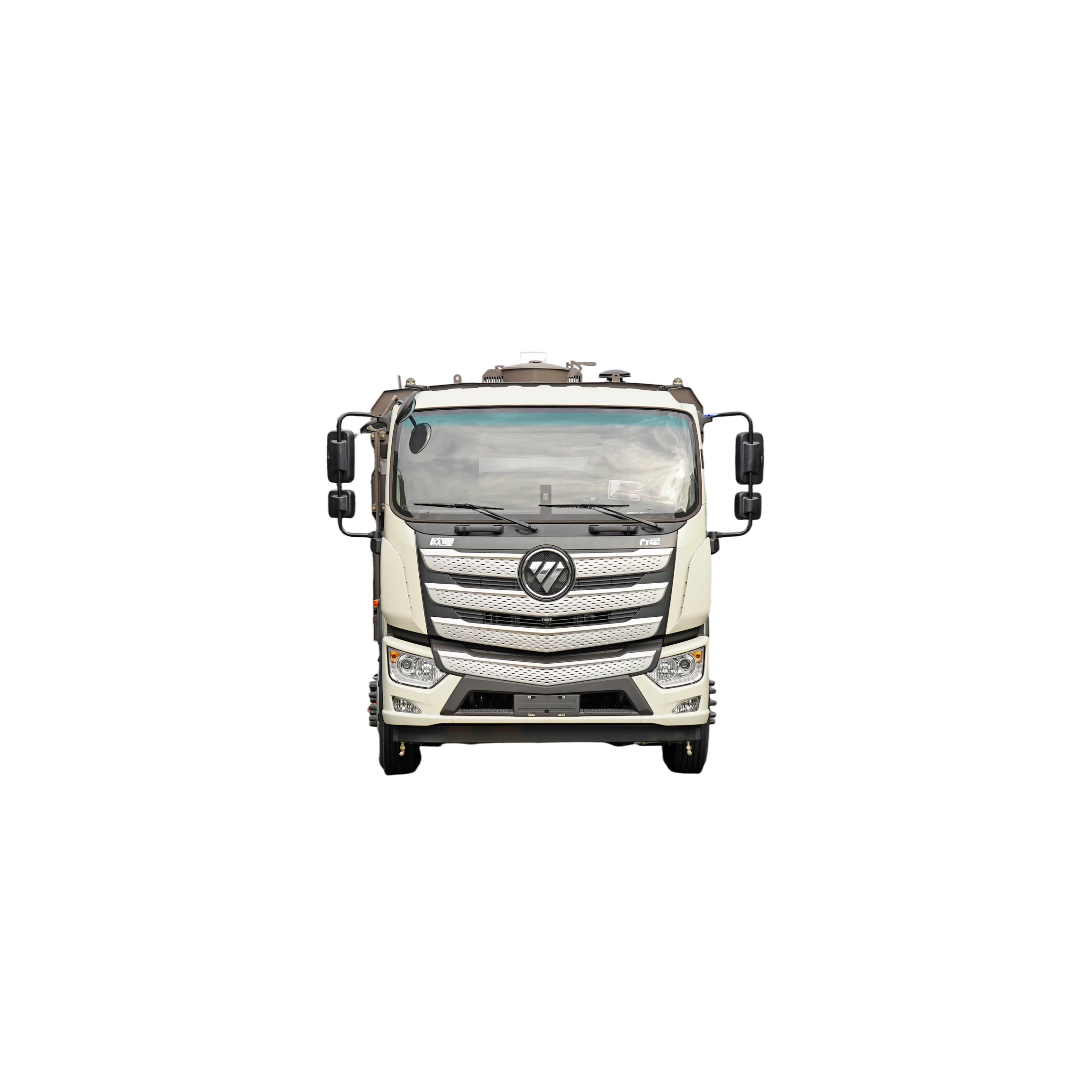

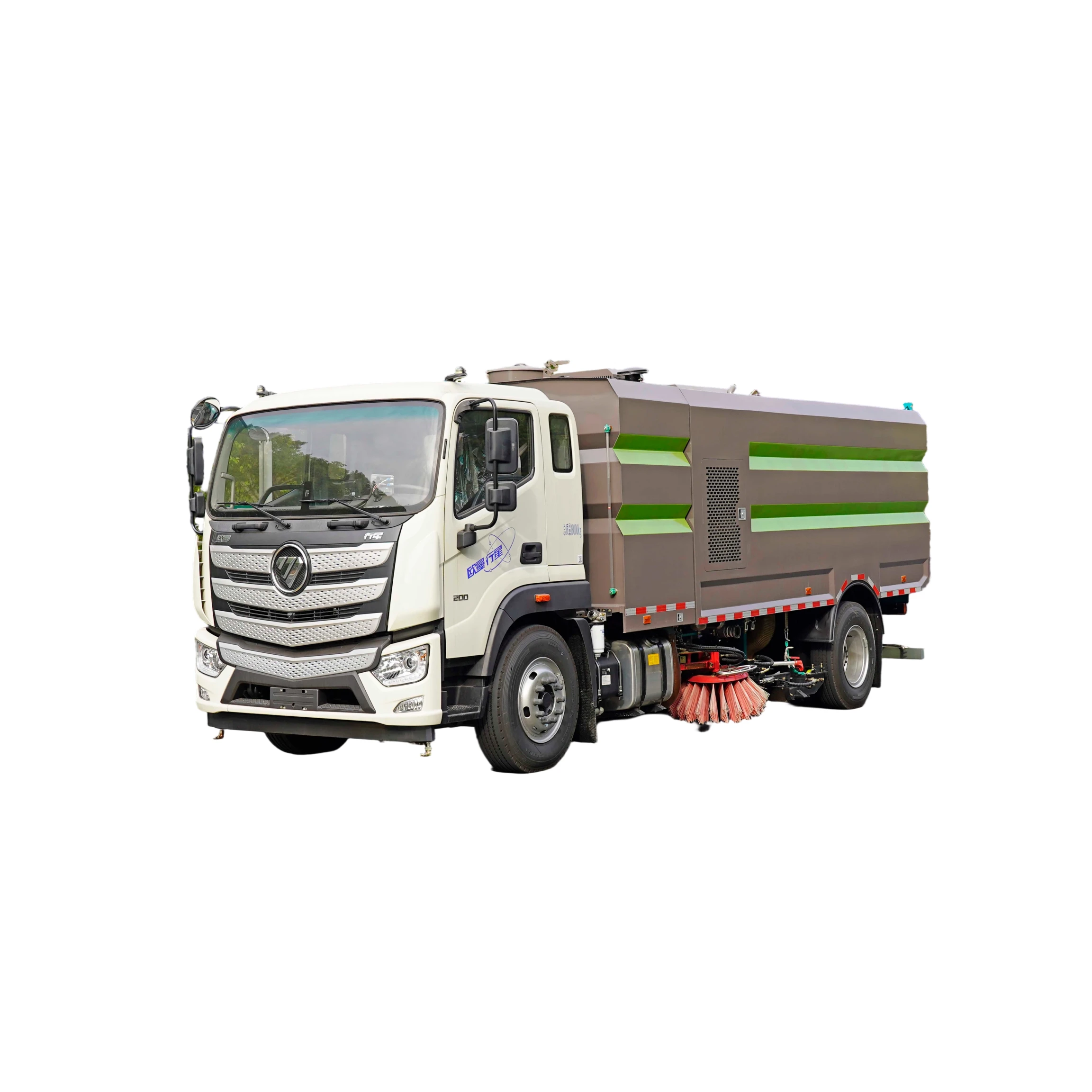

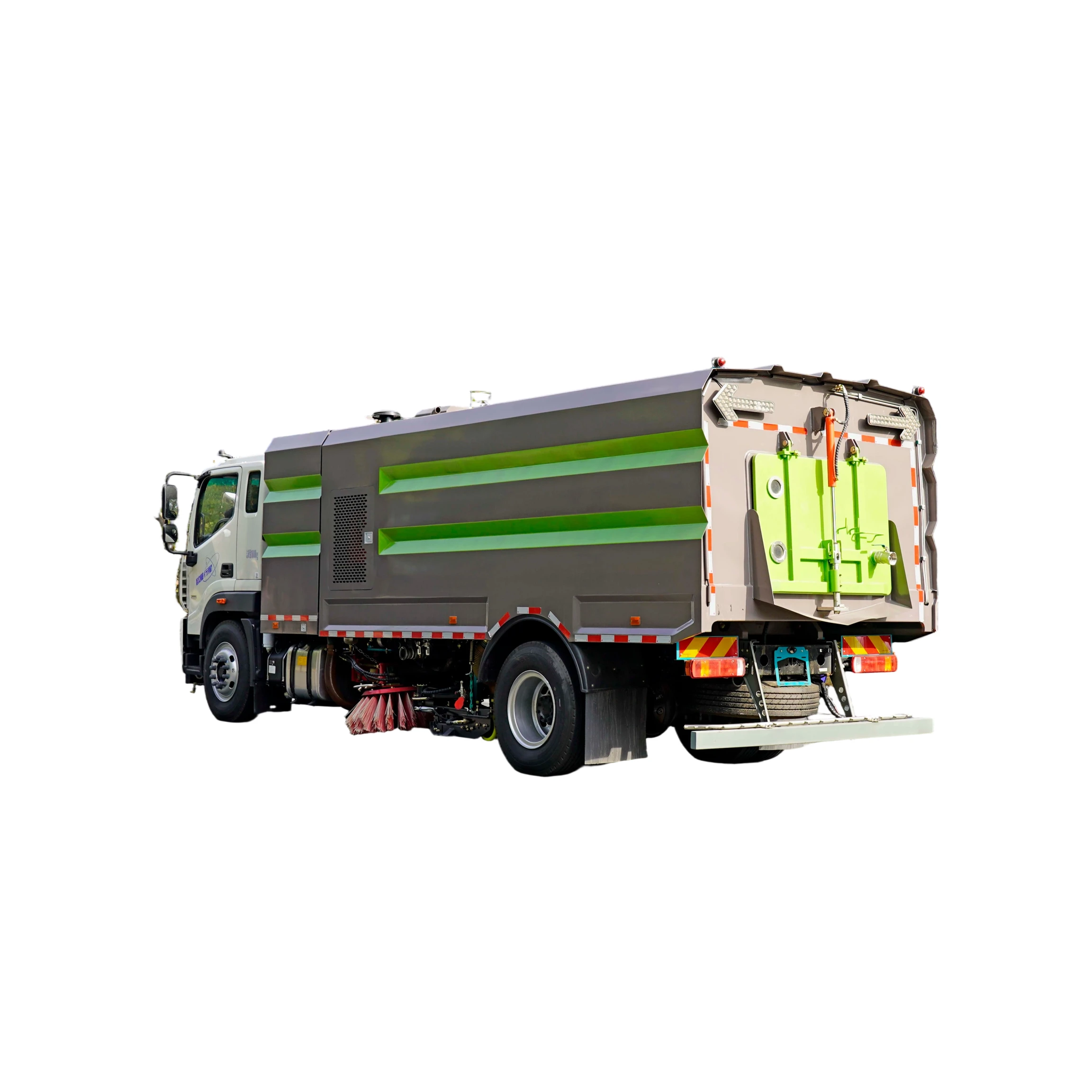

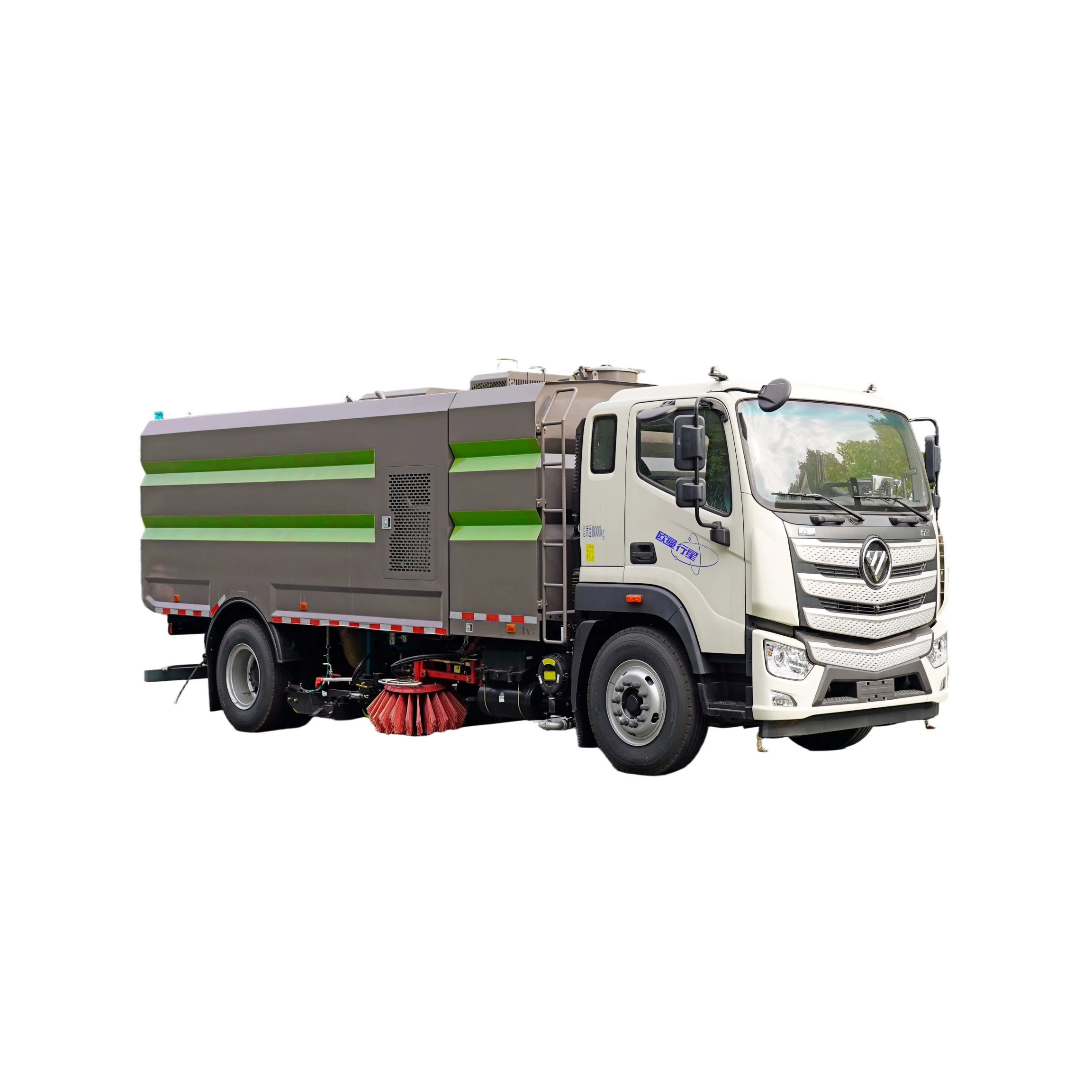

CLW5182TXS6SL Type Water-Cleaning and Sweeping Vehicle

Control Type

Electronic control, one-touch operation

Chassis Model

BJ1181Y6AKS-03

Hydraulic System Type

Open design; centralized electric control operation

gross mass

18000 kg

Main components of a hydraulic system

Gear pumps, cycloidal motors, hydraulic cylinders, solenoid valves, integrated blocks, high-pressure pumps, etc.

curb weight

11850, 11450 kg

Cycloid Motor

Liton Motor/Liwoma Motor

Rated load capacity

6020, 5955, 6420, 6355 kg

geared oil pump

Shiyan Changshun

wheel base

5150 mm

hydraulic jack

Hypris

Volume of the clear tank

9 m³

Hydraulic cylinder seal

Taiwan Dingji

Garbage bin capacity

7 m³ (made of stainless steel)

Hydraulic Oil Pipe

Da Hang

Tire Type

10.00R20 18PR

Electromagnetic Valve Assembly

Hypris/Alta

Scanning width

3000-3500 mm

Earthquake-resistant pressure gauge

Chengdu Tianwei

effluent standard

GB17691-2018 National Standard Grade VI

Return Oil Filter

Shanghai Sofima

Vehicle length, width, and height

8650,8560 × 2500 × 3300,3200,3150,3120 mm

System Overpressure

10-12 MPa

Main engine horsepower

Yuchai 200/245 hp

Hydraulic oil tank volume

≥60 L

Main engine displacement

4156/6234 ml

Composition of an Electrical System

It consists of the chassis vehicle circuit, the electrical components of the auxiliary engine, and the operational control circuit for specialized working devices.

Model and manufacturer of the auxiliary engine

Dongfeng Cummins Co., Ltd.

Chassis System Voltage

24 V

Secondary engine power

125 kW

Working Device System Voltage

12 V

Secondary engine horsepower

170 ps

Composition of the electrical control box panel

Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches

Secondary engine displacement

5900 ml

control switch

Shanghai Schneider

Scanning width

3000-3500 mm

Programmable Logic Controller

Bai Qiaofu

Maximum Cleaning Capacity

60000 m²/h

circuit breaker

Haiger

Scraping Operation Speed

3-15 km/h

Battery Type

12V–140 Ah (2 units connected in parallel)

Cleaning Speed

15-20 km/h

Fan Type

Maintenance-free centrifugal fan

Suction capability density

2.0 g/cm³

Rated operating speed of the fan

2000 r/min

Quality of suction capability

1.5 kg

Fan Drive Type

Auxiliary engine, clutch, toothed high-temperature resistant A-belt drive (4 pieces)

Suction particle size

≥100 mm

Fan Belt

Zhejiang Three-Dimensional

Garbage bin dumping angle

≥30°

automatic clutch

centrifugal

Scanning Efficiency

≥96%

Air Flow Rate

12000-23000 m³/h

Operation noise

<88 dB (compliant with GB7258 requirements)

Scanning System Type

Between the front and rear chassis axles, a vertically adjustable and extendable sweeping disc is installed symmetrically on each side of the frame. The rotation of these discs is driven by hydraulic motors with adjustable speeds.

Driven Type

4×2 rear-wheel drive

Main components of the cleaning system

Disk cleaning bracket, disk cleaner, hydraulic cylinder, oil pipe, connecting rod, adjustment rod, hydraulic motor, etc.

Suspension Type

plate spring

Scan to expand diameter

φ800-900 mm

Number of steel plate springs (front/back)

10/10+8, 10/8+8

Scanning motor speed

140 r/min

Braking Type

Double-circuit pneumatic brake, drum type

Scanning Count

2

Braking distance (at full load, 30 km/h)

≤10 m

Scan Plate Inclination Adjustment

Inclined forward 5°–15°; inclined outward 5°–10°

maximum speed

89 km/h

Nozzle device type

The nozzle is suspended between the rear wheels of the chassis and consists of a nozzle body, rollers, and a suction tube. The nozzle body can move synchronously with the vehicle; its elevation is controlled by hydraulic cylinders. It features a wide dual-nozzle design with an internal long row of high-pressure spray rods (8 in total), and the nozzle body moves in sync with the road surface. The nozzle's elevation is hydraulically driven and electrically automatically controlled, utilizing a spring-loaded floating suspension system.

minimum turning radius

8 m

Straw diameter

φ180 mm

maximum gradability

≥30%

Straw Brands

NORRES

Clutch System

Single-piece dry diaphragm spring clutch, hydraulically operated

Walking wheel bearing

SKF (Skifer)

Transmission System

8-speed transmission

Wear-resistant outer ring for the traveling wheel

Stellana

Engine Fuel Consumption (On the Road)

≤14 L/100km

Working state: The clearance between the rigid part of the nozzle edge and the ground

5-8 mm

Engine Fuel Consumption (During Operation)

≤8 L/h

Air velocity in the nozzle and straw

50-65 m/s

Engine Fuel Consumption (During Operation)

≤3 L/10000m²

Nozzle negative pressure

380 mmH2O

Water spraying method of the dust suppression system

Low-pressure mist

alarm system

Reverse Vehicle Voice Alarm System

Main components of the dust removal system

High-pressure pump, water filter, piping system, stainless steel spray frame, high-pressure nozzle, etc.

Secondary Operating System

The rear section is equipped with an electronically controlled operating system for regulating the elevation of the main compartment and the opening/closing of the rear door.

Installation location for dust removal and control systems

Left, Right, and Front Scanning

Manual Pump Emergency Lifting System

In the event of a deputy engine failure rendering the hydraulic system inoperable and preventing the lifting of the brush, suction cup, or main chamber, the manual pump emergency lifting system may be employed.

Installation location for vacuum cleaning and dust removal systems

Inside the suction port of the suction cup
