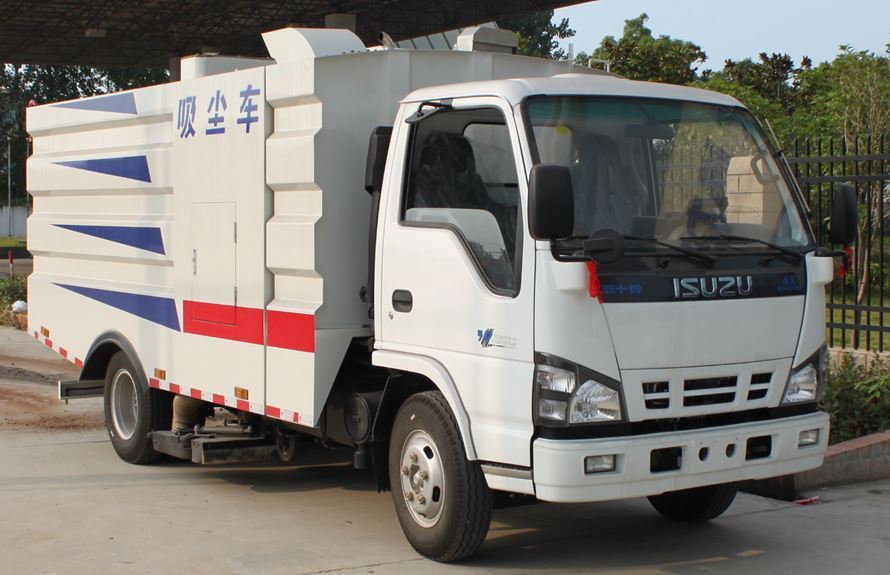

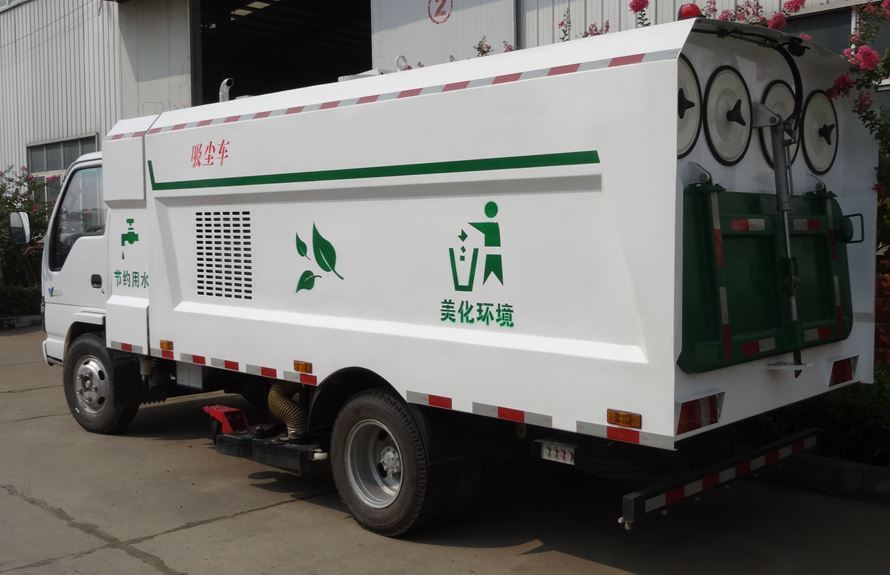

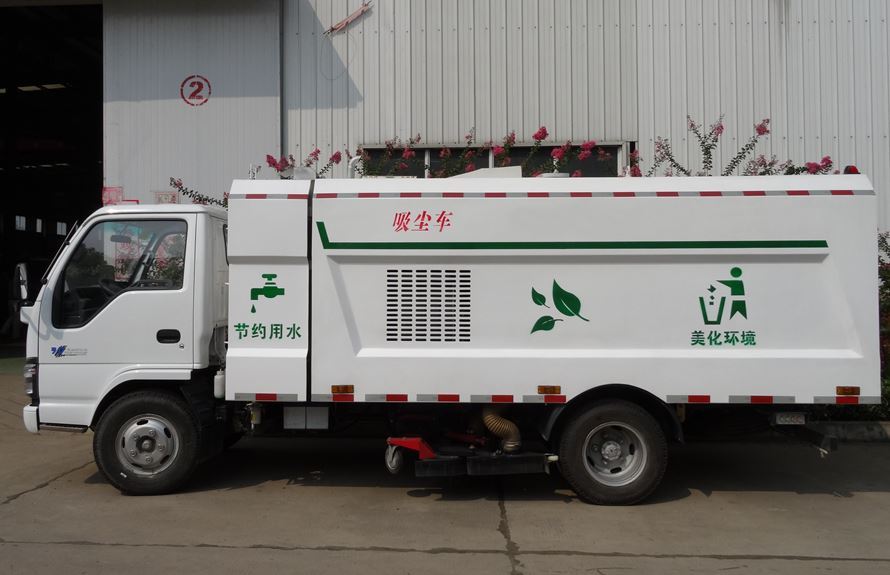

The五十铃 small vacuum cleaner vehicle adopts the fifty铃 (wheelbase 3360) fourth-generation original factory automotive chassis， fifty铃 original engine， 130 horsepower， genuine fourth-generation emission standard， fifty铃 MSB5-speed automatic transmission， single-row luxury cab， equipped with original air conditioning， with power steering， 7.00R16 type tires， low fuel consumption and low noise.
2. The auxiliary engine of the Isuzu compact vacuum cleaner adopts the powerful Jiangxi Isuzu 57Kw engine, which is technologically advanced and of stable quality.
3. The五十铃 small vacuum cleaner uses an automatic clutch to drive the fan, reducing the impact on the engine during the start and stop of the fan. The clutch has the advantages of high wear resistance, long service life， low noise， low fuel consumption and cost savings during use.
4. The五十铃 small vacuum cleaner adopts a high-power, wear-resistant and maintenance-free centrifugal fan. It is noise-free， has high efficiency and large air volume, and has a long service life.
5. The water tank of the Isuzu small vacuum cleaner vehicle is fully utilized to make the vehicle space more efficient. The tank has a capacity of 1 cubic meter and is equipped with a water level alarm. The interior of the tank is treated for anti-corrosion, anti-rust, and anti-toxicity, ensuring safer operation of the water pump and maintaining high cleaning efficiency.
6. The garbage bin of the Isuzu compact vacuum cleaner has a capacity of 4 cubic meters. An imported waterproof filter cartridge is installed inside, allowing for separate storage of different types of garbage. It can effectively process leaves, stones, and dust into different sizes. The body is equipped with a tilting discharge mechanism.
7. The main suction cup of the Isuzu compact vacuum cleaner has a width of 1900mm, while the left and right auxiliary suction cups have a width of 600mm. The maximum total width for operation is 2.5m. Four height-adjustable suction cup wheels enable convenient adjustment and ensure a reasonable gap between the suction cup and the road surface, thereby achieving better dust collection results and higher efficiency.
8. The五十铃 small vacuum cleaner has an automatic pulse cleaning function. The auxiliary machine is equipped with an air pump and a volume air tank. When a certain air pressure is reached, the pulse reverse blowing device is activated, which causes the filter cartridges inside the box to be reversed and vibrated. This prevents the filter cartridges from getting clogged during operation， effectively enhancing the suction power and achieving better cleaning results. It is controlled by a computer PLC and the pulse interval time can be adjusted.
9. The cab of the Isuzu compact vacuum truck is driven by a manual button-type hydraulic system, which controls the lifting and lowering of the main suction cup, the movement of the left and right auxiliary suction cups, the pulse cleaning function, the opening and closing of the rear door of the garbage bin, and the repositioning of the garbage bin after tipping over.
10. The cab of the Isuzu compact vacuum cleaner is equipped with a display screen. During operation, it can monitor the front, rear, left, right, main and auxiliary suction cups of the vehicle, ensuring no blind spots in the work and providing greater convenience and efficiency for the driver.
11. The hydraulic piping of the Isuzu compact vacuum cleaner adopts a sealing structure in accordance with German standard technology. It has excellent vibration resistance and high sealing reliability, enabling a leak-free sealing effect.
12. The五十铃 small vacuum cleaner adopts high-quality hydraulic electromagnetic valves, and the key electronic control components use German Siemens electrical switches. It has high reliability and a long service life.
13. The hydraulic components of the Isuzu compact vacuum truck adopt an integrated stacking design. The cab is centrally controlled by electro-hydraulic means, making the operation very convenient.
14. The五十铃 small vacuum truck is equipped with a manual pump emergency system. Even when the auxiliary engine stops, it can still lift the garbage bin， making maintenance and servicing easier.
15. The non-stainless steel parts of the Isuzu small vacuum cleaner have undergone electrostatic painting for rust prevention, making them durable and long-lasting.
16. The load-bearing beam of the auxiliary frame of the Isuzu small vacuum cleaner vehicle is made by welding square steel with a length of 120mm, a width of 60mm and a thickness of 8mm. This design ensures the safety of the entire vehicle and makes the vehicle driving safer.
17. The exterior design of the Isuzu compact vacuum cleaner is computer-optimized. It features a high-position side skirt, a curved transition, and an overall harmonious and symmetrical appearance. It achieves low fuel consumption, low noise, and a streamlined design.
18. This vehicle can be equipped with a snow shovel, brush, front suction and rear spraying functions, enabling it to serve multiple purposes in one vehicle.
