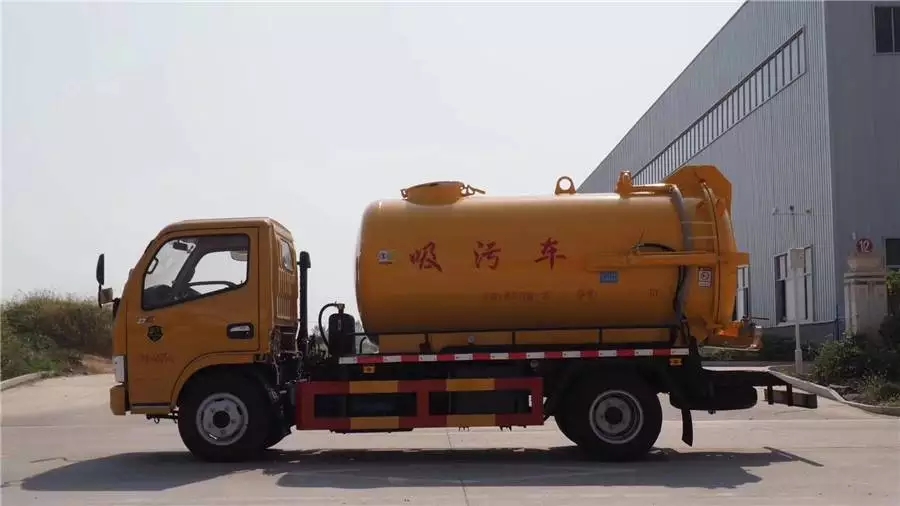

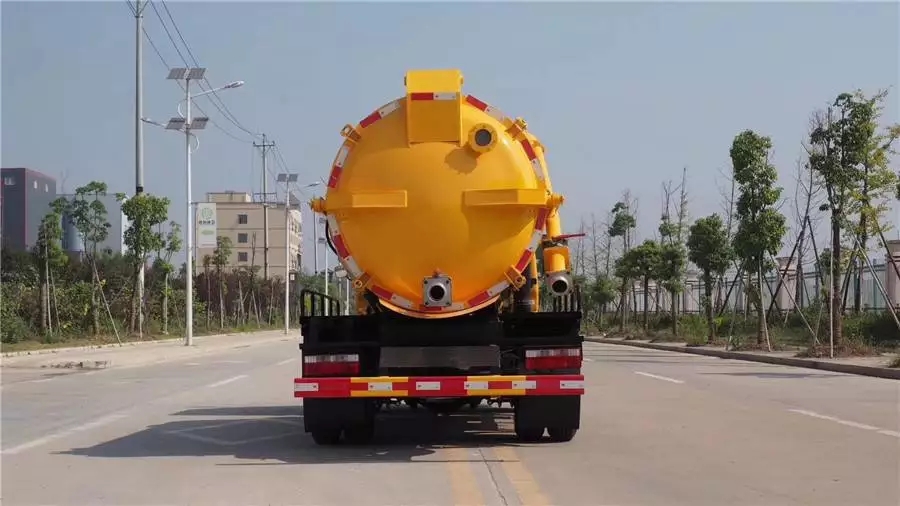

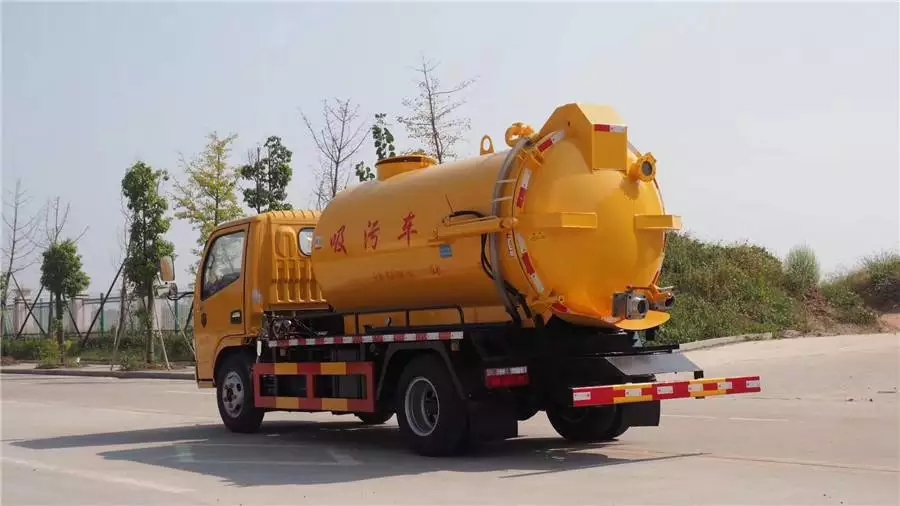

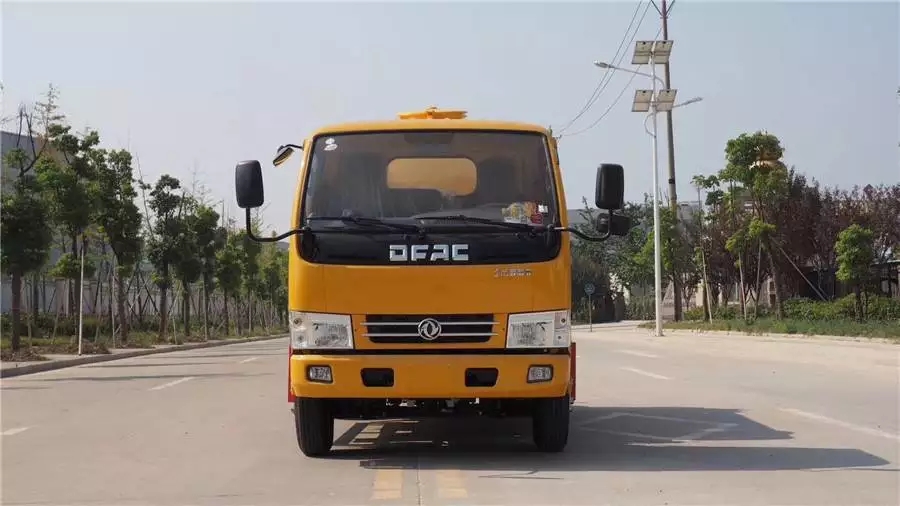

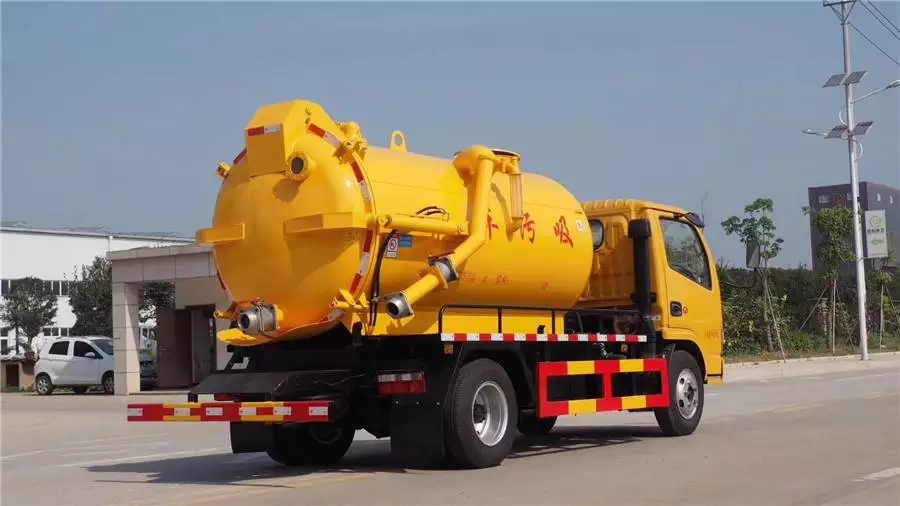

Dongfeng Dolica sewage suction vehicle, with a blue license plate! Tank volume is 3 cubic meters, SK-9 vacuum pump, Yuchai 115 horsepower engine, original factory air conditioning.
Technical parameters of Dongfeng Doli Ka blue plate 3-wheel sewage suction vehicle: Tank volume: 1.9 cubic meters; Suction pump: Vacuum pump; Full suction time: <5 minutes; Emptying time: <4 minutes; Vertical suction height: ≥8 meters; Inlet and exhaust diameter: 50mm; Total mass: 4495kg; Payload mass: 1490kg; Serviceable mass: 2875kg; Overall dimensions (mm): 5995×1990×2300; Tank dimensions (mm): 2600×Φ980; Passenger capacity: 3
The tank body of Dongfeng Dolica 3-ton blue-label small sewage suction vehicle is cylindrical in shape. It is made of 5mm thick high-quality carbon steel plate from Wuhan Iron and Steel. The front part of the tank has a sewage suction window, a hand-washing device, an lifting device, and a 5-meter-long sewage suction pipe. The tank body offers various color options, and the rest are configured according to the factory standards. The vehicle is equipped with a high-power vacuum sewage suction pump and a high-quality hydraulic system. The tank body lid is one-time cast, the tank can be opened from the back, and it is a double-axle self-unloading type. The sewage inside the tank can be directly discharged through the rear cover. It has the characteristics of high vacuum degree (greater than the suction force of sewage suction vehicles), large tonnage, high efficiency, and wider application range. (Vertical suction height: ≥ 8 m, working pressure: 8500 Pa, theoretical suction rate: 52 L/S, shaft power: ≤ 5 kw, intake and exhaust diameter: 50 mm, time to fill the tank: < 5 min, time to empty the tank: < 4 min.) The sewage suction vehicle uses a high-power vacuum pump, a one-time cast sealing head - , a thickened pressure-resistant tank body, and a double-axle hydraulic system.
