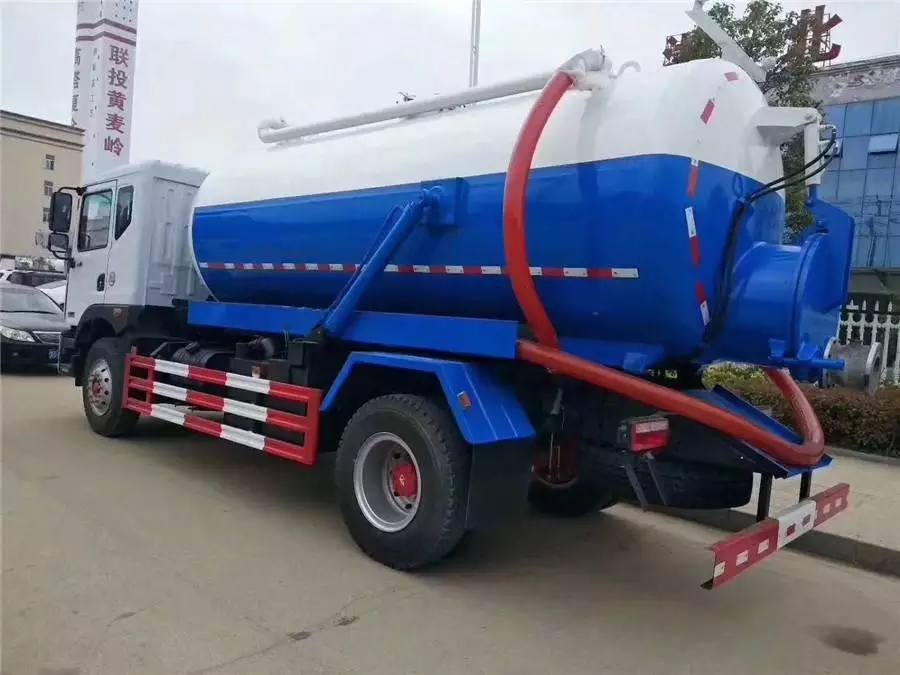

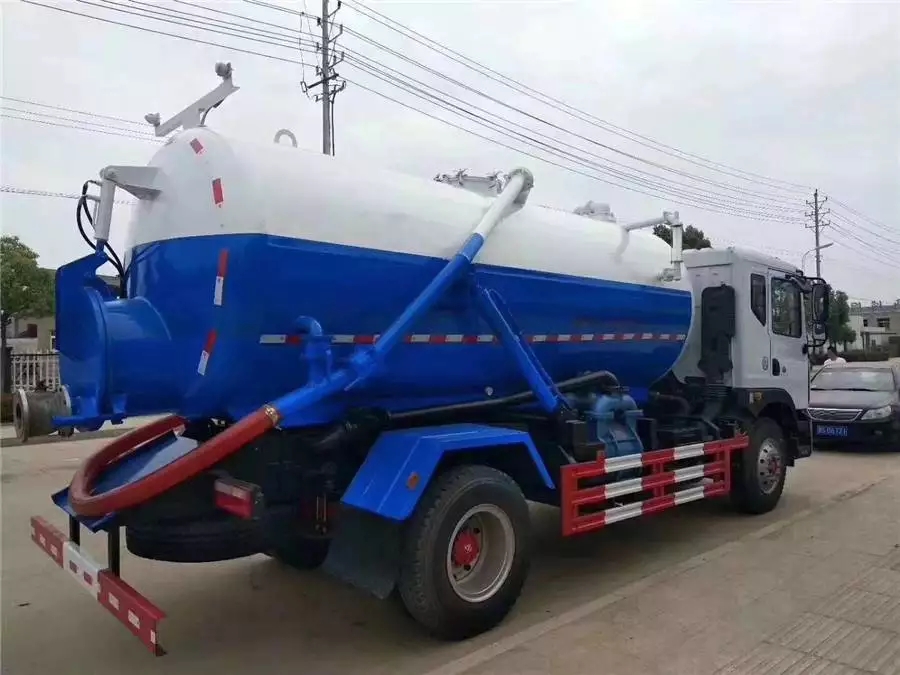

The Dongfeng D9 10-cubic-meter sewage suction truck has a cylindrical tank for the suction container. The structure is more compact, which can withstand higher pressure and provide greater suction force. It is suitable for collecting, cleaning and transporting sewage and sludge.

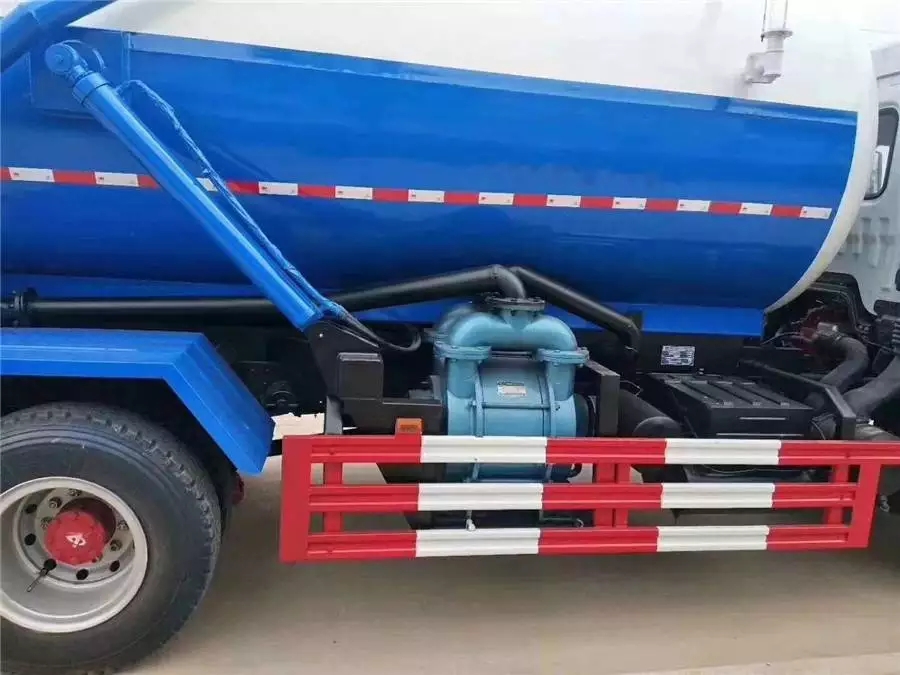

The configuration of the Dongfeng 10 type sewage suction vehicle: 5mm thick tank body, 6mm head, equipped with SK-9 water circulation pump, four-way valve, anti-rust valve, oil-gas separator, water-vapor separator, the tank body is equipped with lifting mechanism and work platform on both sides (optional). One 8-meter 102mm sewage suction pipe, measuring tube, a 100 ball valve at the tail, and a small cover at the rear tail that can be opened by hydraulic power!

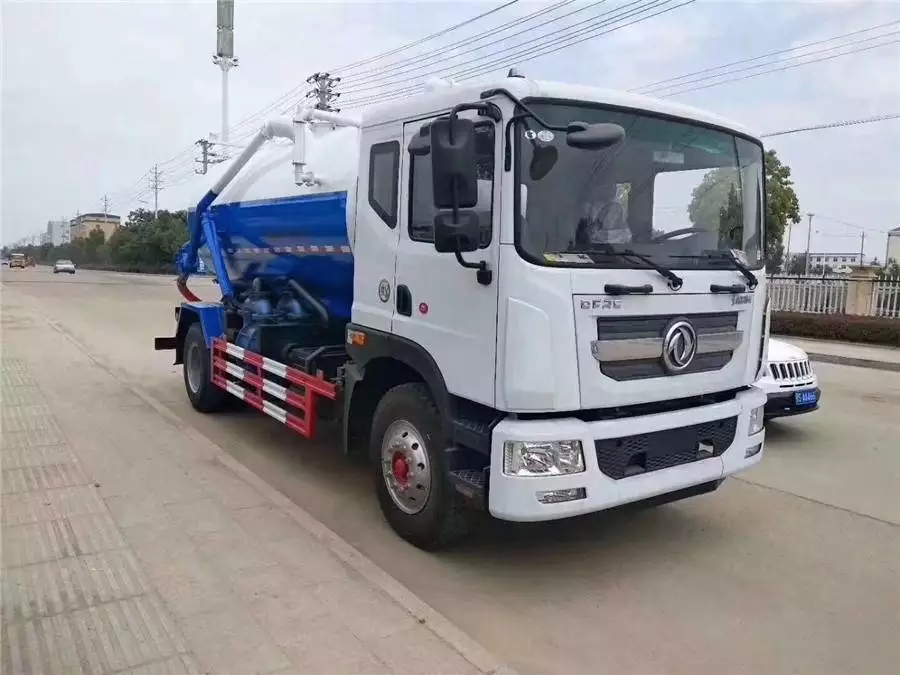

The chassis of the Dongfeng 10 type sewage suction vehicle adopts the Dongfeng D9 driver’s cab, a 6-speed transmission, engine: Yuchai / Cummins (optional), 9.00 steel wire tires, and ABS.
