The tank is a circular one with an effective volume of 24 cubic meters. The tank is made of 304 stainless steel and the 5mm head of the tank is 6mm thick.
2. A slot is made on the top of the tank, with dimensions of 1600800mm2. It is controlled by hydraulic system for opening. 。

3. The tail part of the tank is opened by an overall hydraulic mechanism, and hydraulic locks and manual locking pins are also installed.
4. The vehicle is equipped with an electronic control system. All operations can be performed within the vehicle, and the electrical interlocks for the functions of each component can also be achieved.
5. The hydraulic system employs hydraulic pumps from Hefei Changyuan, pneumatic control multi-way valves, and a 160-ton main cylinder.


Introduction to the structure of the sludge transport vehicle:

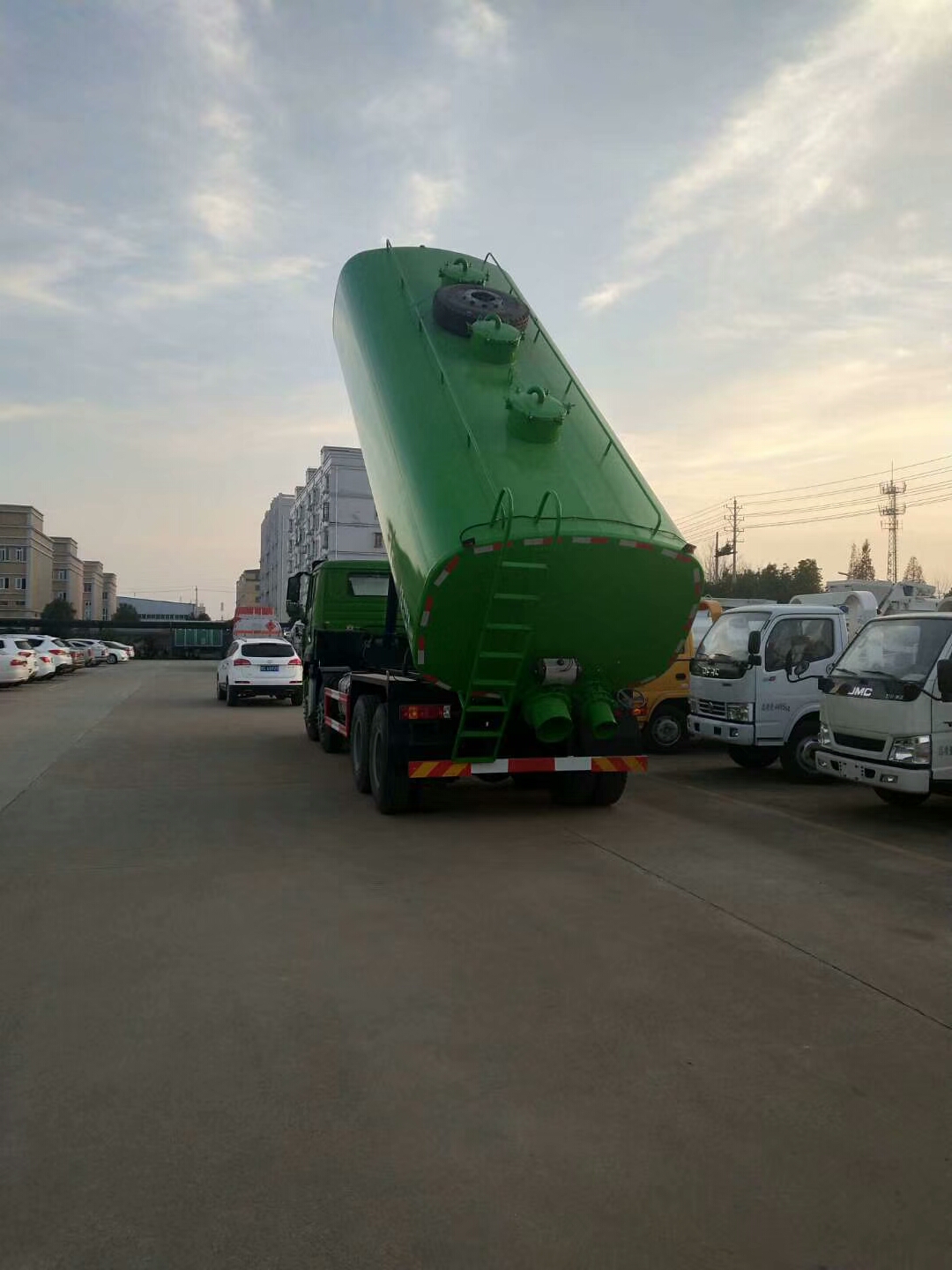

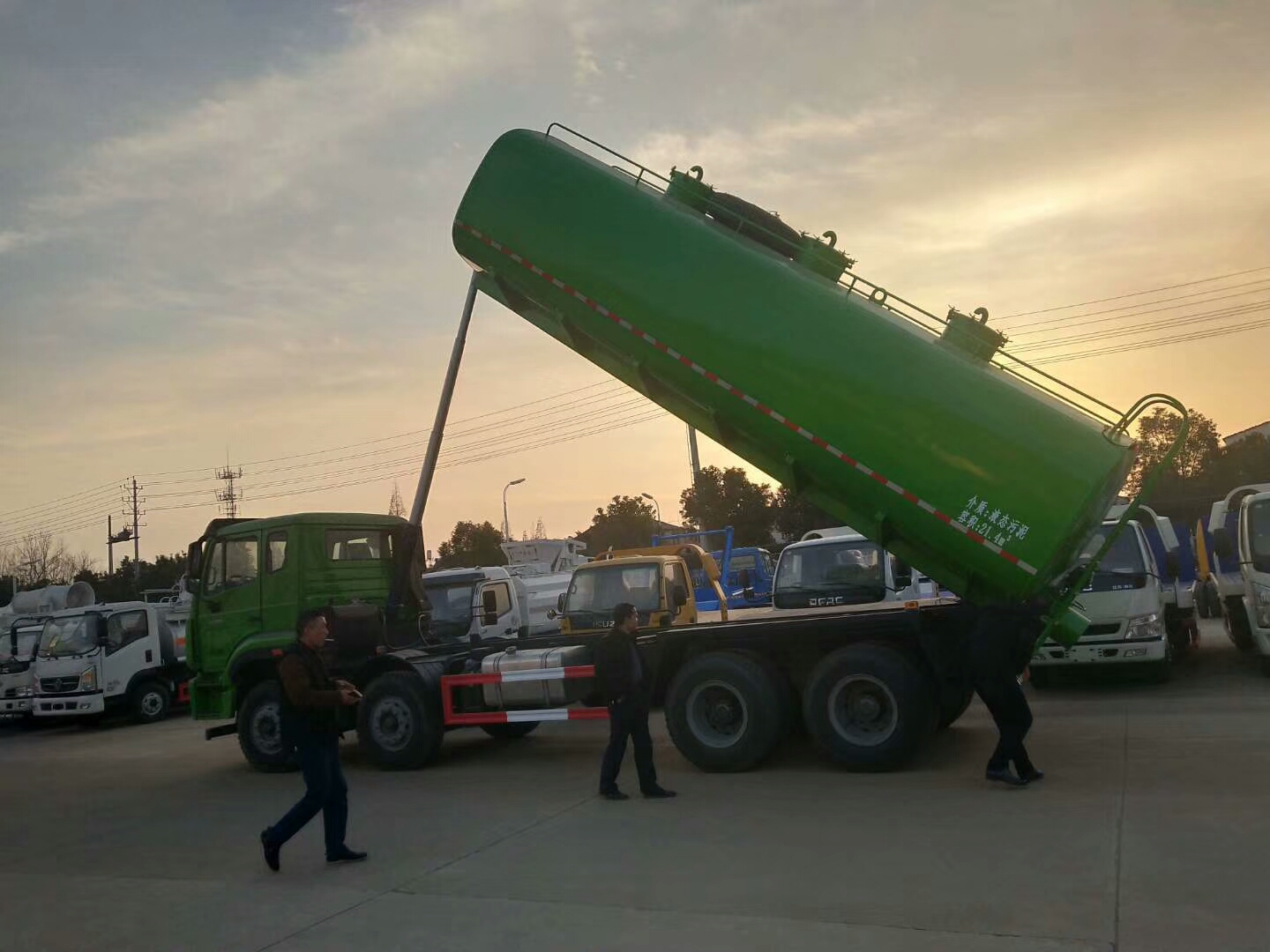

There are rear cover lifting cylinders and four pin-locking cylinders at the rear of the vehicle, ensuring no leakage. Inside the vehicle, there are stainless steel lining plates, and there are corrosion-resistant sealing strips, which provide good sealing performance and are easy to disassemble and assemble. In the driver’s cabin, a humanized integrated operation design is adopted: the lifting of the tank body, the opening and locking of the rear door can all be completed in the driver’s cabin, and there are interlock devices and warning lights to prevent incorrect operation, ensuring the reliability and safety of the entire vehicle operation.
