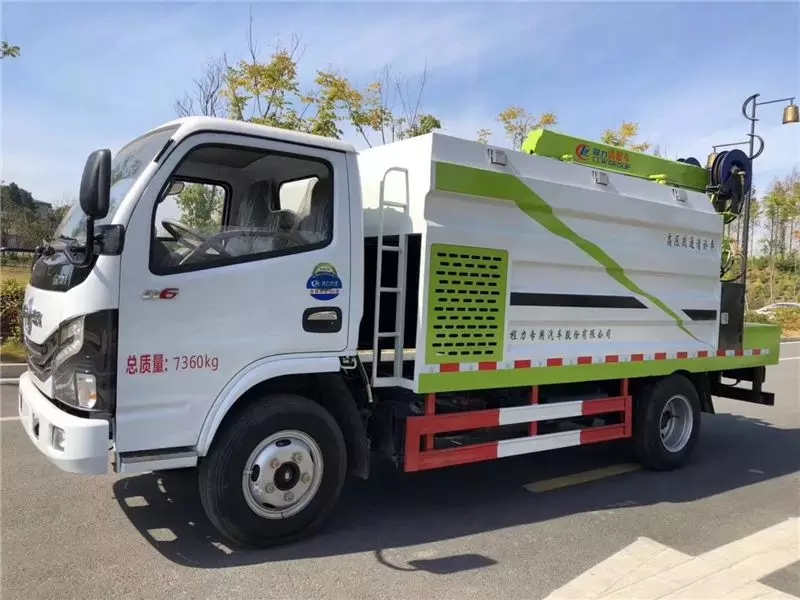

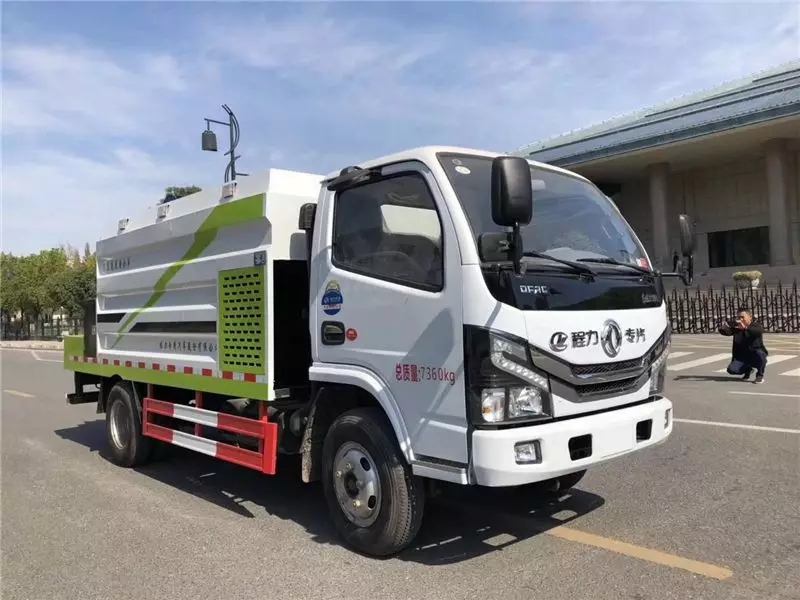

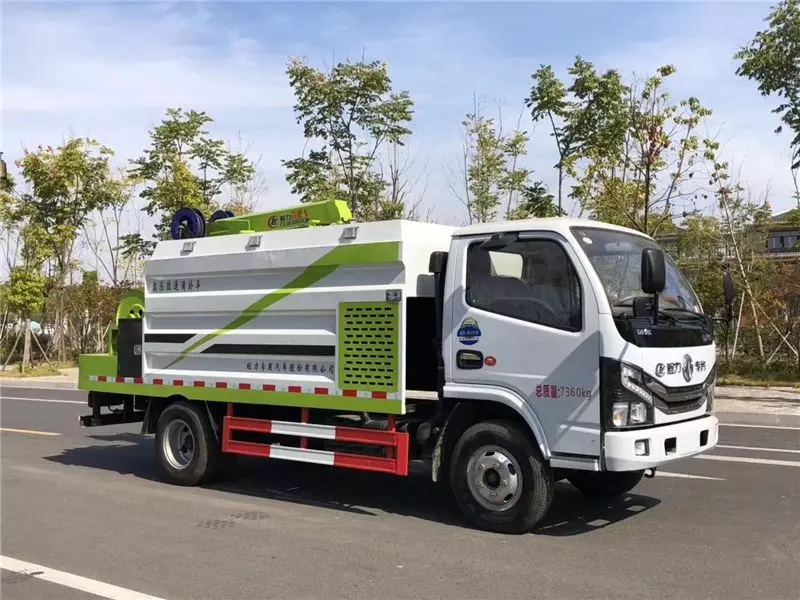

The Dongfeng Doli Ka dredging vehicle. The model of the high-pressure pump selected for this vehicle: imported high-pressure pump. Pressure: 16 Mpa, Flow rate: 170 L/min, Rubber hose length: 60m, Rolling pipe force: 1800N, Inner diameter of the rubber hose: φ19 mm, Connector type: 0, Rolling speed: 0 - 25m/min, Angle of the hole clamp: 15°, 25°, Propulsion force: ≥ 180 N. The vehicle is equipped with 10 different types of high-pressure nozzles. Nos. 1-5 are used for pipe cleaning, and Nos. 6-10 are used for pipe flushing.
A water tanker equipped with a high-pressure pump is used to clean the sediment in the city’s sewer system and clear the drains. It can also be used to clean industrial drainage pipes, walls, etc. This vehicle can be equipped with a watering function and can be used for watering, transporting water and washing roads. In emergencies, it can be used for firefighting.

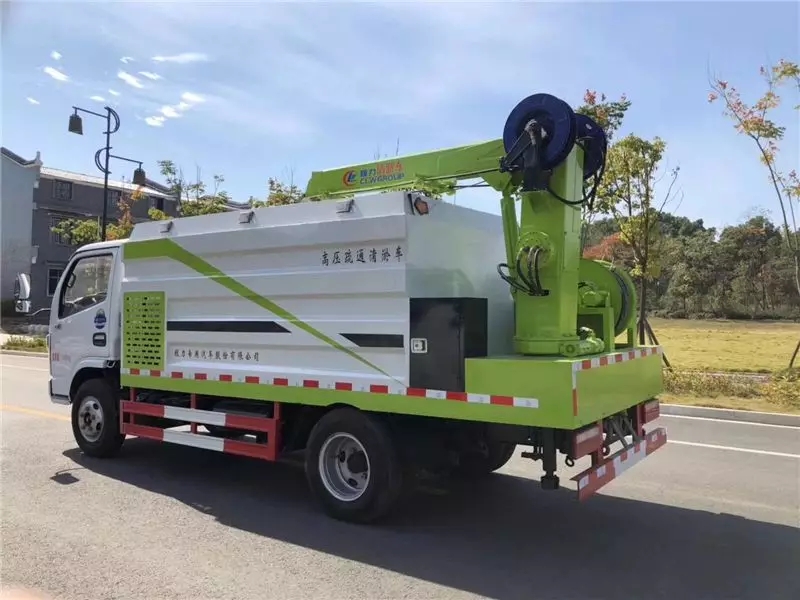

The dredging function of the CLW5040TQYD5 type dredger is equipped with a two-paddle hydraulic mechanical arm, with hydraulic pipe and steel wire, resistant to high pressure, and featuring a synchronous auxiliary function with steel wire rope through a multi-path valve. The mechanical arm can descend to a depth of 8/10 meters. The operation mode includes manual and wireless remote control. It is simple to operate, efficient, time-saving, and labor-saving.
Product features and advantages:
Adaptable: Capable of operating in any harsh environment such as manholes, debris pools, oil tanks, rainwater wells, biogas tanks, septic tanks, etc. for the removal of sediment. Deep excavation capacity: It can dig to a depth of 10 meters for garbage in well-type pits. The working range of the mechanical arm is 1000-1200, with a volume of 0.075 cubic meters, and the sludge removal rate is 95%. Truly achieving multi-purpose in one vehicle.
