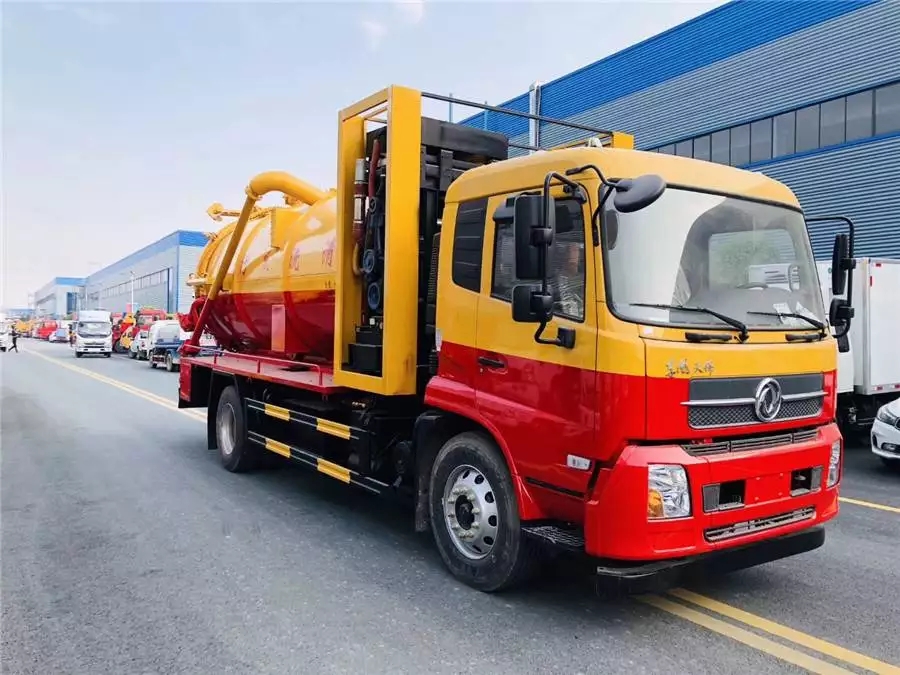

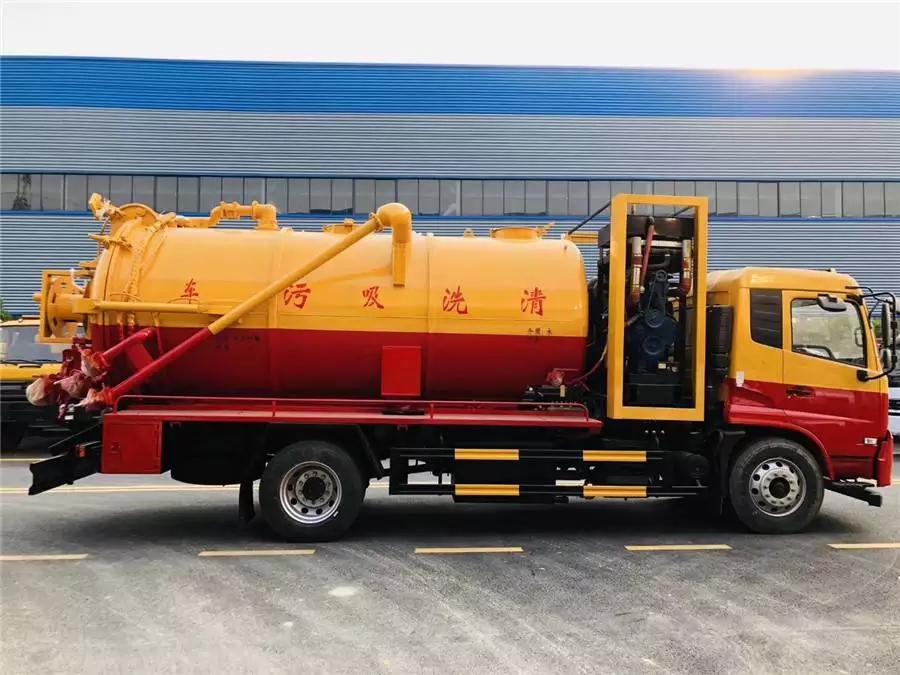

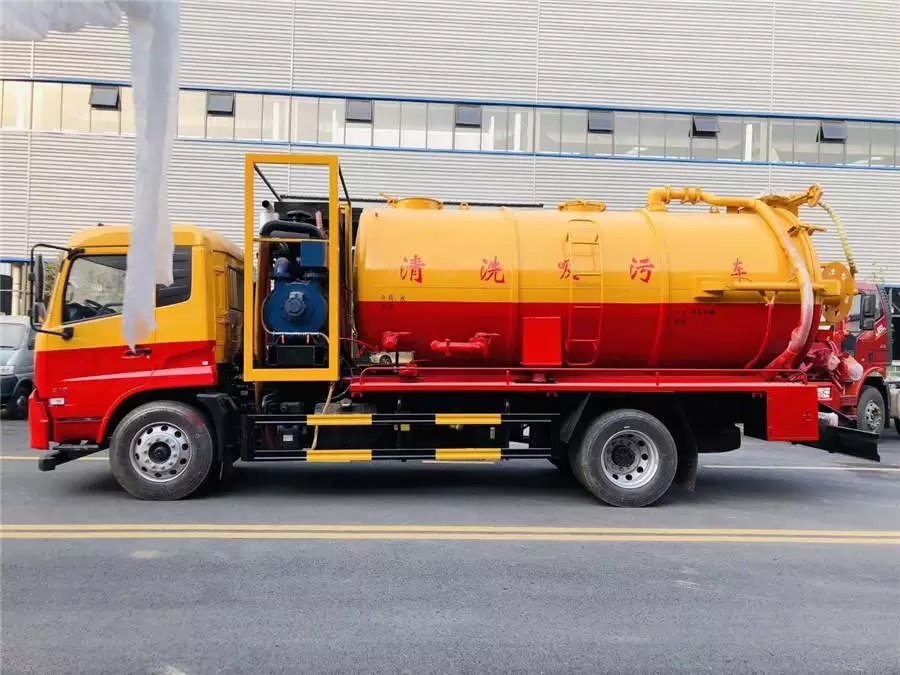

The Dongfeng 14 Fanzhanting 210-horsepower cleaning and sewage suction vehicle has a fire hydrant inlet on each side of the water tank, one on the passenger side leading to the top of the tank, a 65 drainage valve at the bottom of the water tank, a hand washing valve installed on one side, a sight pipe installed, an exhaust valve on the tank top, and the rest are sewage. There are two drainage outlets on the tank top (with a ladder), and the two compartments are interconnected by ball valves. There is an interconnection valve on the tank top. In the middle of the two compartments, a 8mm head is used, the high-pressure pump is connected to the air, a small ball valve is installed at the bottom of the high-pressure pump, with a sandwich core device, connected to a clean or double-yang 250 flow rate high-pressure cleaning pump, 60 meters 25mm Shenyang Xinfuyu high-pressure pipe, DN89mm high-pressure pump inlet pipe, with a filter screen, after being rolled up, the head is rotated 180 degrees, and the roll-up device is equipped with hydraulic rotation.

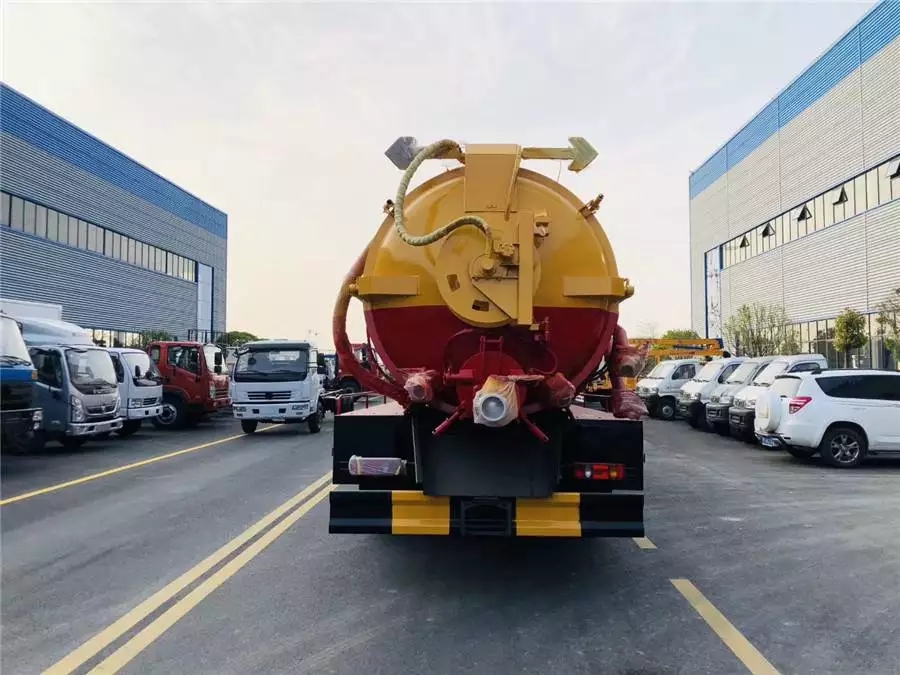

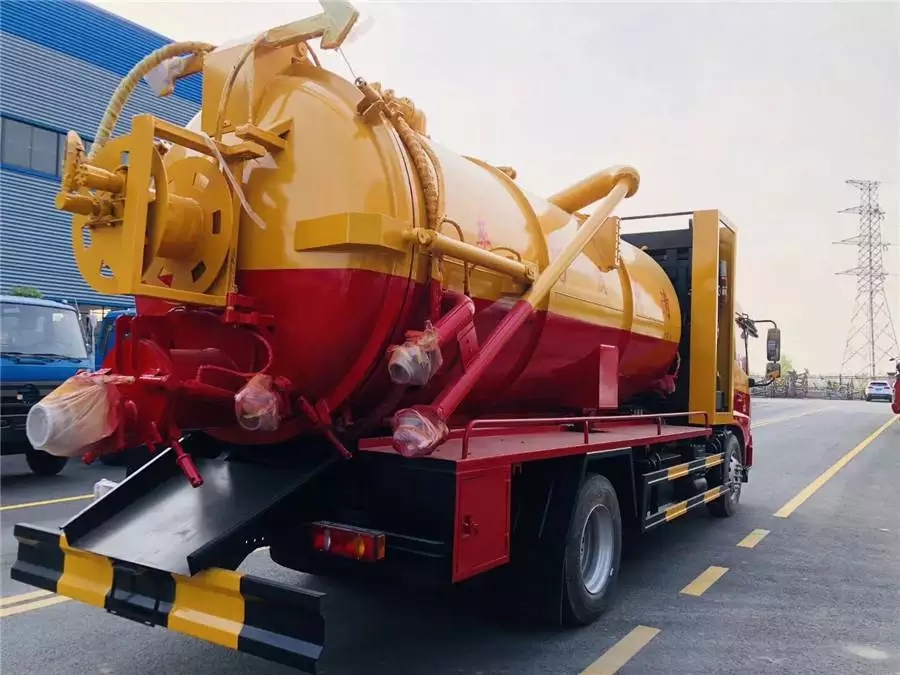

The 14-axle Tianjin Sky 210-horsepower cleaning and sewage suction vehicle is equipped with a rear cover. On the large cover, there is also a small rear cover. The small rear cover is used for draining water and disposing of some small-sized garbage. For the larger pieces of garbage, the large rear cover needs to be opened for removal.
The equipment part of the Dongfeng 14 Fangtianjing 210-horsepower cleaning and sewage suction vehicle:

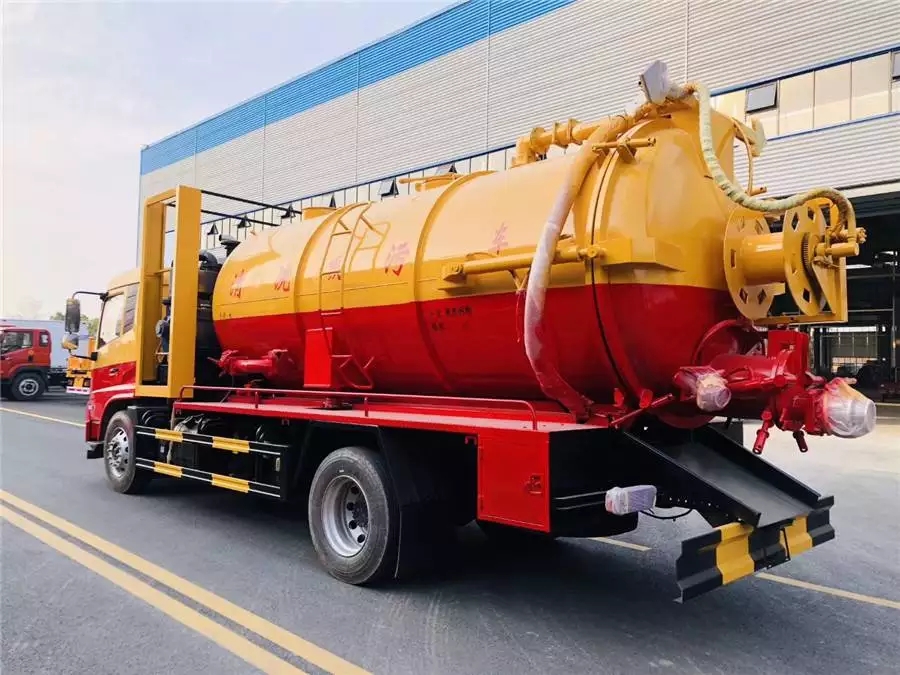

1. The capacity of the sewage suction tank is 9 cubic meters. The material thickness of the suction tank head is 6mm, and the thickness of the cylinder body is also 6mm. There is a 45-degree hydraulic self-unloading device in the middle of the tank body, and the rear head is equipped with a top hydraulic self-unloading device. There are 4 locking devices with wrenches. There are 2 6mm reinforced anti-wave partitions inside the suction tank. The vacuum sewage suction pump can use the SK-12 water circulation pump. The water circulation pump tank is made of stainless steel. The top of the suction tank body is equipped with a 360-degree rotating ordinary manual lifting frame, a high-profile overflow valve, and an electronic full-tank alarm.
2. The volume of the two-side high-pressure cleaning water tanks is 4.5 cubic meters, and the thickness of the tank steel plates is 4mm. The high-pressure cleaning pump uses the Tianjin Tongjie high-pressure piston pump with a flow rate of 215L/min and an outlet pressure of 22-24 megapascals. The length of the high-pressure pipe is 60 meters, and it is equipped with 10 high-pressure cleaning heads of 1-10 numbers in total.
3. The bottom of the water tank is connected in an open and movable manner. The operation box is installed at the rear of the vehicle body, and the large box above the front high-pressure plunger pump is equipped with an aluminum alloy rolling shutter maintenance door.
