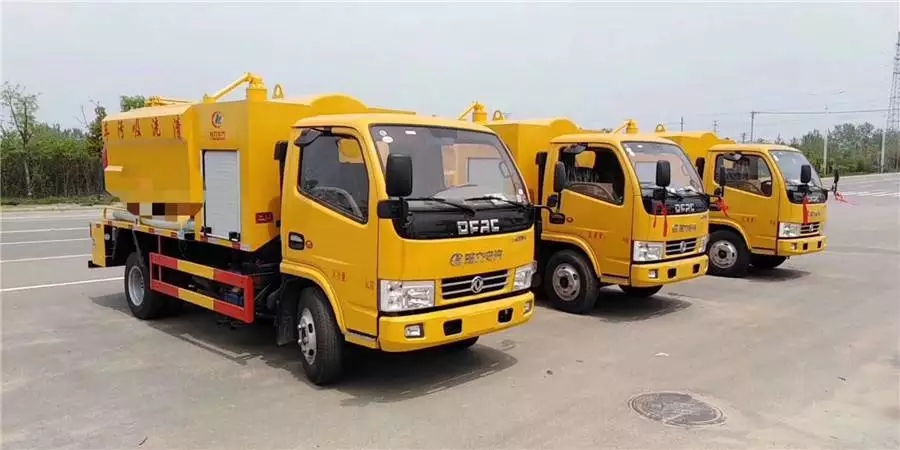

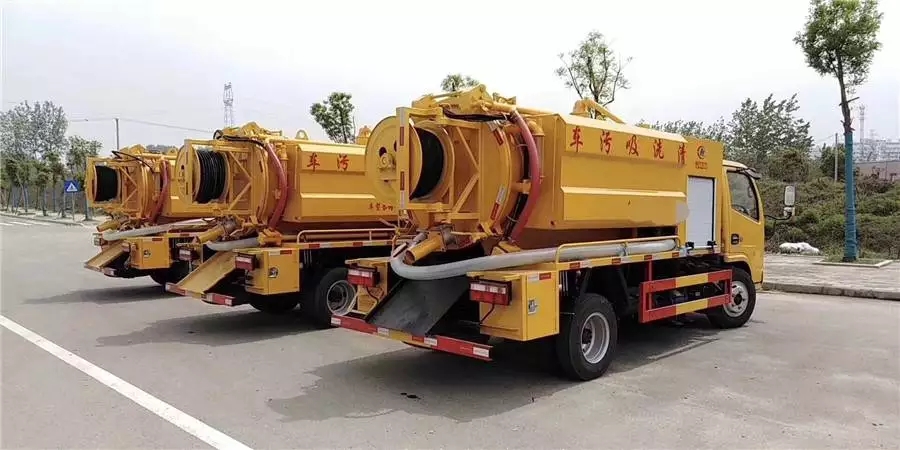

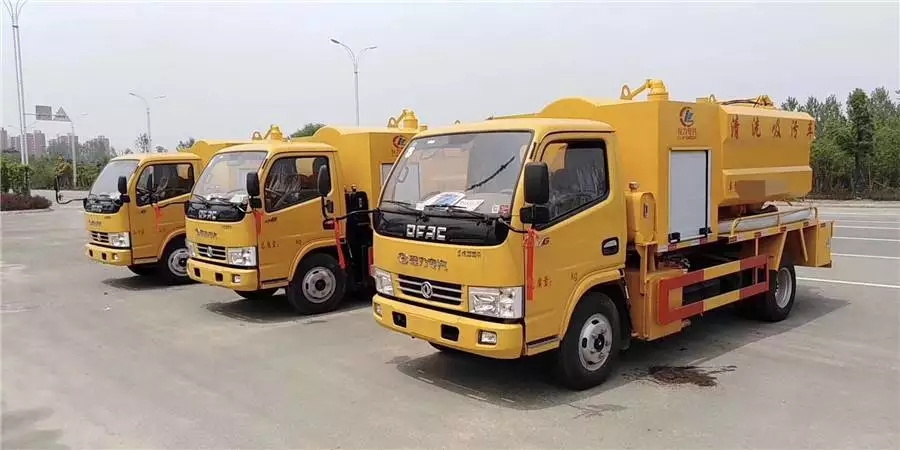

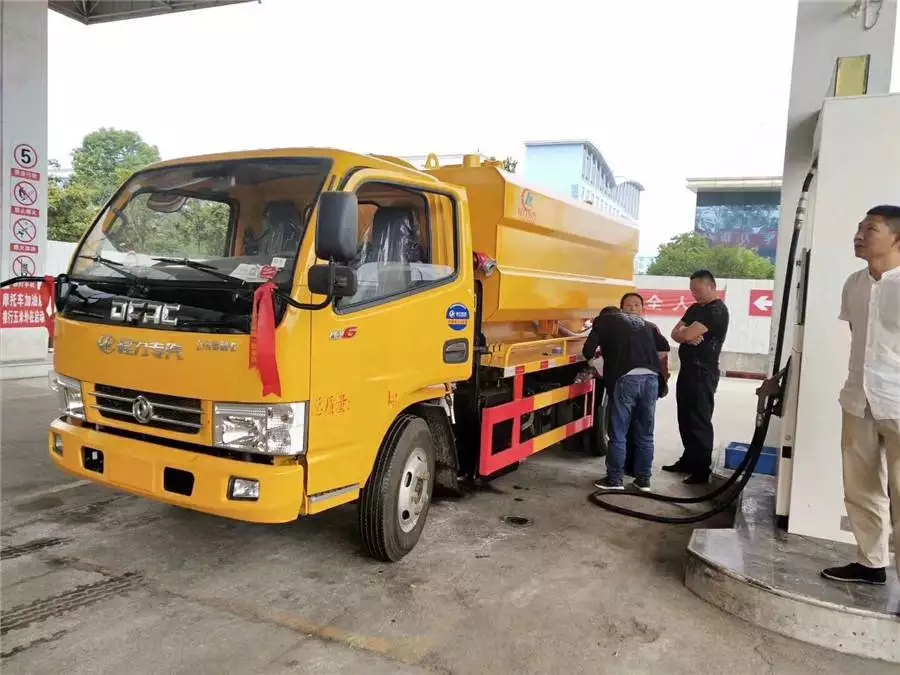

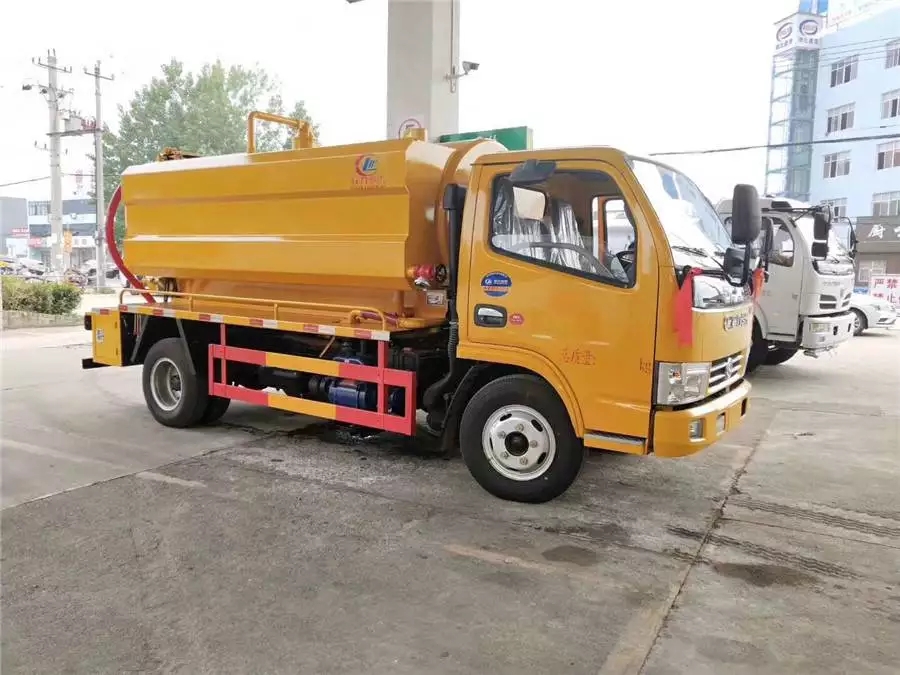

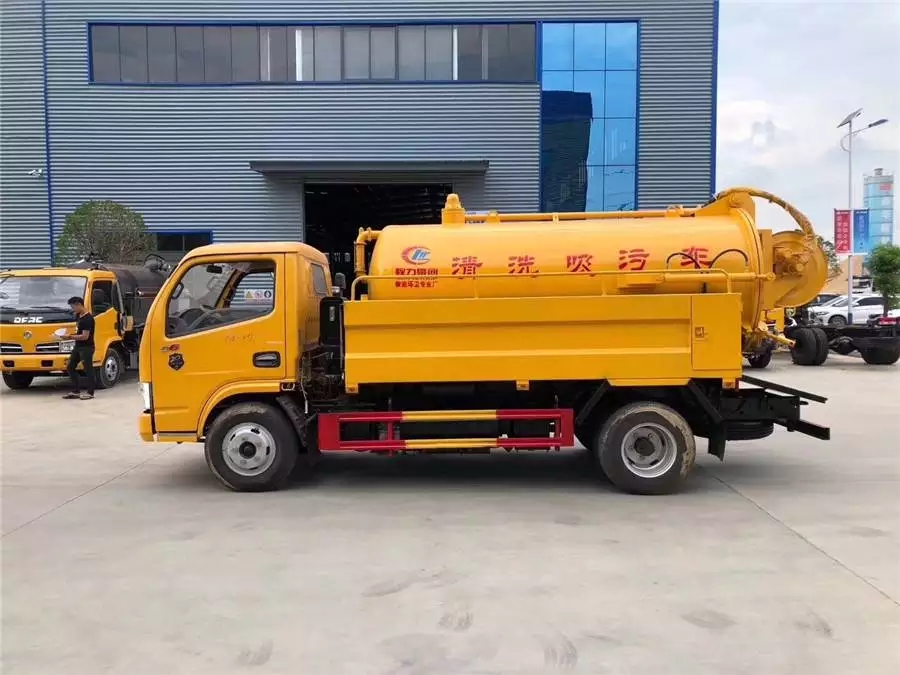

5-Party Blue Plate Cleaning and Sewage Absorption Vehicle
The load capacity of the sewage tank is 2665 kilograms.
Effective volume: 3.0 cubic meters.
Medium: Liquid waste.
Density: 900 kilograms per cubic meter;
The capacity of the water tank is 1400 kilograms.
Effective volume: 1.47 cubic meters.
Medium: Water
Density: 1000 kilograms per cubic meter. The total loaded mass of this vehicle is 4065 kg = the loaded mass of the sewage tank 2665 kg + the loaded mass of the fresh water tank 1400 kg. Protective material: Q235A carbon steel.
Connection method: The left and right side panels as well as the rear lower part of the protection are all connected by welding.
Rear anti-collision section dimensions (mm): 100 × 50
  Height of rear protection from ground (mm): 510. Corresponding relationship between vehicle length and wheelbase (mm): 70 x 10 / 36 x 50;
7160/3800;
7310/3950;
7650/4200;
7860/4500. The model of ABS is 3631010-C2000.
The manufacturer is Eastcocknor Commercial Vehicle Brake System (Shiyan) Co., Ltd. The water tank and the sewage suction tank are two separate tanks.
When performing the cleaning function, use the water tank.
When performing the sewage suction function, use the sewage suction tank.
The two functions of cleaning and suction cannot be used simultaneously.
The two tanks cannot be filled simultaneously. The special device is a high-pressure pump.
