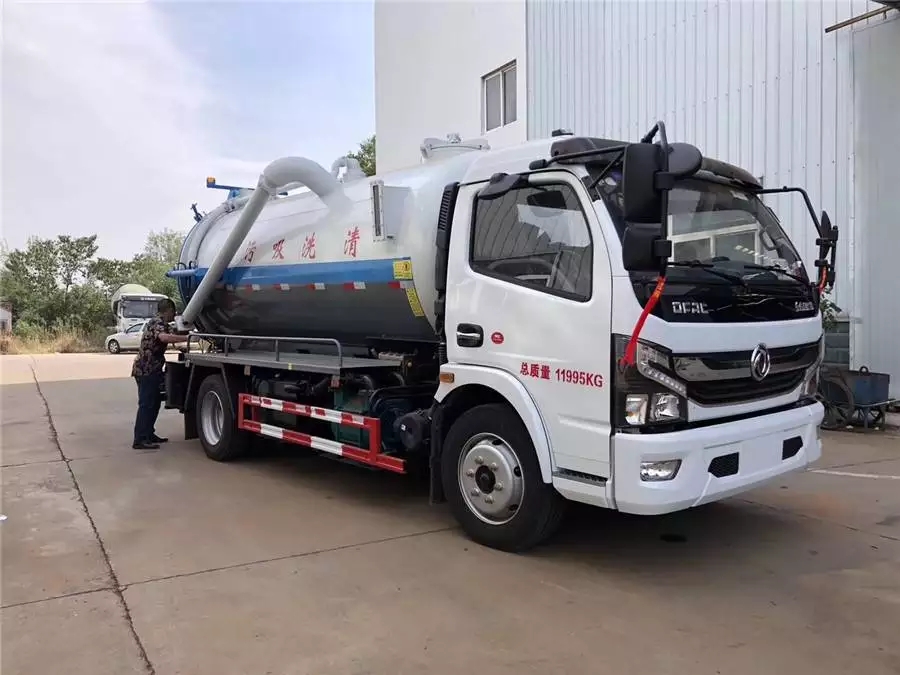

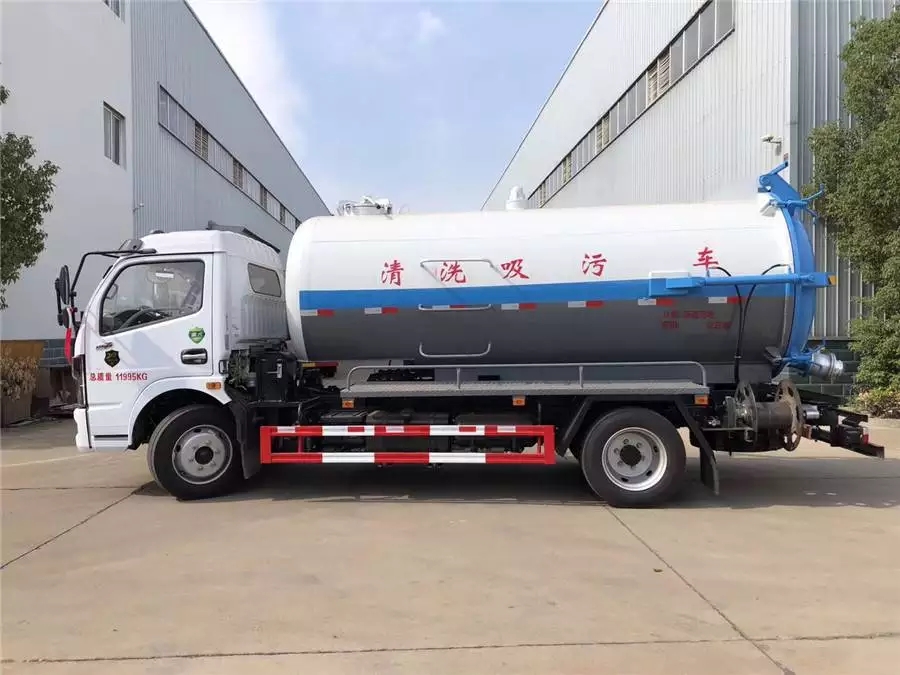

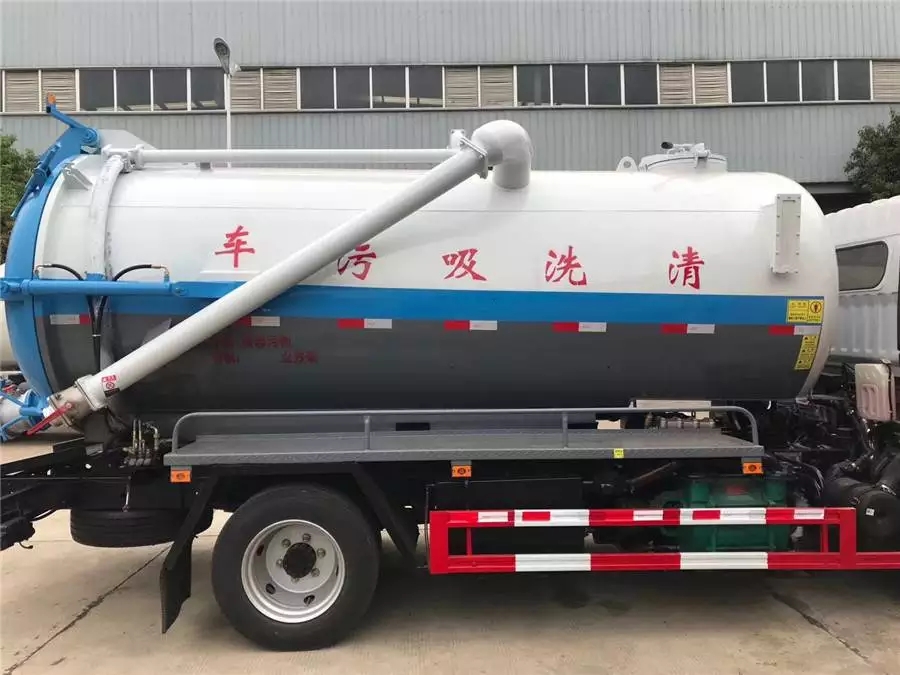

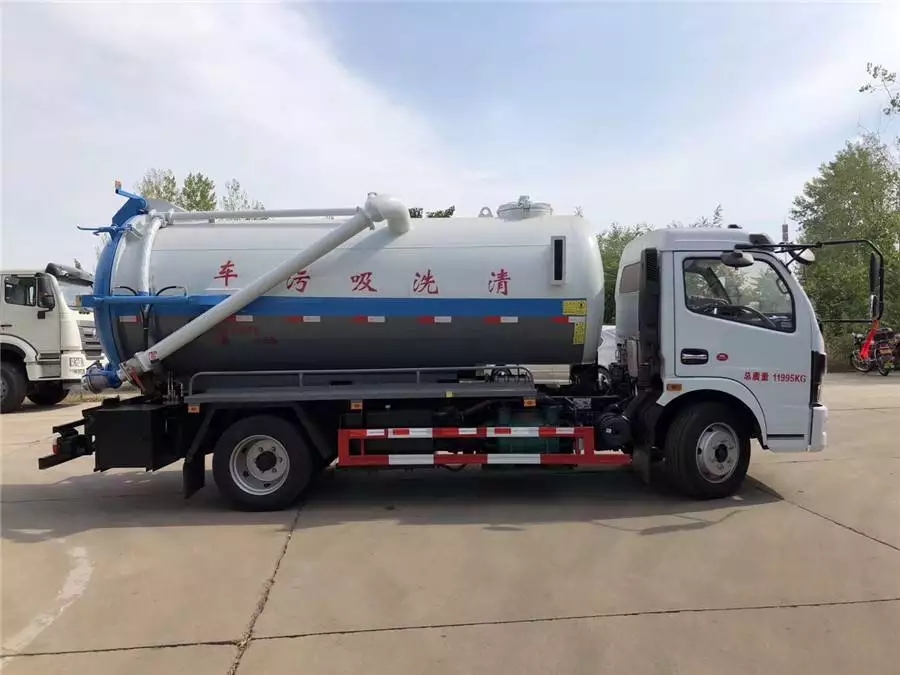

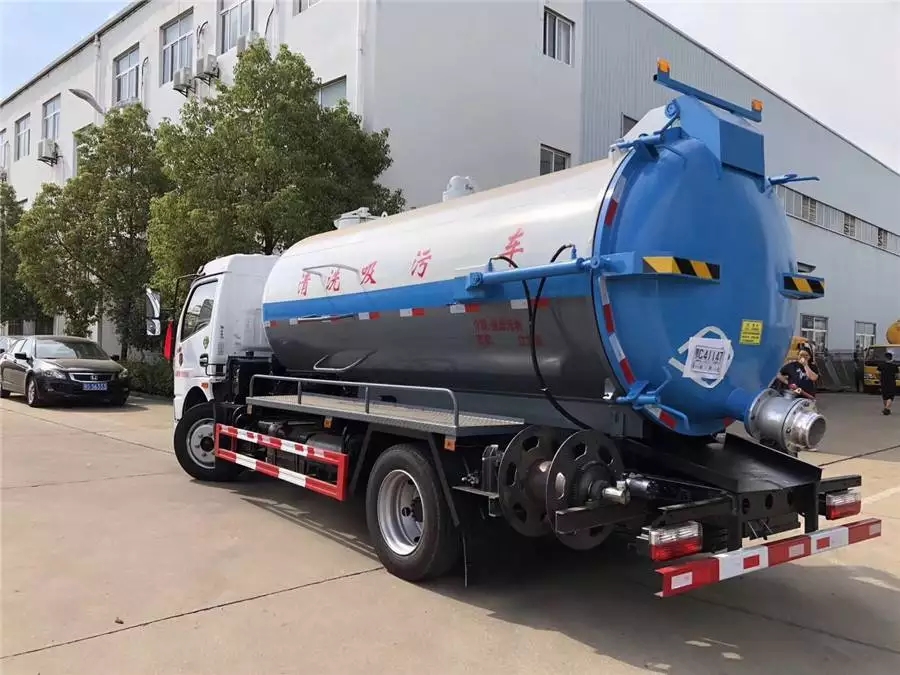

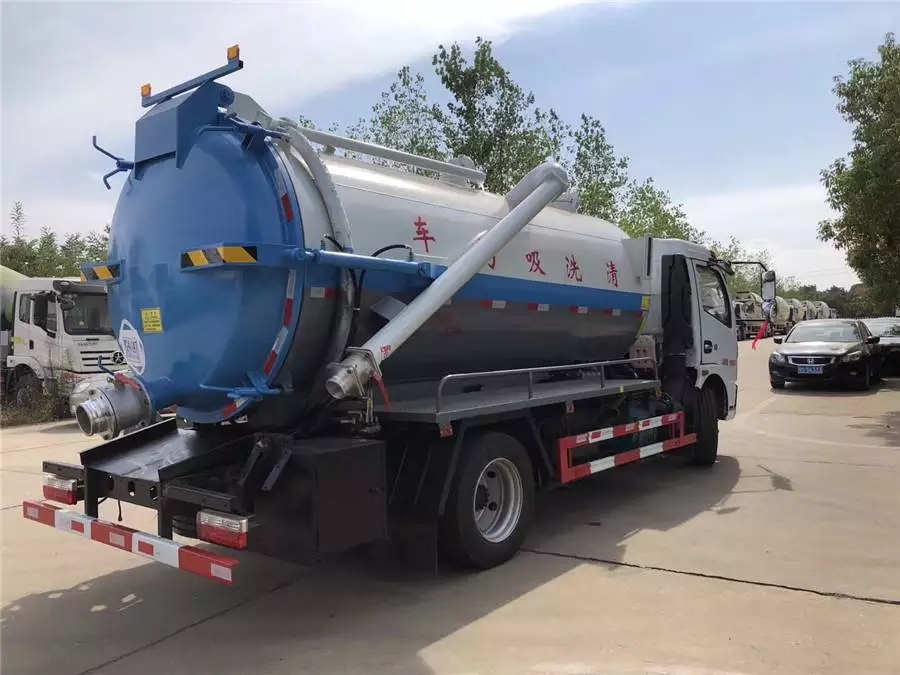

Dongfeng 8-cubic-meter integrated tank cleaning and sewage suction truck. Tank dimensions (straight section length × diameter) (mm): 4100 × 1600, tank capacity: 9 cubic meters, tank wall thickness: 6 mm, self-unloading lift top, large lid opening, one 150 mm排污 ball valve on the large lid, viewing window for feces. Cleaning system: equipped with Pinfu 215 high-pressure pump, side-mounted 60 small reel, one tool box. Suction system: SK-12 type water circulation pump, with 100 mm side suction, elevated anti-surge valve. Paint color: blue, silver, gray.
The Dongfeng 8-sided integrated tank cleaning and suction truck uses a water circulation pump that operates with water as the working fluid. During operation, the water serves as a coolant, enabling prolonged use without damaging the pump. However, since water circulation pumps are typically paired with an engine unit, the purchase cost is relatively higher. Because water can easily freeze, special attention must be paid to anti-freeze measures in winter or cold regions—water in the tank must be drained after work each afternoon. The vacuum pump (vane-type vacuum pump) primarily relies on rotating vanes and uses oil as the working fluid. Due to the high-speed rotation of the vanes, the pump interior can quickly overheat. Therefore, after emptying one tank, it’s necessary to pause briefly to allow the pump to cool down, preventing overheating that could damage or burn the internal vanes.
Dongfeng 8-sided integrated tank cleaning and vacuum truck, Kaiptu China VI dual-purpose cleaning and suction vehicle, equipped with Dongfeng Kaiptu D7/2030 single cab EQ1125SJ8CDC chassis, CY4SK361 engine with 170 horsepower, 3800 mm wheelbase, Wanliyang 6TS55 gearbox, 245/70R19.5 vacuum tires, 192 double-layer frame, air conditioning, power windows, central locking, ABS, air brake system, multi-function steering wheel, cruise control.
