I. Chassis Configuration

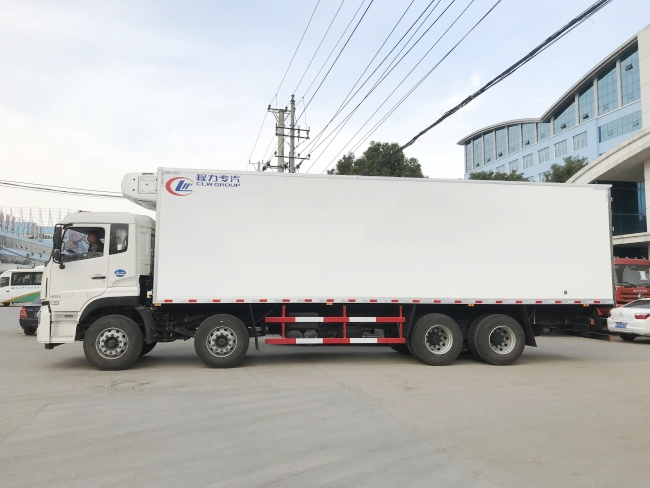

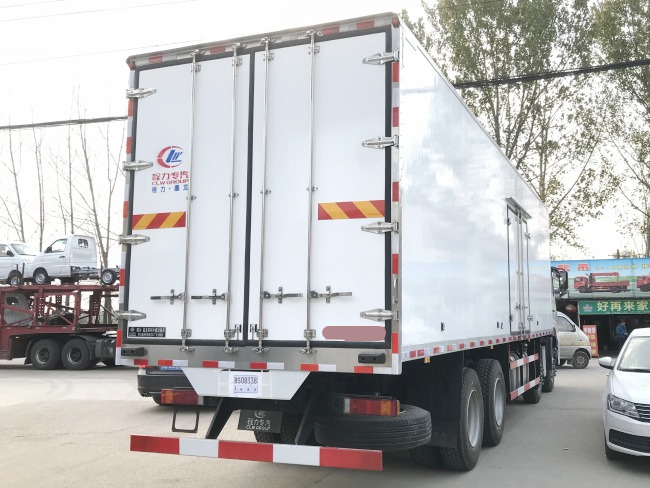

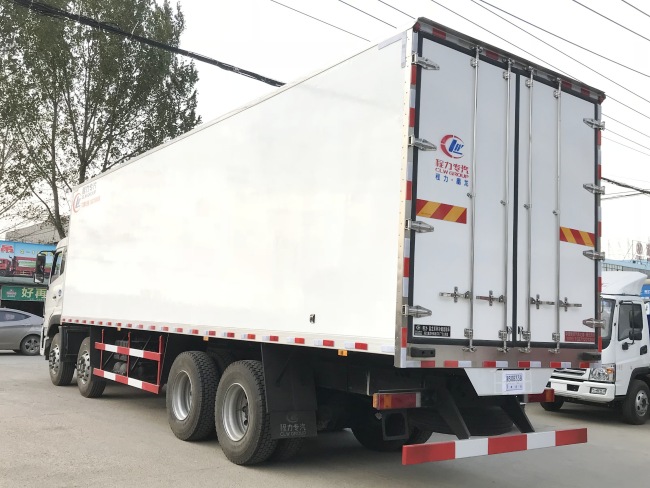

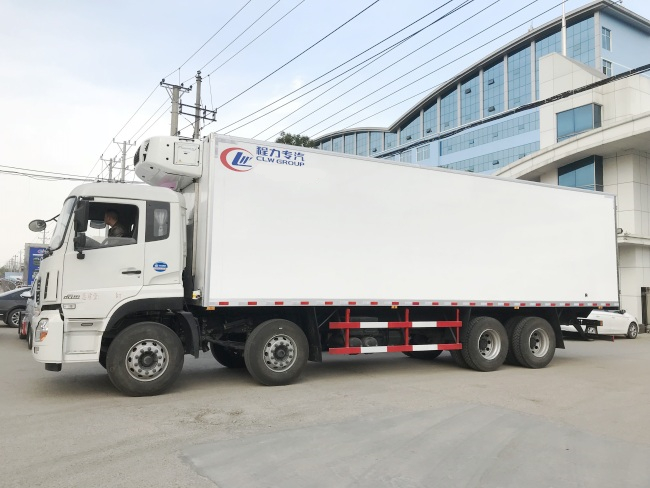

The chassis of Dongfeng Tianlong is of the front four and rear eight type. The cab can be selected as the high-roof or flat-roof cab of Tianlong. The internal dimensions of the container body are 9400X2440X2450 (mm) with a volume of 56 cubic meters. Optional options include: 1. Dongfeng Kaiming Euro V 315 horsepower 6-cylinder engine; 2. Dongfeng Renault Euro V 350 horsepower 6-cylinder engine; 3. Dongfeng Renault Euro V 420 horsepower 6-cylinder engine; 4. Dongfeng Volvo Euro V 350 horsepower 6-cylinder engine; Other configurations: Shaode 12-speed manual transmission, 5-ton double front axles, 10-ton single-stage reduction rear double axles, wheelbase 1850X4600X1350mm, air brakes (with emergency air brakes), inter-axle differential lock, power-assisted steering, power-assisted clutch, full-floating mechanical shock absorber, electric windows, rearview mirror heating, central locking, airbag seats, air conditioning, cruise control system, GPS positioning driving recorder, 4-channel ABS, 580L aluminum alloy fuel tank, 12 tires, 11.00R20 radial tires, total mass 31000kg, rated load capacity 17220kg, curb weight 13650kg! Yellow license plate, Euro V era environmentally friendly compliant vehicle, with fuel announcement.

II. Box Configuration
Our company’s “Jinglong Technology” adopts a 1200-ton hydraulic heating curing equipment integrated production line for manufacturing. The insulation technology of the box body meets the national A-level standard. 1. It is made by bonding polyurethane foam boards with full-sealed resin glue under high pressure heating curing, and the thickness of the box panel is 8 cm; 2. The inner and outer materials of the box panel are 2.5mm thick new fiberglass; 3. The bonding auxiliary materials are glass fiber cloth; 4. The polyurethane foam insulation material is the main component of the plate structure; 5. It is bonded with full-sealed resin glue; 6. Pre-installed solid wood box body reinforcement; 7. The box frame is supported by anti-rust treatment channel steel; 8. Aluminum alloy edge wrapping / stainless steel corner wrapping; 9. LED lighting fixtures are installed inside the box; 10. LED width indicator lights are installed on the box; 11. LED edge lights are added above 3.5 meters of the box; 12. The rear door frame of the box is made of stainless steel and equipped with stainless steel hinges (commonly known as: stainless steel hinges); 13. Thickened stainless steel lock components; 14. Anti-collision rubber blocks are added to the rear door; 15. Use of EPDM rubber sealing strips; 16. 3M reflective adhesive sheets.
III. Optional Refrigeration Unit
According to your needs, you can choose different refrigeration units ranging from -5℃ to -29℃. The imported refrigeration units are from brands such as Carrier (USA), Kairon (USA), Denso (Japan), and Han-Ya (Korea). The domestic refrigeration units are from brands like Jingda K brand, Kaixue, Bingsen, Huatai, Hanyue, Xiangyang Han-Ya, Songhan, Aitek, Guo Bing, Xiangxue, etc. The refrigeration units are divided into standalone units and split units (the standalone units come with imported silent engines for refrigeration, which are expensive, while the split units are driven by the vehicle’s own engine to drive the compressor for refrigeration). We can recommend a suitable refrigeration unit based on your vehicle usage requirements. The refrigeration units can be equipped with 1. backup power supply device; 2. heating device; 3. optional dual-temperature unit.

IV. Optional Configurations
1. Option to install a door on the right side of the box body; 2. Option to install an aluminum ventilation slot (installing the ventilation slot helps with air circulation and improves the cooling effect by 50%); 3. Option to install reinforced installation rails for the meat hooks (can choose straight rails or mechanical rails); 4. Option to use fully sealed stainless steel for the interior of the box (seafood processing requires additional installation, as seawater is corrosive); 5. Option to connect an external power supply of 280V-380V (after parking and turning off the engine, the refrigeration unit can continue to cool); 6. Option to install a 3G mobile temperature and humidity real-time monitoring device (can also choose to be equipped with a printing device)!

V. Pharmaceuticals and Vaccines
1. For pharmaceuticals and vaccines, GSP certification is required. Stainless steel ventilation slots on the side of the container and ventilation slots at the bottom of the container need to be installed; 2. A 3G mobile temperature and humidity real-time monitoring device with a printing function needs to be added!

VI. Medical Waste
Based on the regular refrigerated vehicle, the interior of the box must be made entirely of sealed stainless steel. An additional stainless steel sealed inner-opening door should be installed inside the box, along with a disinfection spray device, a UV disinfection device, and a waste liquid overflow box at the rear of the box!

VII. Body Modification
The interior of the body can be customized according to customer requirements! The entire vehicle has a valid chassis certificate, vehicle certificate, vehicle purchase tax invoice, vehicle tools, vehicle warranty manual, vehicle operation manual, list of national service stations, etc. It can be registered nationwide, which is convenient and fast!

VIII. Pictures of Meat Hook Guide Rails / Aluminum Alloy Ventilation Slots
1. During the production process, the body of the meat hook refrigerated vehicle must be reinforced. Depending on the size of the body, 3, 4, or 5 guide rails can be selected.
2. The thickened aluminum alloy ventilation slot can withstand the ventilation slot from deforming when the trolley is loading or unloading goods in the body. The main function of the ventilation slot is to enhance the circulation of the cold air from the refrigeration machine within the body, increasing the cooling effect by 50%. This ensures that the goods will not rot or deteriorate during long-distance transportation. Moreover, the aluminum material is simple and easy to clean.
