I. Box Configuration

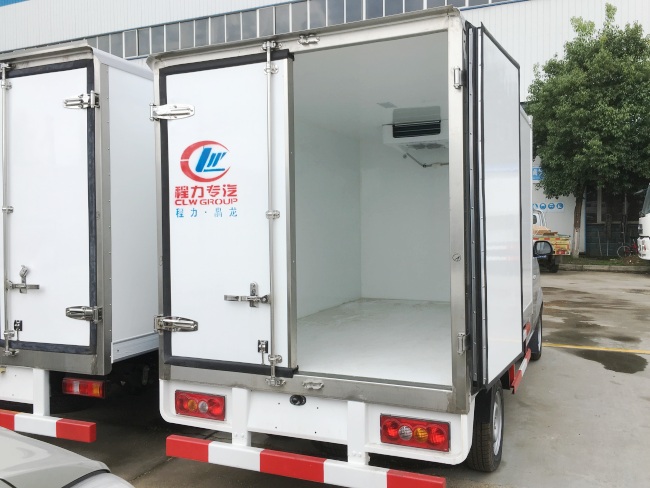

Our company’s “Jinglong Technology” adopts a 1200-ton hydraulic heating curing equipment integrated production line for manufacturing. The insulation technology of the box body meets the national A-level standard. 1. It is made by bonding polyurethane foam boards with full-sealed resin glue under high pressure heating curing, and the thickness of the box panel is 8 cm; 2. The inner and outer materials of the box panel are 2.5mm thick new fiberglass; 3. The bonding auxiliary materials are glass fiber cloth; 4. The polyurethane foam insulation material is the main component of the plate structure; 5. It is bonded with full-sealed resin glue; 6. Pre-installed solid wood box body reinforcement; 7. The box frame is supported by anti-rust treatment channel steel; 8. Aluminum alloy edge wrapping / stainless steel corner wrapping; 9. LED lighting fixtures are installed inside the box; 10. LED width indicator lights are installed on the box; 11. LED edge lights are added above 3.5 meters of the box; 12. The rear door frame of the box is made of stainless steel and equipped with stainless steel hinges (commonly known as: stainless steel hinges); 13. Thickened stainless steel lock components; 14. Anti-collision rubber blocks are added to the rear door; 15. Uses EPDM rubber sealing strips; 16. 3M reflective adhesive sheets.
II. Optional Refrigeration Unit
According to your requirements, you can choose different refrigeration units ranging from -5℃ to -29℃. The imported refrigeration units are from brands such as Carrier from the United States, Kairon from the United States, Denso from Japan, and Hanya from South Korea. The domestic refrigeration units are from brands like Jin Da K brand, Kaixue, Bingsen, Huatai, Hanyue, Xiangyang Hanya, Song Han, Aitek, Guo Bing, Xiangxue, etc. The refrigeration units are divided into standalone units and split units (the standalone units come with imported silent engines for refrigeration, which are expensive, while the split units are driven by the vehicle’s own engine to drive the compressor for refrigeration). We can recommend a suitable refrigeration unit based on your vehicle usage needs. The refrigeration units can be equipped with 1. backup power supply device; 2. heating device; 3. optional dual-temperature unit.

III. Optional Configurations
1. Option to install a door on the right side of the box body; 2. Option to install an aluminum ventilation slot (installing the ventilation slot helps with air circulation and improves the cooling effect by 50%); 3. Option to install reinforced installation rails for the meat hooks (can choose straight rails or mechanical rails); 4. Option to use fully sealed stainless steel for the interior of the box (seafood processing requires additional installation, as seawater is corrosive); 5. Option to connect an external power supply of 280V-380V (after parking and engine shutdown, the unit can continue to cool by plugging in); 6. Option to install a 3G mobile temperature and humidity real-time monitoring device (can also choose to include a printing device)!

IV. Pharmaceuticals and Vaccines
For pharmaceuticals and vaccines, GSP certification is required. Stainless steel ventilation slots on the side of the container and ventilation slots at the bottom of the container need to be installed; 2: A mobile 3G temperature and humidity real-time monitoring device with a printing function needs to be added!

V. Medical Waste
Based on the regular refrigerated vehicle, the interior of the box must be made entirely of sealed stainless steel. An additional stainless steel sealed inner-opening door must be installed inside the box, along with a disinfection spray device, a UV disinfection device, and a waste liquid overflow box at the rear of the box!

VI. Body Modification
The interior of the body can be customized according to customer requirements! The entire vehicle has a valid chassis certificate, vehicle certificate, vehicle purchase tax invoice, vehicle tools, vehicle warranty manual, vehicle user manual, list of national service stations, etc. It can be registered nationwide, which is convenient and fast!

VII. Pictures of Meat Hook Guide Rails / Aluminum Alloy Ventilation Channels
1. The refrigerated truck with meat hooks must have its body reinforced during the production process. Depending on the size of the body, 3, 4 or 5 guide rails can be selected.
2. The thickened aluminum alloy ventilation slot can withstand the deformation of the ventilation slot when the trailer is loading and unloading goods in the body. The main function of the ventilation slot is to enhance the circulation of the cold air from the refrigeration machine within the body, increasing the cooling effect by 50%. This ensures that the goods will not rot or deteriorate during long-distance transportation. Moreover, the aluminum material is simple and easy to clean.
