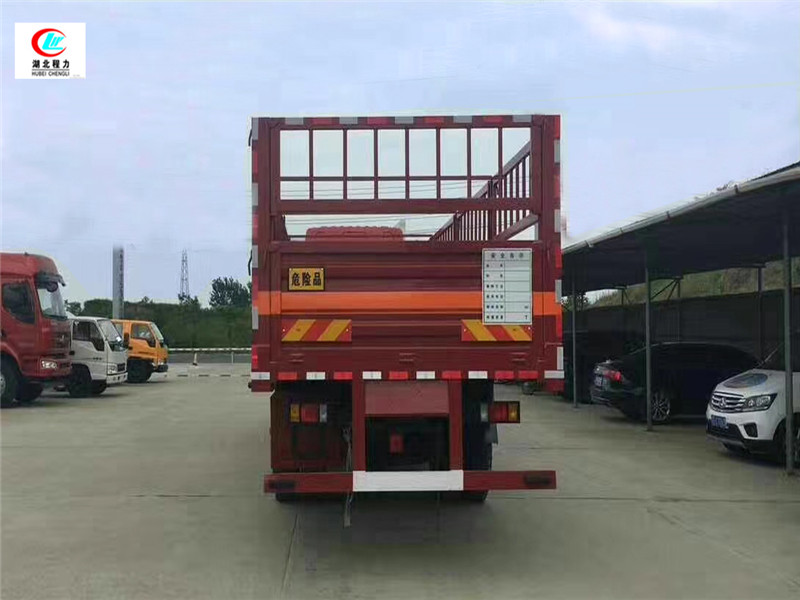

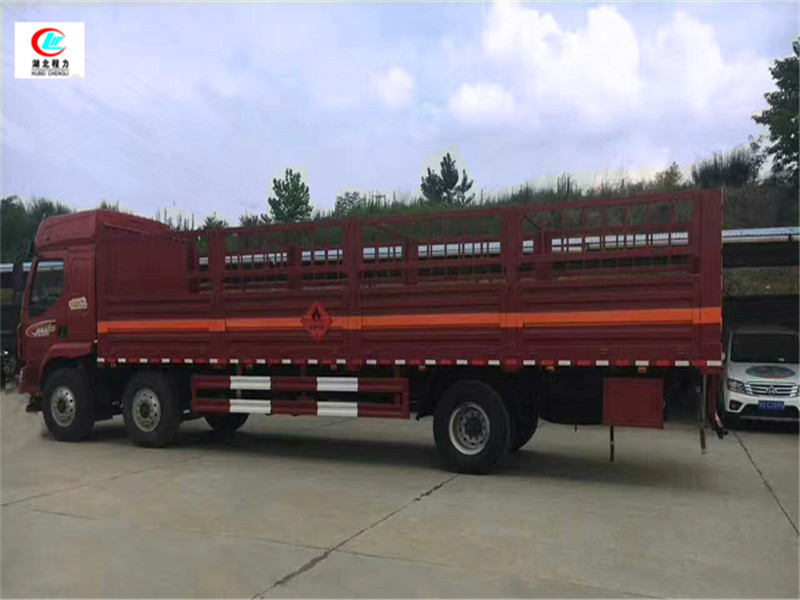

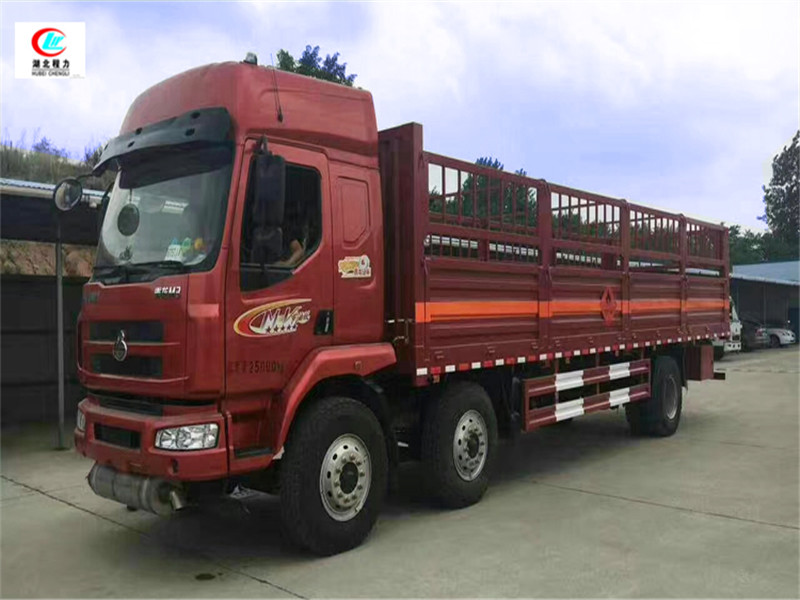

Detailed configuration of the transport vehicle for gas cylinder transportation:

The side panels are folded in half and have four doors. The outer panels are made of 1.2MM thick cold-rolled steel, with a rectangular tube frame as the inner lining for stability. The bottom panel is 3mm thick with a patterned surface, equipped with static discharge strips, fire extinguishers, and fireproof covers. The entire vehicle features national standard reflective markings and warning signs. An option for a fence-free design is available, along with the choice of vehicle color.


Detailed configuration of the tanker truck chassis:


The chassis is equipped with a Yuchai 220-horsepower engine, the M33A high-cab double-seater classic cab, an 8JS85E gearbox, a 153 rear axle / 4.444 / widened brakes, a 282(8) main beam, a 350L aluminum fuel tank, 11.00R20 tires, full-floating cab suspension, hydraulic mechanical flip-up feature, mechanical shock-absorbing seats, WABCO valves (brake master cylinder, air treatment unit, parking control valve), metallic paint, electronically controlled silicone oil fan, imitation桃花木 interior， matching bumpers + fenders， ABS， on-board terminal (driving record device + container for Beidou GPS)， external sunshade， speed limit device， front disc brakes.
