Box volume: 3 cubic meters
2. Box external dimensions: (length × width × height mm): 2000 × 1450 × 1000
3. Hook height mm: 1000

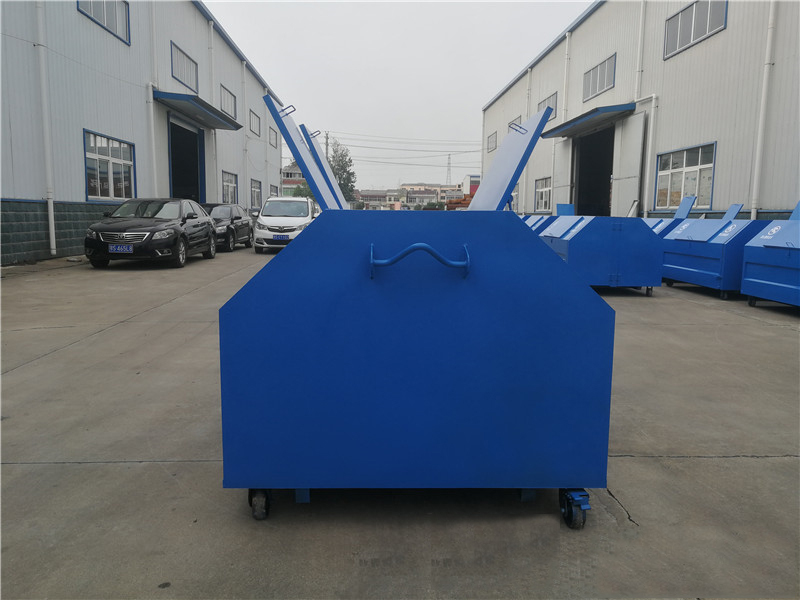

4. Box material: Q235 carbon steel. The actual thickness of the side plates is 1.8/2.5 mm. The main frame of the garbage box’s front and rear doors uses 50×30×1.5 mm thick Q235 square tubes. The bottom channel steel is 100×50×2 mm rectangular square tube. The bottom plate uses two 50×30×1.5 mm square tubes and one locking square tube (40×40×1.5 mm). The front hook of the box uses a 3 cm diameter steel bar.
5. Crossbeam width mm: 890
6. Side door opening method: Lever type
7. The side signs of the box are sprayed according to the requirements of the user unit. The font adopts advanced screen printing technology, which is beautiful and durable.

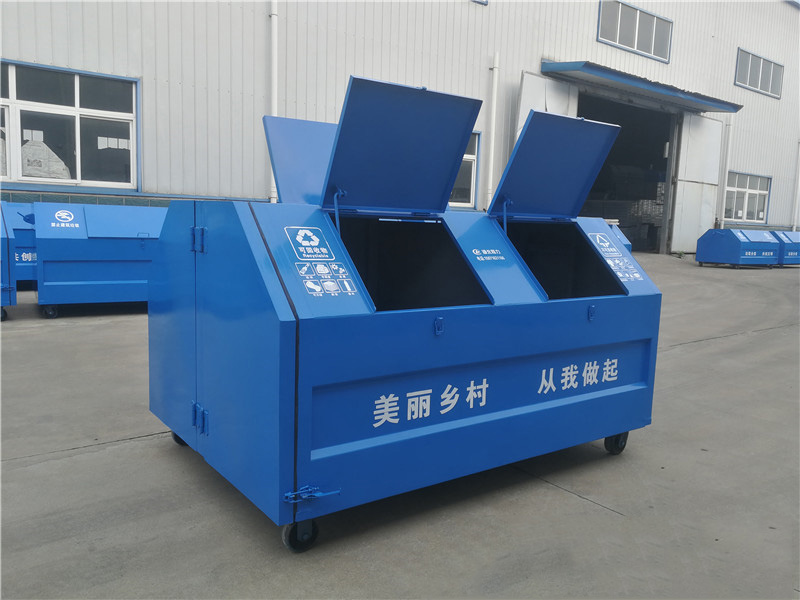

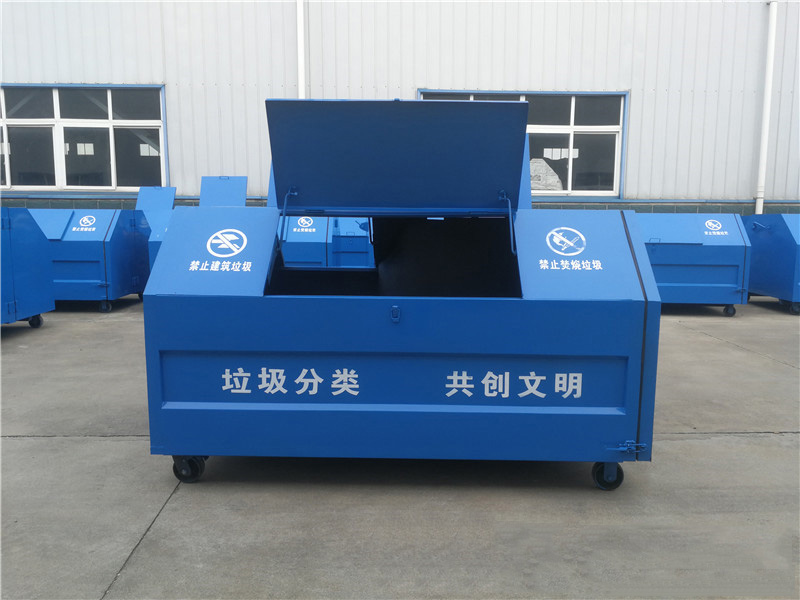

8. The box has two side doors, which are of the up-lift type. The overall box is sealed well, effectively preventing leakage and avoiding secondary pollution. The box is treated with electrostatic spray painting and baking technology. Four rollers are installed at the bottom of the box, and two universal wheels with self-locking function are equipped.
9. Optional pneumatic levers can be added.
