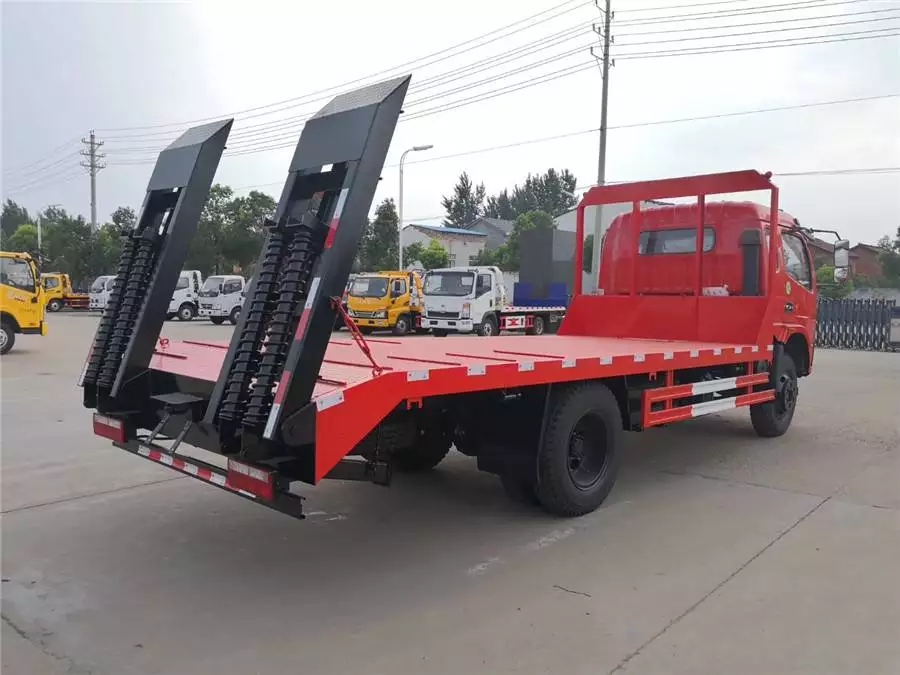

The Dongfeng Dolica type flatbed transport vehicle has a low frame, large carrying capacity and long service life. The front wheels can be turned, with a turning angle of 90°. In the case of uneven construction roads, it can ensure that all tires are in contact with the ground simultaneously, guaranteeing balanced and reasonable force distribution on the frame and tires, and ensuring the safety of the loaded equipment. The vehicle is equipped with a foot brake system and hand brake. At the rear of the vehicle, a special mechanical semi-automatic ladder is installed. Wheeled construction equipment can ascend and descend the platform by itself (without any other lifting equipment or auxiliary tools) and directly connect with the main vehicle.

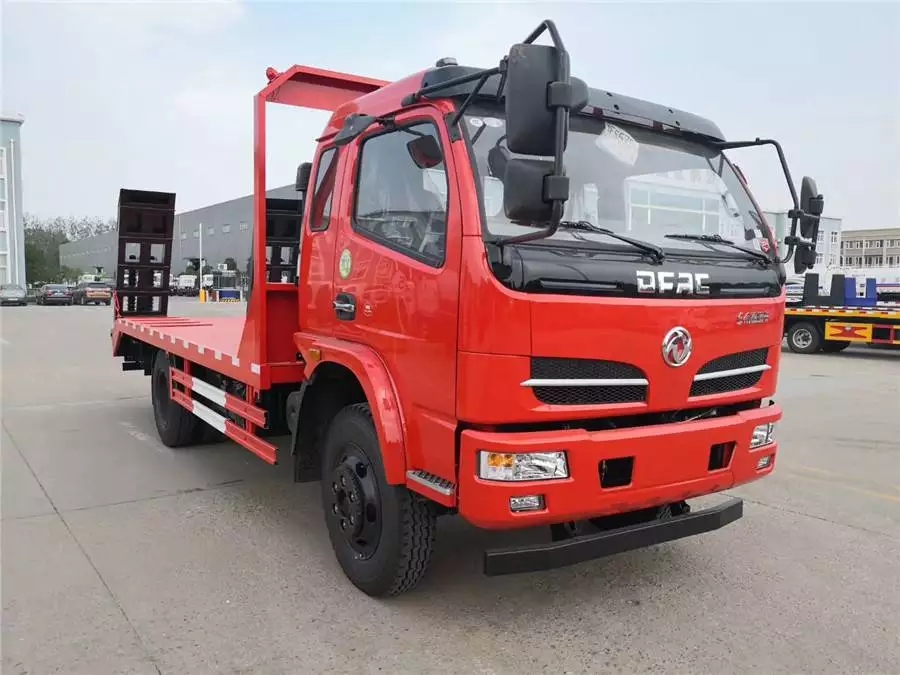

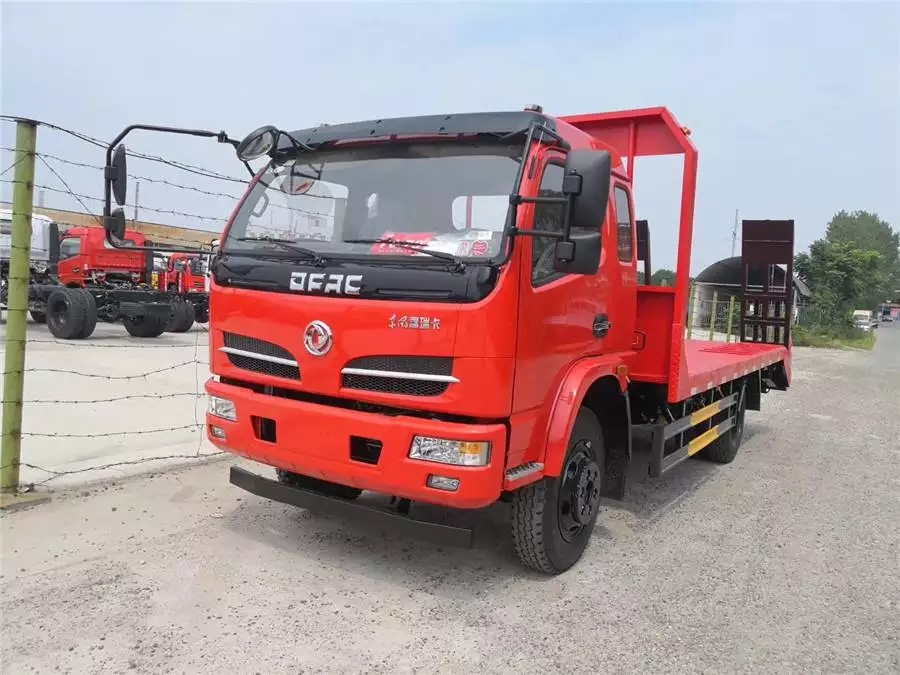

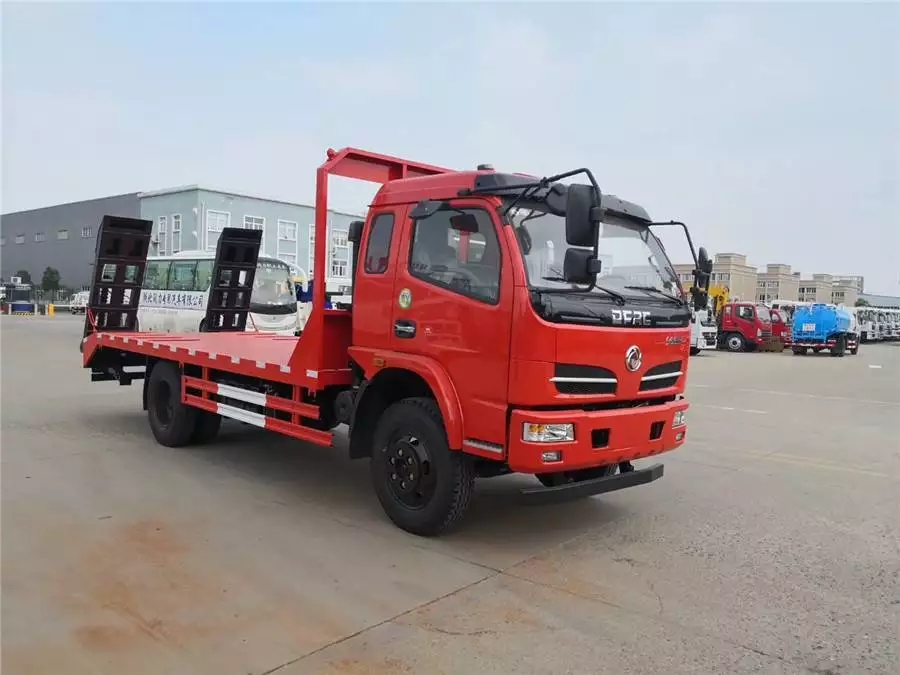

The Dongfeng Furuca 2030 semi-trailer cab, with FAW Xichai 143 horsepower engine, Wanliang 5-speed with auxiliary 145 gearbox, 232 double-layer main beam with 3 layers on the periphery, 8.25R20 steel wire tire, 8-ton rear axle, with central locking, electric windows, remote key, power steering, clutch assistance, emergency brake, exhaust brake, vehicle dimensions: 78757476250023102800. It can be used for transporting 8-ton to 13-ton excavators and other equipment. Environmental list, one-time certificate, and operation compliance will be issued. The Dongfeng Furuca flatbed truck with a load capacity of 12 tons has a 1 bottom plate: the longitudinal beam is channel steel, the cross beam is 100100mm square tube, the tire above is an 8mm bent piece; the bottom plate is a 5mm patterned plate, with a transmission maintenance opening. The guardrail frame is 16# national standard channel steel; the tail is 6 8mm bent pieces arranged side by side.
The 12-ton heavy-duty flatbed truck of Dongfeng Furuca has 2 front side frames: The frame edges are made of 12# channel steel, the vertical supports are made of round tubes, and the outline lights are installed.

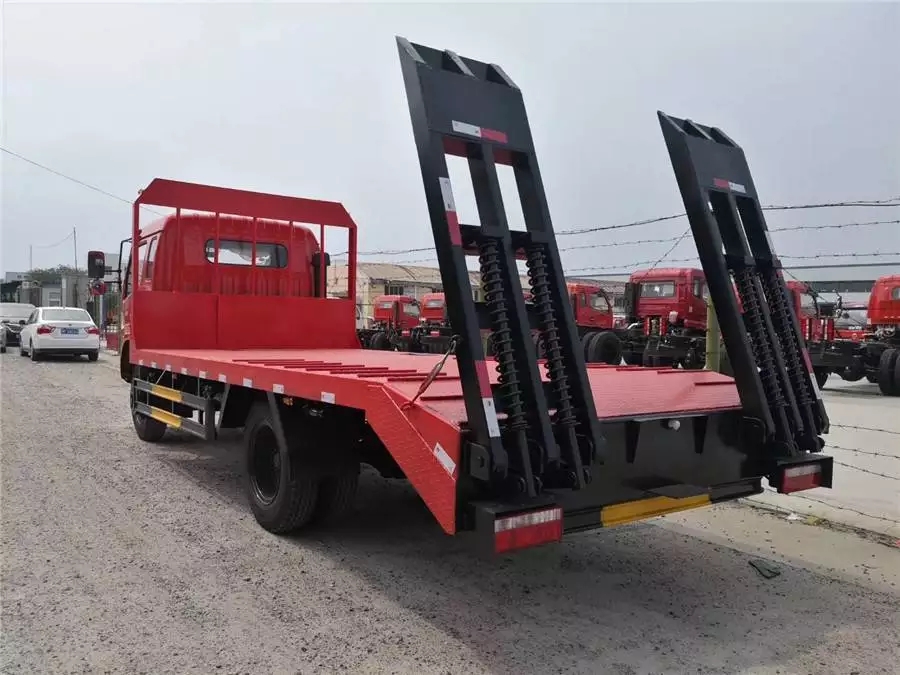

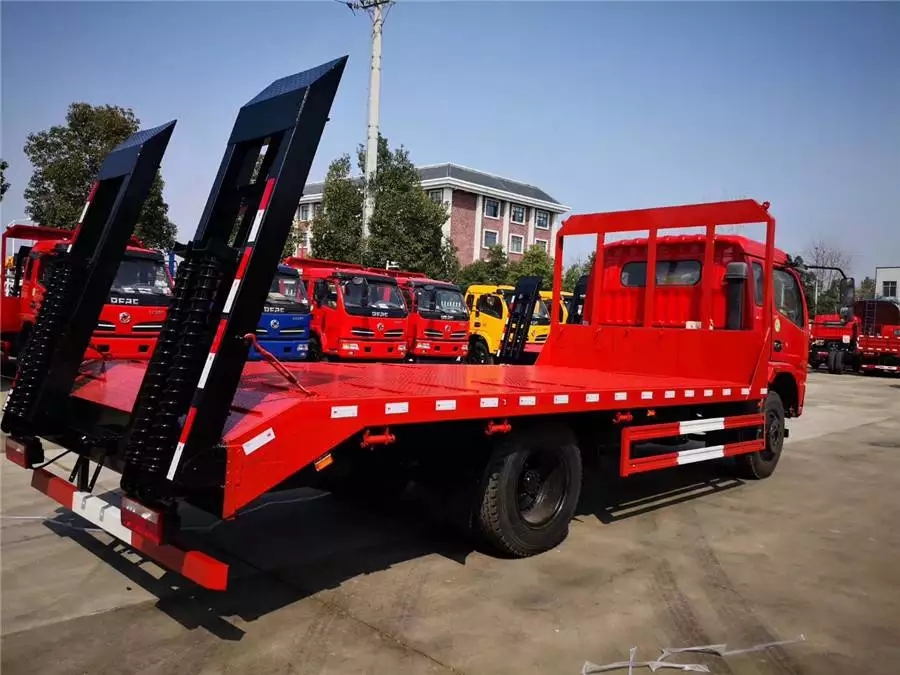

The 12-ton heavy-duty flatbed truck of Dongfeng Furuca has a 3-step ladder: The ladder points do not exceed the specified dimensions in the notice. The ladder is made of 60120*5mm square tubes, with a width of 600mm. The spacing between the steps is 600mm, and the distance from the lower surface of the rear plate to the ground is ≥ 540mm.
The Dongfeng Furuca heavy-duty 12-ton flatbed truck. Other items: The gantry frame is equipped with a welded advertising board. Each side guardrail has two square tubes. The areas where the gas and electricity pipelines come into contact with the metal should be protected with rubber or plastic pipes to prevent wear.
