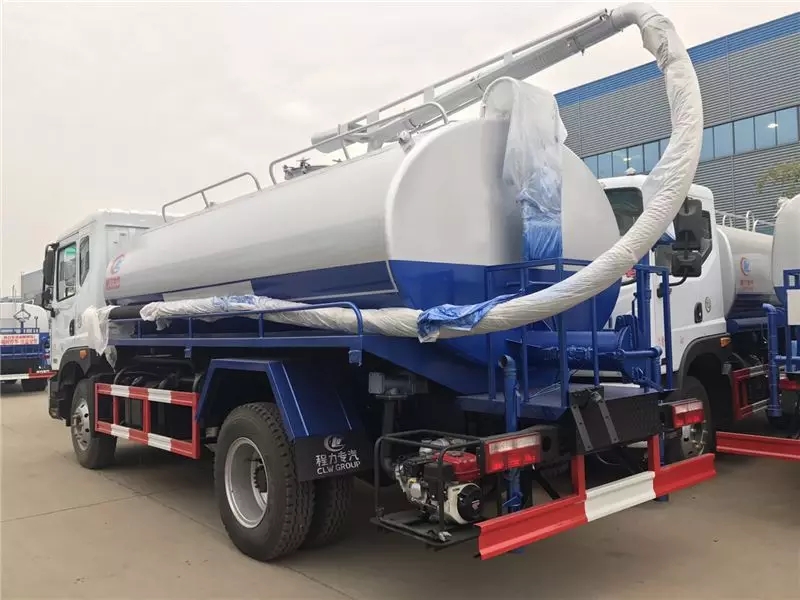

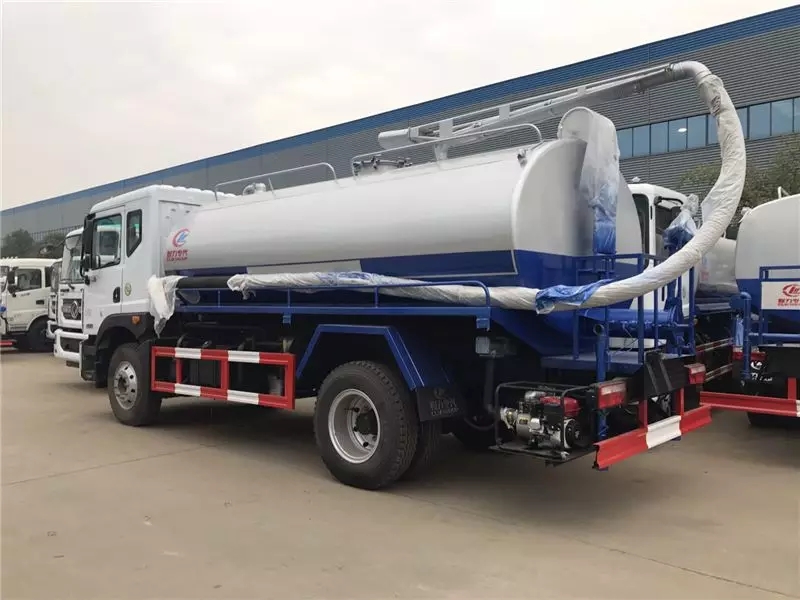

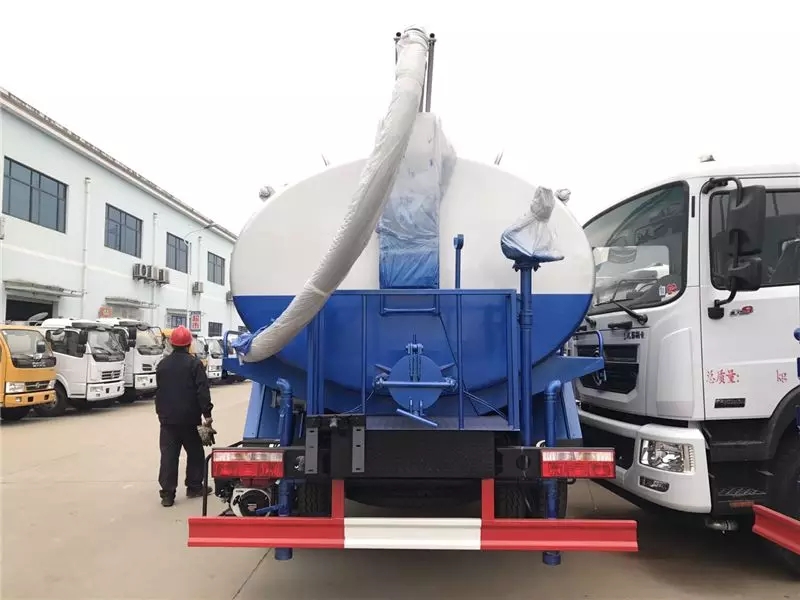

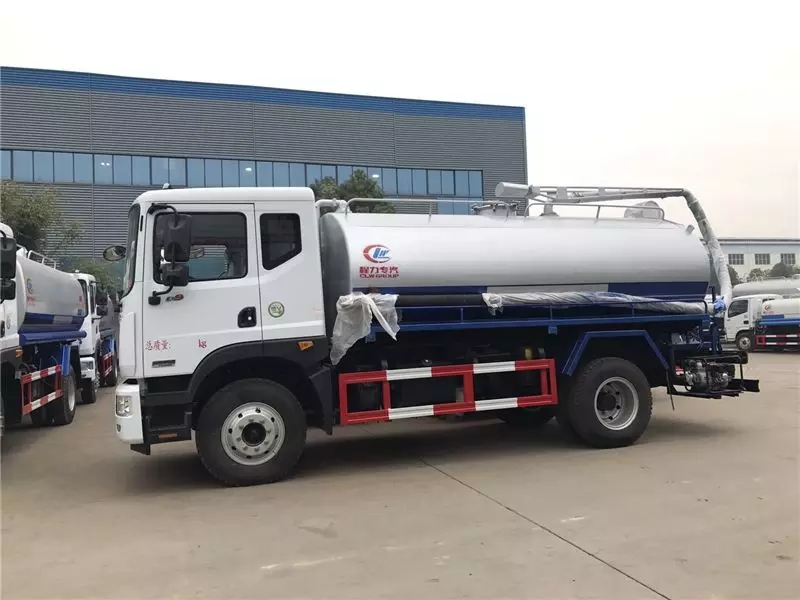

Dongfeng Doli Ka D9 semi-enclosed cab, Euro V Cummins ISB180 50 (6-cylinder) engine, 2315 cab, 250 frame, air braking, automatic transmission, clutch air assistance, air conditioning, electric windows, central locking, exhaust auxiliary braking, dryer, emergency brake, ABS, axle 3.9/8 tons, Dongfeng 6-speed gearbox, 900R20 steel wire tire, wheelbase: 3950mm, total weight 18 tons, effective volume about 12 cubic meters. Powerful engine, solid chassis, elegant appearance, comfortable driving and riding experience, large tank capacity.
Special equipment: Tank body, used for pumping out various fluids such as sewage, feces, oil, slurry, etc. The transportation medium is: fecal water and liquid pollutants, with a density of 800 kilograms per cubic meter. The effective volume of the tank body is 12.86 cubic meters. Wheelbase (mm) / Overall length (mm) / Tank body external dimensions (length × long axis × short axis) correspond to: 3950 / 7350 / 4400 × 2350 × 1600, 4500 / 7900 / 5000 × 2350 × 1550. Rear ring disc can be optionally installed. The driver’s cab can be selected as an option with the chassis. Protective material: Q235. Connection method: The left and right side protection and the rear lower protection all adopt welding connection. The cross-sectional size of the rear protection device (width × height) is 40 × 120 (mm), the ground clearance of the rear protection (mm): 430 (mm). ABS system manufacturer, model: Jiaozuo Borik Control Technology Co., Ltd., J ABS. Install a satellite positioning function-equipped driving recorder. Using only a chassis with an axle spacing of 3950 (mm) or 4500 (mm).
The sewage truck is equipped with an overflow prevention device to prevent the feces and sewage from overflowing back into the vacuum pump system when it is full. The tank is designed in a turtle-shell style, ensuring it does not deform. A dedicated vacuum sewage pump (Italian technology) is installed. The sewage discharge pipe can rotate 360 degrees. The discharge method can be either self-discharge or pressure discharge. A float level controller is installed, along with an electronic alarm device.
The sewage suction truck can suck and discharge by itself, making the process convenient. It features high vacuum degree and long suction distance, and can meet the needs of different users in various usage environments. The sewage suction truck can be equipped with a watering function according to customer requirements. The water and sewage tanks can be independently divided into compartments, allowing it to both suck sewage and spray water, serving two purposes with one vehicle.
